China KAVASS In-Ground Carbon Steel Bollard with Beveled Top | Factory Direct from China Suppliers | 2-Year Warranty Product, Factory

,

The KAVASS in-ground fixed bollard is expertly crafted for durable perimeter protection in bustling industrial settings. Constructed from high-quality Q235 carbon steel, this product features a dual-layer finish (E-coating + powder coating) that ensures superior resistance to corrosion and harsh outdoor conditions. As a trusted supplier and manufacturer based in China, we prioritize quality and longevity in our products.

,

Designed for below-ground installation, this bollard includes an integrated fixing bar at its base, enabling secure anchoring into concrete for optimal stability. Its standard beveled top not only enhances drainage but also contributes to a sleek, contemporary look. For varied project needs, optional flat or domed tops are available, ensuring versatility in design.

,

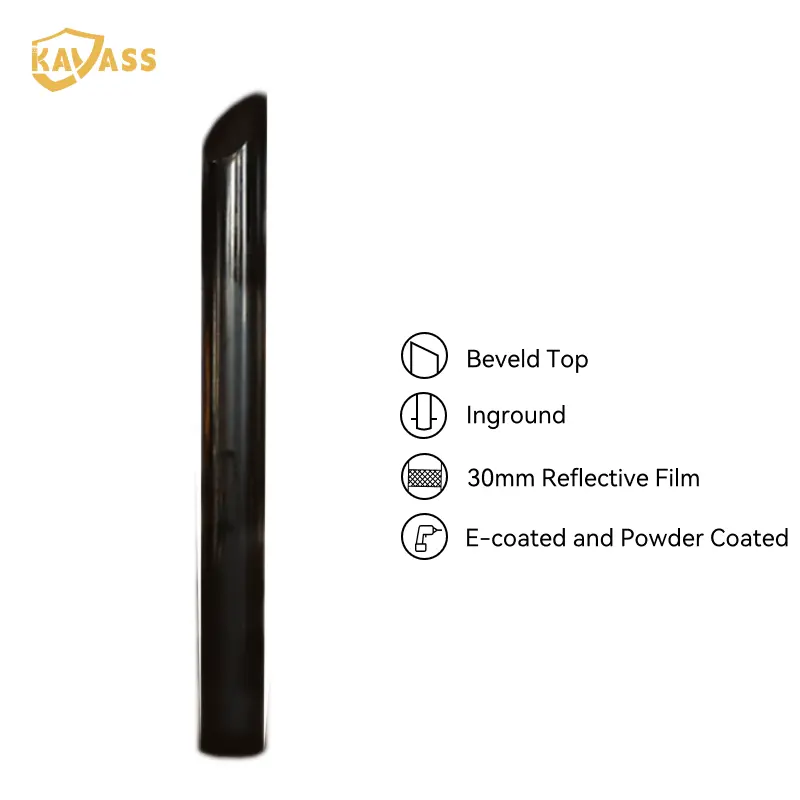

Key Features

,
    ,
  • In-Ground Installation – Secure embedded design for permanent fixation
  • ,
  • Q235 Steel Construction – Robust construction ensuring impact resistance
  • ,
  • Dual Surface Protection – E-coating and powder coating for lasting durability
  • ,
  • Beveled Top Design – Minimizes water accumulation while enhancing aesthetics
  • ,
  • Optional Top Styles – Choice of flat or domed top available
  • ,
  • Project Customization – Custom sizes, finishes, and branding options available
  • ,
,

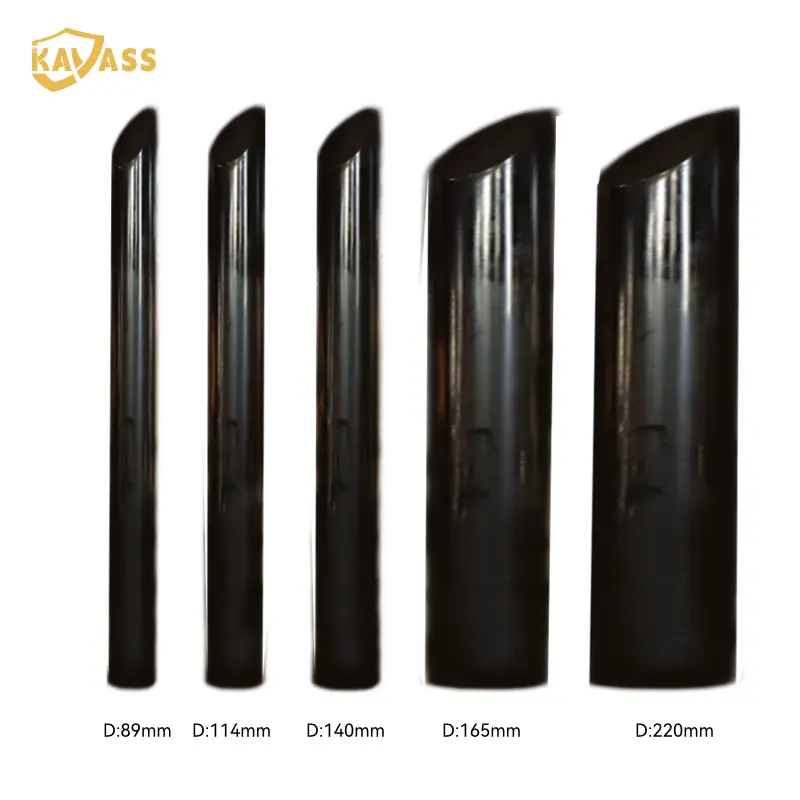

Product Description

Specification

Model Material Diameter (mm) Height (mm) Thickness (mm) Accessories
KVS-FB(I)-89.1200.3-0EP-B Q235 Steel 89 900+300 3 A fix bar in the bottom
KVS-FB(I)-114.1200.3-0EP-B Q235 Steel 114 900+300 3 A fix bar in the bottom
KVS-FB(I)-140.1200.3-0EP-B Q235 Steel 140 900+300 3 A fix bar in the bottom
KVS-FB(I)-165.1200.3-0EP-B Q235 Steel 165 900+300 3 A fix bar in the bottom
KVS-FB(I)-220.1200.3-0EP-B Q235 Steel 220 900+300 3 A fix bar in the bottom

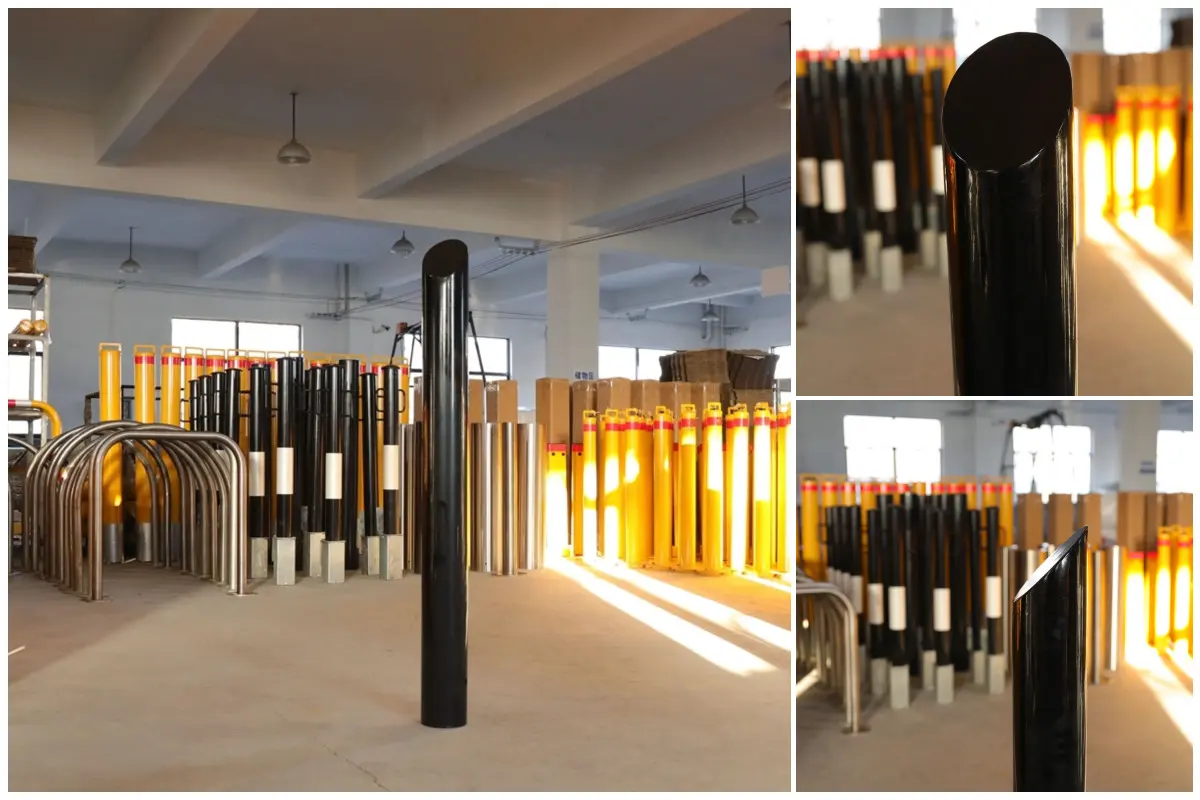

Detail Pictures

Total Parameter

Parameters of other In-ground fixed bollard
Diameter Height above ground Depth under ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized / E-coated and powder coated

Stainless steel: Satin polish
89mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 900mm 300mm 5mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat/Dome/Bevel
219mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel

Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Other Products

Frequently Asked Questions

Q What materials are available for the in-ground fixed bollard?
The bollard is available in Carbon steel (Q235 Steel), 304 Stainless Steel (304SS), and 316 Stainless Steel (316SS). Certain diameter sizes are exclusively available in carbon steel or stainless steel, so please refer to the Total Parameter table for specific options per size.
Q What finish options are available for carbon steel and stainless steel bollards?
For carbon steel bollards, the default finish is hot-dip galvanizing or E-coated combined with powder coating, which provides excellent corrosion resistance. For stainless steel bollards (304SS/316SS), the default finish is satin polishing, giving a clean and professional appearance.
Q What diameter sizes are available for the in-ground fixed bollard?
The bollards are available in a wide range of diameters: 89mm, 114mm, 140mm, 165mm, 168mm, 219mm, and 220mm, covering various application and load requirements. Each diameter can be paired with different wall thicknesses (3mm or 5mm) and heights.
Q What is the standard installation depth for these bollards?
The standard depth under ground for all in-ground fixed bollard models is 300mm. The height above ground is available in either 900mm or 1200mm depending on the model selected. The fix bar accessory at the bottom ensures secure anchoring during installation.
Q What head styles are available for the bollards?
Three head styles are available across all diameter and material options: Flat, Dome, and Bevel. The choice of head style can affect both the aesthetic appearance and functional performance of the bollard in different environments.
Q What accessories are included with the bollard, and can custom specifications be ordered?
Each bollard includes a fix bar in the bottom as a standard accessory to ensure stable in-ground installation. Custom specifications including diameter, height, wall thickness, material, head type, and finish can be discussed based on project requirements.
