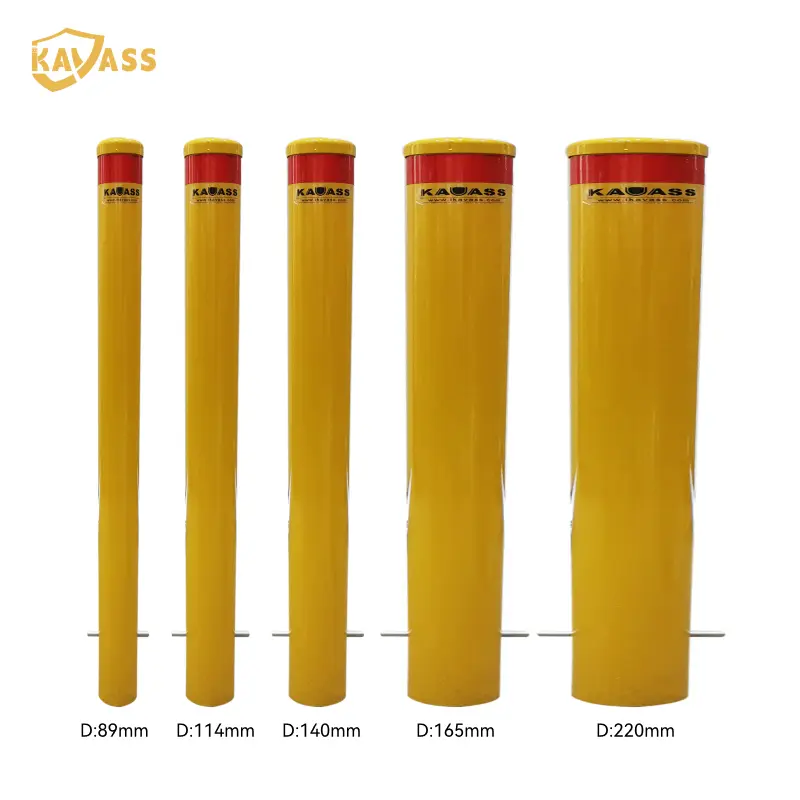

KAVASS embedded steel bollards, manufactured by leading China suppliers, offer a robust and reliable solution for vehicle control and site protection. Constructed from high-quality Q235 carbon steel, these bollards feature a dual-layer anti-corrosion system, ensuring durability for long-term outdoor use.

Designed for permanent installation, this model is cast directly into concrete, providing superior structural stability compared to surface-mounted options. The welded fixing bar at the bottom enhances the bond with the foundation, significantly minimizing any potential movement over time.

Available in a range of diameters, these bollards allow engineers and contractors to select the optimal level of protection to meet various project requirements. The standard flat top design maintains simplicity and functionality, and optional reflective features can be integrated to enhance visibility in traffic-prone areas.

Key Advantages

Cast-In Installation – Seamlessly integrated into concrete for elevated structural integrity
Multi-Diameter Selection – Versatile choices for different security levels
Anti-Corrosion Coating System – E-coating complemented by powder coating
Foundation Reinforcement Design – Enhanced anchoring strength with a bottom fixing bar

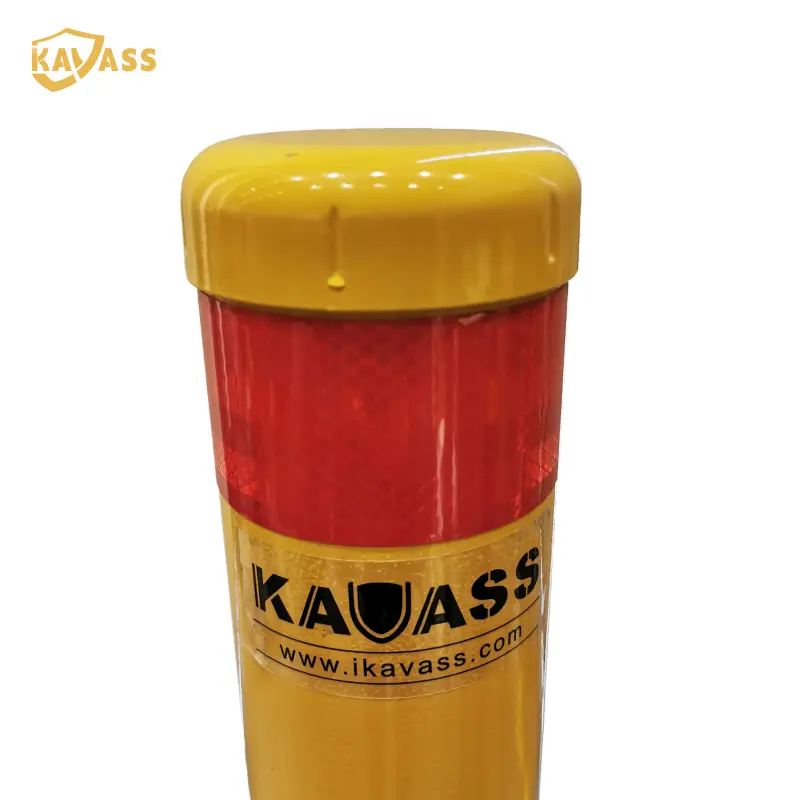

Visibility Upgrade Options – Available reflective strips or grooves for safety
Ready Stock Available – Quick dispatch for standard configurations from our factory

Send Inquiry

Product Description

📋

Specification

Model	Material	Diameter	Height	Thickness	Accessories
KVS-FB(I)-89.1200.3-0EP	Q235 Steel	89	900+300	3	A fix bar in the bottom
KVS-FB(I)-114.1200.3-0EP	Q235 Steel	114	900+300	3	A fix bar in the bottom
KVS-FB(I)-140.1200.3-0EP	Q235 Steel	140	900+300	3	A fix bar in the bottom
KVS-FB(I)-165.1200.3-0EP	Q235 Steel	165	900+300	3	A fix bar in the bottom
KVS-FB(I)-220.1200.3-0EP	Q235 Steel	220	900+300	3	A fix bar in the bottom

🖼️

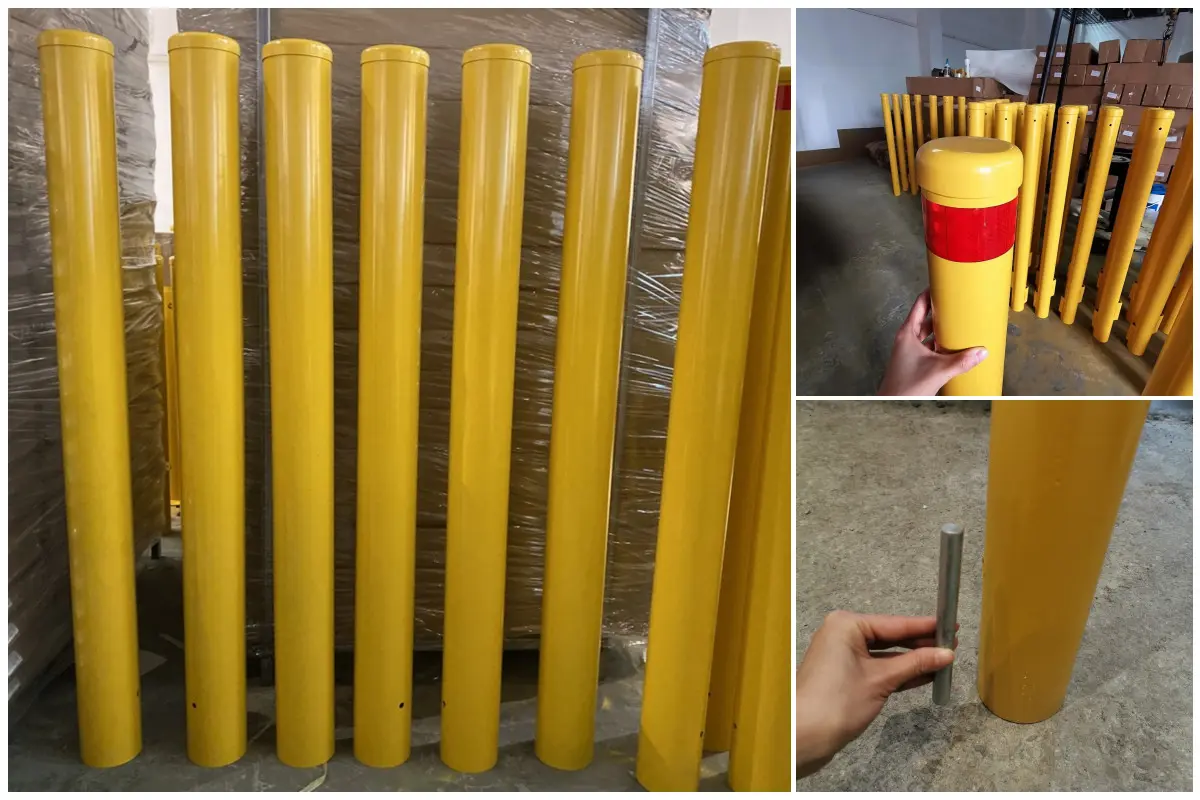

Detail Pictures

📐

Total Parameter

Parameters of other In-ground fixed bollard

Diameter	Height above ground	Depth under ground	Wall Thickness	Material	Head	Finish
89mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel	Carbon steel: Hot dip galvanized / E-coated and powder coated Stainless steel: Satin polish
89mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
165mm	900mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	900mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
219mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel

⚠️ Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

🏗️

Other Products

❓

Frequently Asked Questions

Q What materials are available for the in-ground fixed bollards?

The bollards are available in Carbon steel (Q235), 304 stainless steel, and 316 stainless steel. Carbon steel options are suitable for standard applications, while 304SS and 316SS provide superior corrosion resistance for outdoor or coastal environments.

Q What diameter sizes are available for the fixed bollards?

The bollards are available in multiple diameters including 89mm, 114mm, 140mm, 165mm, 168mm, 219mm, and 220mm, catering to a wide range of traffic management and security applications.

Q What finish options are offered for carbon steel and stainless steel bollards?

For carbon steel bollards, the standard finish is hot-dip galvanizing or E-coating combined with powder coating for enhanced durability and weather resistance. For stainless steel bollards, the default finish is satin polishing, which provides a clean, modern appearance.

Q What head styles are available for these bollards?

Three head styles are available: Flat, Dome, and Bevel. Each style offers a different aesthetic and functional profile to suit various installation environments and design requirements.

Q How deep do the in-ground fixed bollards need to be installed underground?

All standard models require a depth of 300mm below ground level. This underground depth ensures a stable and secure installation, providing reliable performance for traffic control and perimeter protection.

Q What accessories are included with the KVS-FB(I) series bollards?

The KVS-FB(I) series bollards come with a fix bar in the bottom as a standard accessory. This fix bar ensures a secure in-ground installation and adds structural stability to the bollard post during and after installation.
