China KAVASS Surface Mounted Disability Access Bollard - Custom Sizes, High-Visibility Yellow, China Suppliers & Factory Manufacturer, Suppliers

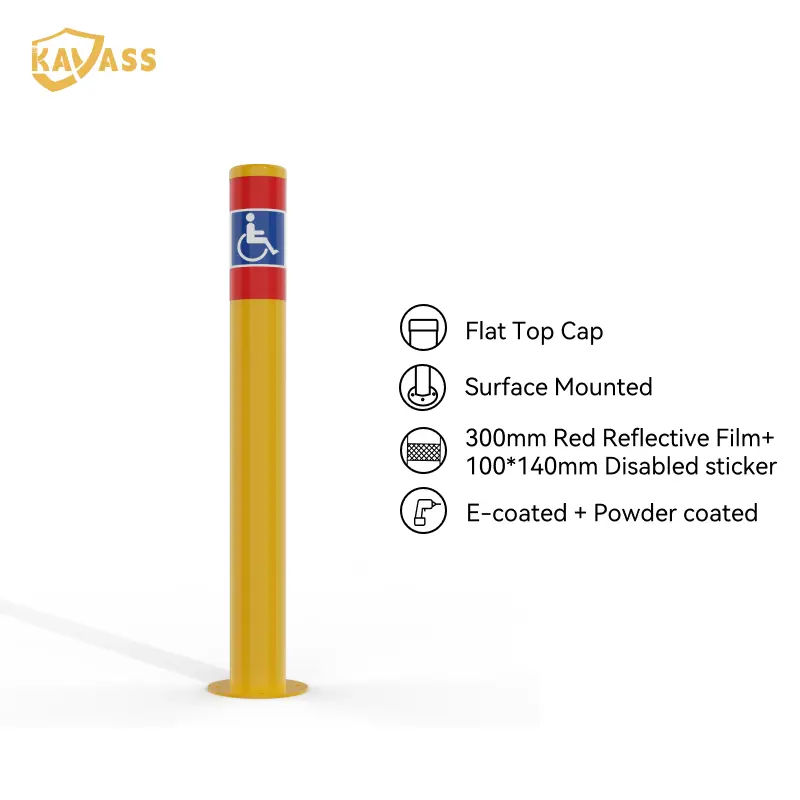

Introducing the KAVASS surface-mounted bollards, expertly engineered in China by leading suppliers. These bollards are specifically crafted for designated disability parking zones, ensuring maximum visibility and safety. Featuring a vibrant yellow body complemented by a red warning band and the internationally recognized wheelchair symbol, they stand out in parking lots, hospitals, shopping centers, government buildings, and other public facilities, Key features include:, - Available in multiple diameters: Ø89 / 114 / 140mm, - High-visibility design with yellow body, red band, and blue/white wheelchair symbol, - Constructed from Q235 carbon steel, E-coated, and powder-coated for superior corrosion resistance, backed by a 2-year warranty, - Standard flat top with a round base plate, designed for secure installation, - Optional enhancements include reflective film and grooves for improved night visibility, - OEM customization options available with a swift 30-day lead time, making them ideal for ADA-compliant projects, Choose KAVASS for high-quality, durable bollards manufactured in China, designed to meet the needs of various environments while providing essential safety features

Product Description

Specification

Model Material Diameter (mm) Height (mm) Thickness (mm) Size of Base Plate
KVS-FB(S)-89.900.3-0EP Q235 Steel 89 900 3 ∅225*T8
KVS-FFB-114.1200.3-0EP Q235 Steel 114 1200 3 ∅250*T8
KVS-FFB-140.1300.3-0EP Q235 Steel 140 1300 3 ∅250*T8
📷

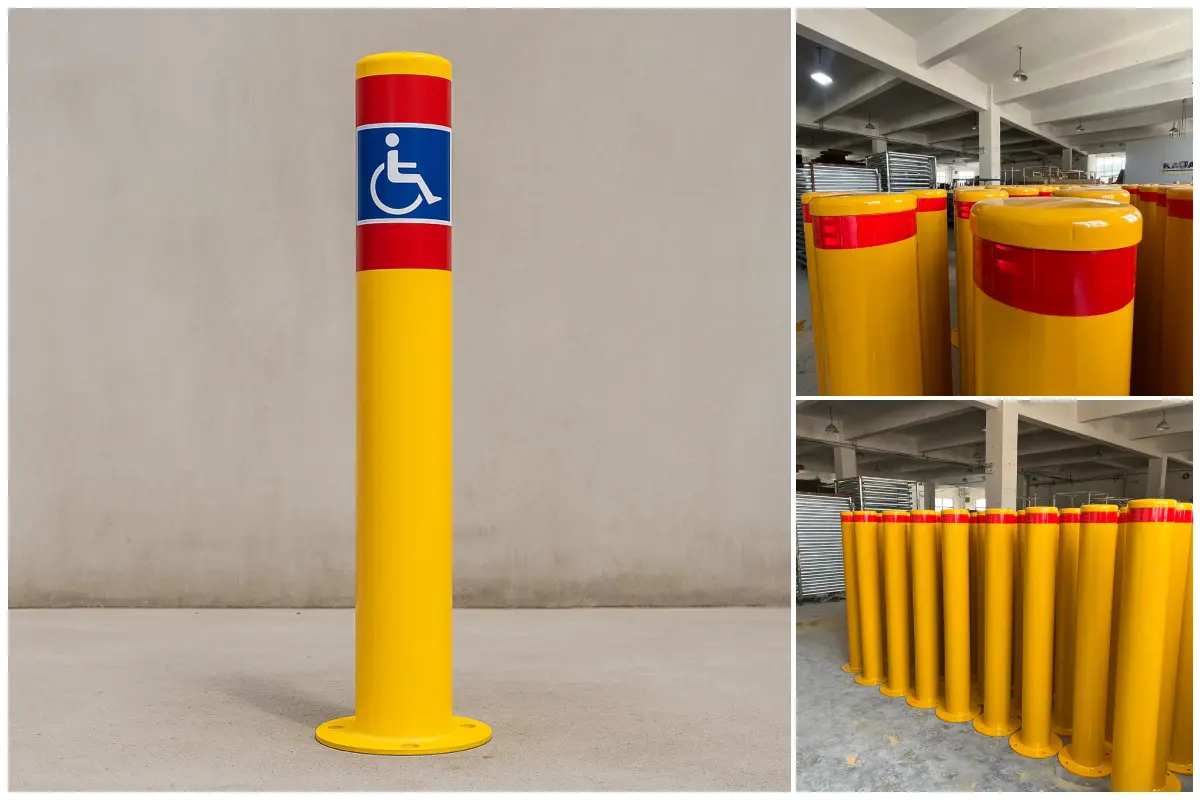

Detail Pictures

Detail Pictures of Surface Mounted Fixed Bollard
📋

Total Parameter

Parameters of other Surface Mounted Fixed Bollard
Diameter Height Wall Thickness Base Plate Size Mounting Hole Material Head Finish
89mm 900mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized / E-coated and powder coated

Stainless steel: Satin polish
89mm 1200mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 900mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
219mm 900mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, carbon steel is defaulted to hot-dip galvanizing or E-coated + powder coating; stainless steel is defaulted to satin polishing.
📦

Other Products

Other Security Bollard Products

Frequently Asked Questions

Q What materials are available for the surface mounted fixed bollards?
The bollards are available in Carbon Steel (Q235), 304 Stainless Steel, and 316 Stainless Steel. Carbon steel options are suitable for most general applications, while 304SS and 316SS offer superior corrosion resistance for outdoor or marine environments.
Q What finish options are available for these bollards?
For carbon steel bollards, the default finish is hot-dip galvanizing or E-coated combined with powder coating. For stainless steel bollards, the default finish is satin polishing. Custom finishes may be available upon request.
Q What head styles are available for the bollards?
All bollard models are available with three head style options: Flat, Dome, and Bevel. You can select the style that best suits your architectural or functional requirements.
Q What diameter and height combinations are offered?
Bollards are available in diameters ranging from 89mm to 219mm, with standard heights of 900mm and 1200mm. Wall thickness options include 3mm and 5mm depending on the model and application requirements.
Q How are these bollards installed?
These are surface mounted fixed bollards installed via a base plate that is anchored to the ground surface. All models use a standard 4×Φ16mm mounting hole pattern on the base plate, making installation straightforward on concrete or paved surfaces.
Q Can the bollard dimensions or specifications be customized?
Yes, custom specifications including diameter, height, wall thickness, base plate size, material, and finish can typically be arranged to suit your specific project requirements.
