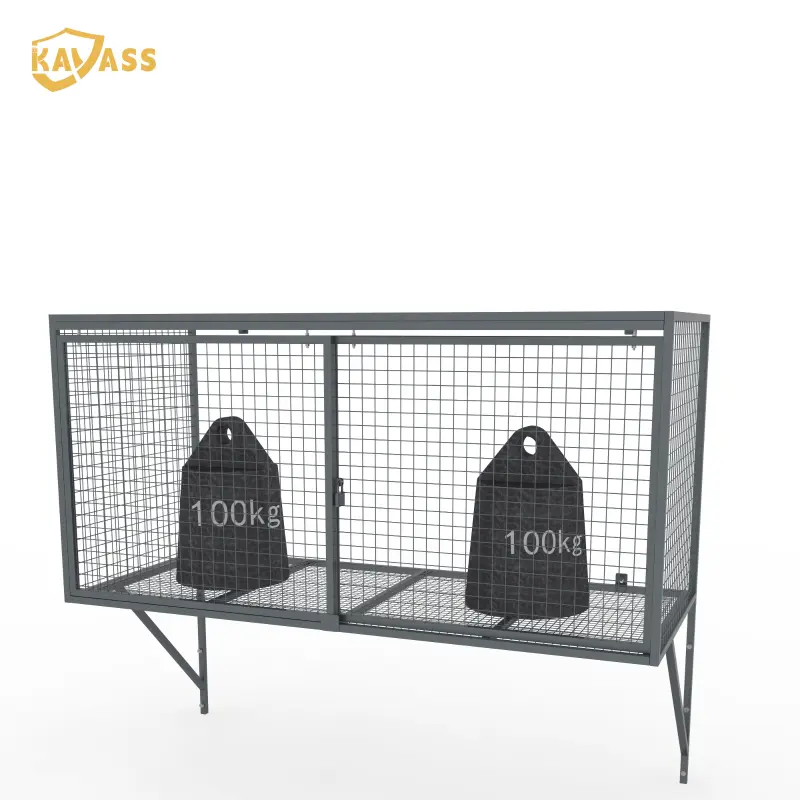

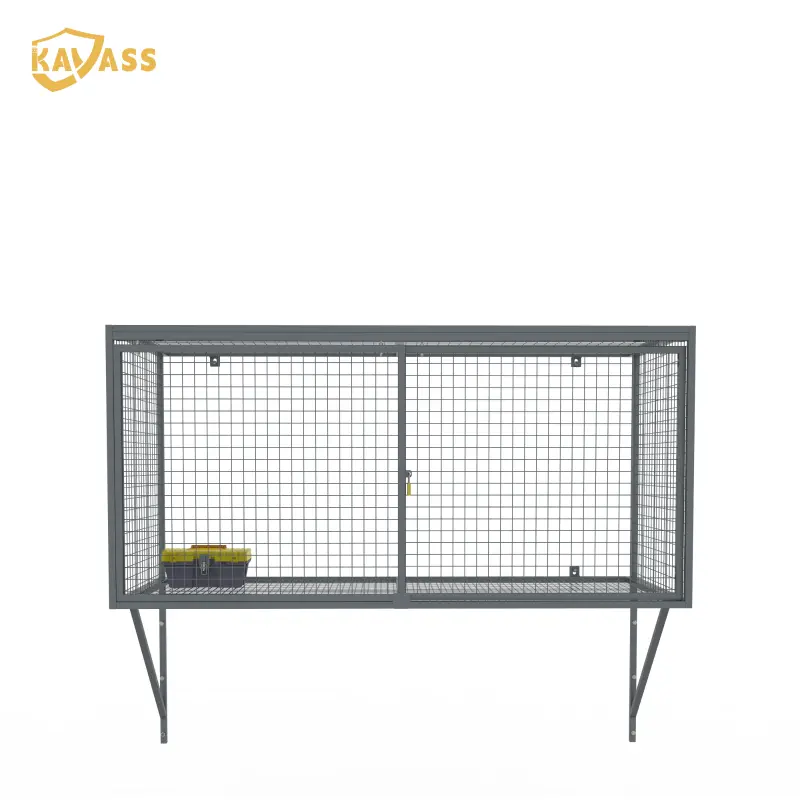

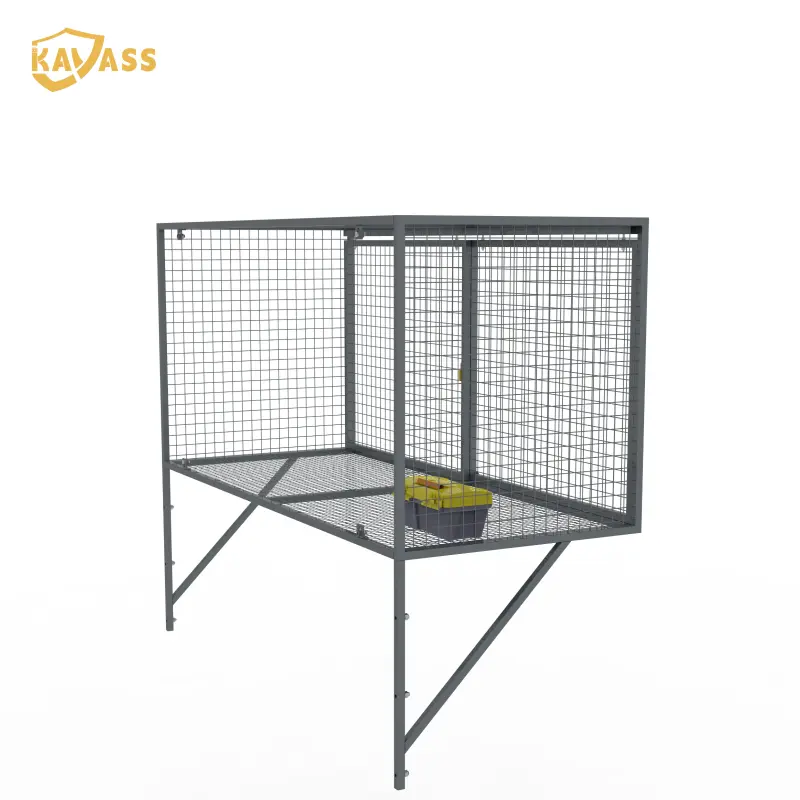

China KAVASS Wall-Mounted Mesh Locker – 200kg Capacity, Sliding Door, Custom Dimensions Manufacturer, Supplier

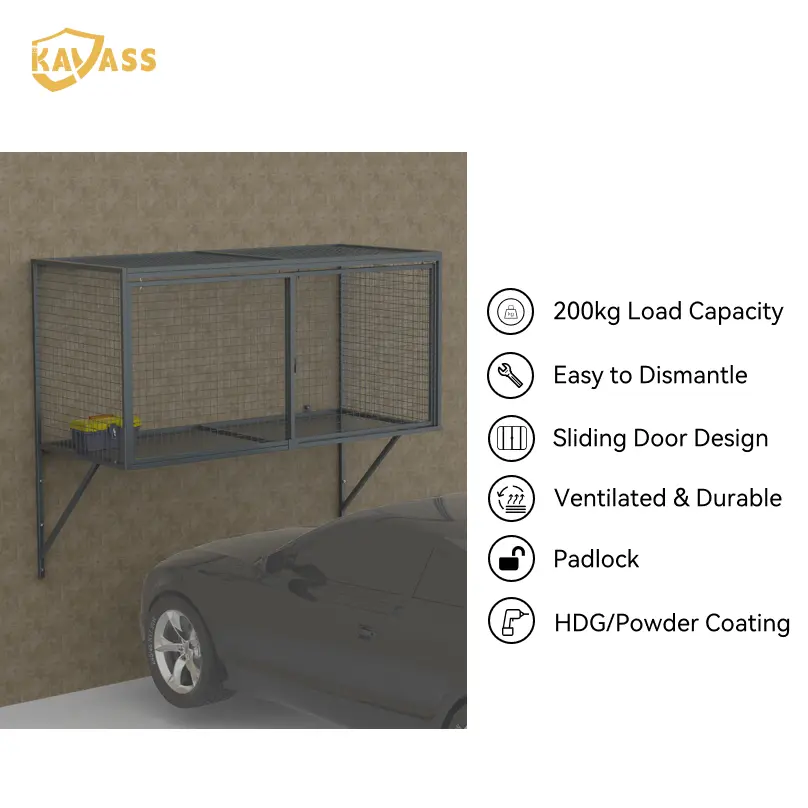

Maximize unused wall space with the KAVASS Wall-Mounted Mesh Locker—designed to deliver 200kg of secure, ventilated storage without occupying floor area. Featuring a robust sliding door and industrial-grade mesh, it’s built for durability and daily use in demanding environments.

  • 200kg load capacity: Reinforced frame with 40×40×1.4mm square tubing ensures long-term structural integrity
  • Fully customizable dimensions: Adjust width, height, and depth to fit your wall layout or storage requirements
  • Space-saving sliding door: Eliminates swing clearance—ideal for narrow aisles or high-density installations
  • All-around ventilation: 50×50mm mesh (φ3.2mm wire) prevents moisture buildup and allows visual inventory checks
  • Industrial-grade finish: Choose hot-dip galvanized or powder-coated for superior corrosion resistance
  • Padlock-ready security: Integrated hasp for reliable theft deterrence
  • 8 RAL color options: Including standard anthracite grey (RAL7016)
  • Modular & easy to dismantle: Quick assembly and reconfiguration for evolving project needs

Product Description

Specification

Model Load Capacity Square Tube Frame Mesh Size Wire Diameter Dimensions
KVS-WMML-40.2000.3.2-0P 200kgs 40*40*T1.4 50*50 ⌀3.2 Custom sizes available

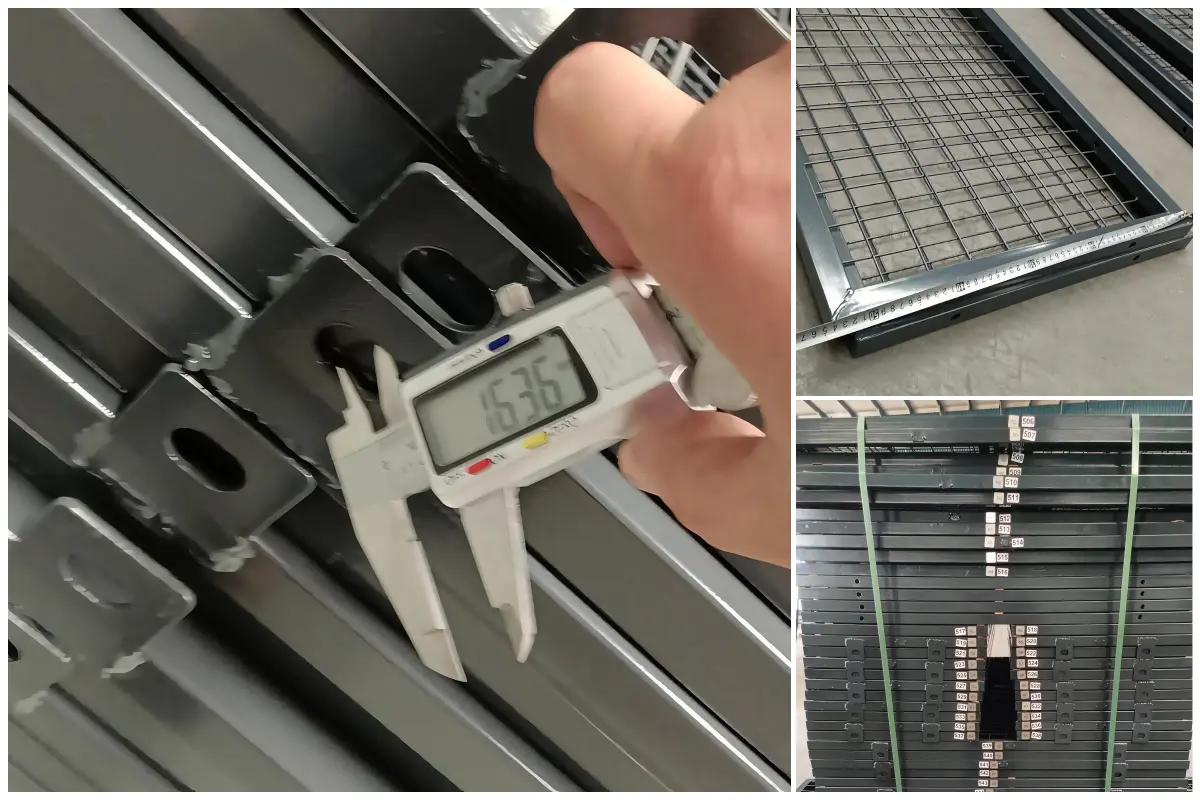

Detail Pictures

Related Products

Frequently Asked Questions

1. What is the load capacity of the KVS-WMML-40.2000.3.2-0P model?

The load capacity of this specific model is 200kgs, making it suitable for a wide range of light to medium duty industrial applications.

2. Are there custom sizes available for this model?

Yes, custom sizes are fully available to suit your specific warehouse racking configurations and requirements.

3. What are the tube frame and wire diameter specifications?

This model features a square tube frame of 40*40*T1.4 and a wire diameter of ⌀3.2, ensuring structural durability and stability.

4. What is the standard mesh size of this product?

The standard mesh dimensions are 50*50, providing an optimal balance of strength, ventilation, and product support.

5. How can I request a quote or custom specifications?

You can contact us directly through the website inquiry form with your detailed dimensions and load capacity requirements.
