Custom KAVASS China Suppliers Auto In-Ground Keylock Removable Bollard Factory - Secure, Concealed with Handle Supplier, Product

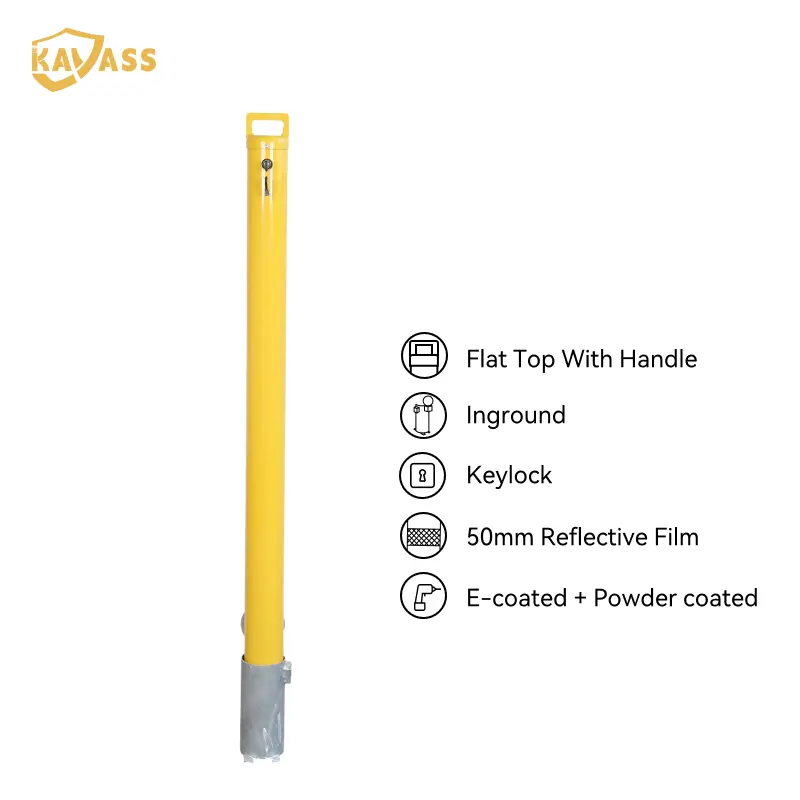

Introducing the KAVASS Auto In-Ground Removable Bollard, a premier solution for securing your property. Crafted by trusted China suppliers, this bollard is made from high-strength Q235 carbon steel, ensuring durability and longevity. The advanced E-coating and powder coating finish come with a 2-year warranty, providing excellent corrosion protection, This bollard features a key-lock mechanism for secure and controlled operation, making it ideal for various applications such as parking lots, residential gates, and construction zones. Its innovative design allows it to be embedded in the ground, remaining concealed when not in use and easily raised when needed, With a flat cap and top handle, this bollard is simple to move, providing convenience without sacrificing security. Pre-installed metal sleeves facilitate easy in-ground installation. Plus, it includes a reflective film that is 50mm wide for enhanced visibility, Choose KAVASS as your reliable factory for high-quality removable bollards that meet your security needs

Product Description

Specification

Model Material Diameter (mm) Height (mm) Thickness (mm) Size of Embedded Part
KVS-REB(AIK)-89.960.3-0EP Q235 Steel 89 960 3 ∅102*H230*T4
KVS-REB(AIK)-140.1200.3-0EP Q235 Steel 140 1200 3 ∅152*H265*T4

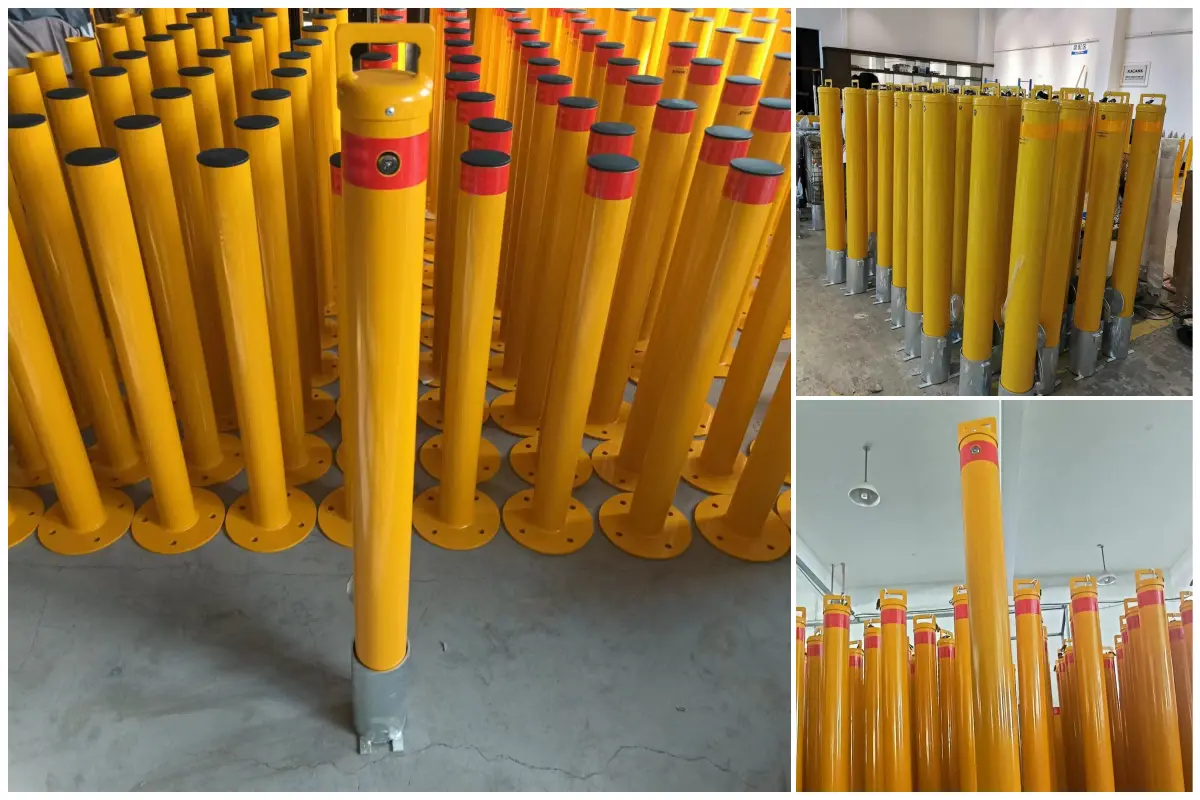

Detail Pictures

Detail Pictures

Total Parameter

Parameters of other Surface Mounted Removable Bollards
Diameter Height Wall Thickness Material Lock Type Finish
89mm 960mm 3mm Carbon steel/304SS/316SS Keylock Rotate Carbon steel: E-coated and powder coated
Stainless steel: Satin polish
89mm 1140mm 3mm Carbon steel/304SS/316SS Keylock Rotate
140mm 960mm 3mm Carbon steel/304SS/316SS Keylock Rotate
140mm 1140mm 3mm Carbon steel/304SS/316SS Keylock Rotate
89mm 960mm 3mm Carbon steel/304SS/316SS Pad/Keylock Slide
89mm 1140mm 3mm Carbon steel/304SS/316SS Pad/Keylock Slide
140mm 960mm 3mm Carbon steel/304SS/316SS Pad/Keylock Slide
140mm 1140mm 3mm Carbon steel/304SS/319SS Pad/Keylock Slide

Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

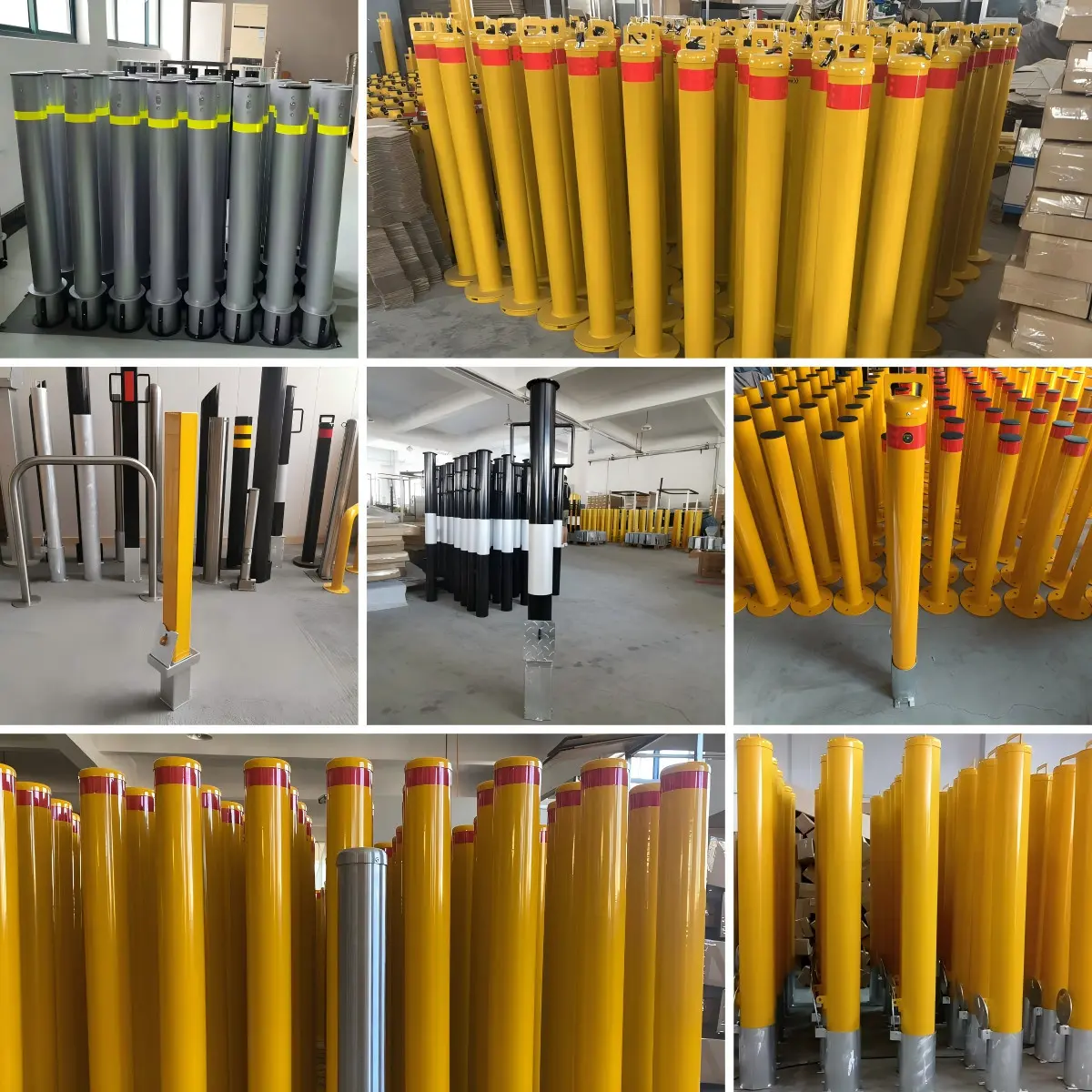

Other Products

other product

Frequently Asked Questions

Q What materials are available for the surface mounted removable bollard?
A The bollard is available in Carbon Steel (Q235), 304 Stainless Steel, and 316 Stainless Steel, allowing you to choose the best option based on your environment and corrosion resistance requirements.
Q What diameter and height options are available for this bollard?
A The bollard is available in two diameter options — 89mm and 140mm — and two height options — 960mm and 1140mm. All models feature a 3mm wall thickness for reliable durability.
Q What locking mechanisms are supported?
A The bollard supports two locking options: Keylock only, or a combined Pad/Keylock system. Both options are available across all diameter and height configurations for flexible security control.
Q What is the difference between the Rotate type and Slide type bollard?
A The Rotate type bollard is removed by rotating it out of the embedded sleeve, while the Slide type is removed by sliding it straight up. Both types are surface mounted and compatible with the same embedded part dimensions.
Q What surface finish options are available, and what is the default finish?
A For carbon steel bollards, the default finish is hot-dip galvanizing or E-coated plus powder coating. For stainless steel bollards, the default finish is satin polishing, providing a clean and professional appearance.
Q What are the dimensions of the embedded part for each bollard model?
A For the 89mm diameter model (KVS-REB(AIK)-89.960.3-0EP), the embedded part size is ∅102×H230×T4mm. For the 140mm diameter model (KVS-REB(AIK)-140.1200.3-0EP), the embedded part size is ∅152×H265×T4mm.
