Custom KAVASS China Factory Fixed Bollard – In-Ground Stainless Steel, 304/316 SS, Durable Design from Reliable Suppliers Products, Factories

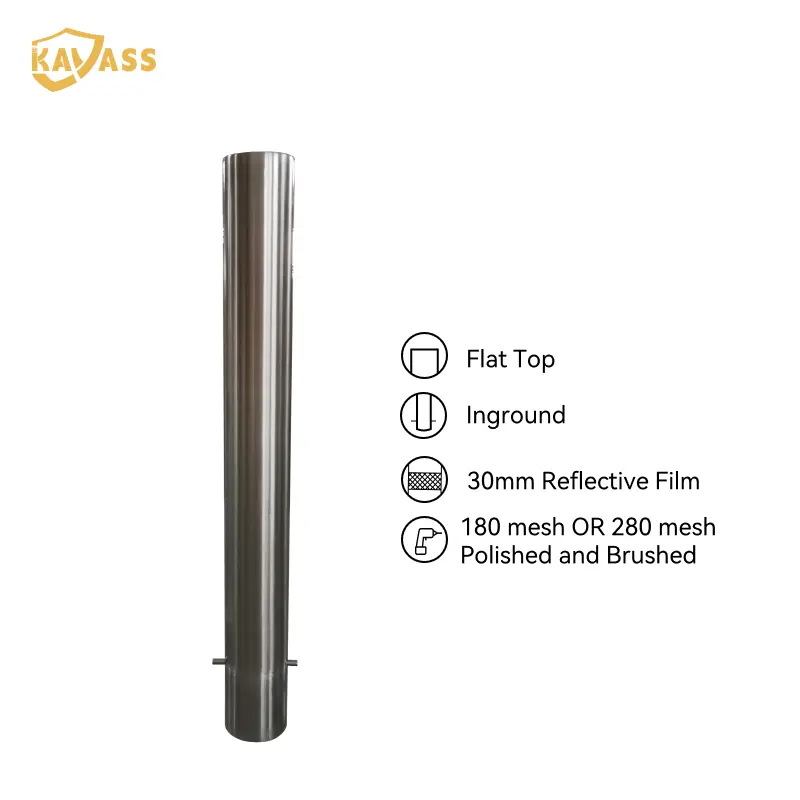

Introducing the KAVASS in-ground fixed bollard, expertly crafted from premium 304 or 316 stainless steel, ensuring exceptional durability and longevity. Designed with a sleek flat top, this bollard features a secure fixing bar at its base, making it perfect for concrete installation in various settings, including commercial buildings, airports, and urban infrastructure, Key Features:, - **Material**: Available in 304 or 316 stainless steel, offering superior corrosion resistance, - **Surface Finish**: High-end polished or brushed surface treatment with a 180-280 mesh for an attractive appearance, - **Design**: Standard flat cap top with an optional weldable variant for versatile applications, - **Installation**: Equipped with a fixing bar designed for seamless concrete pouring, - **Customization**: Tailored sizes available to meet specific project requirements, As a leading factory and supplier in China, KAVASS is dedicated to delivering high-quality products that enhance safety and aesthetics in urban spaces. Upgrade your infrastructure with our reliable and stylish bollards today!

Product Description

Specification

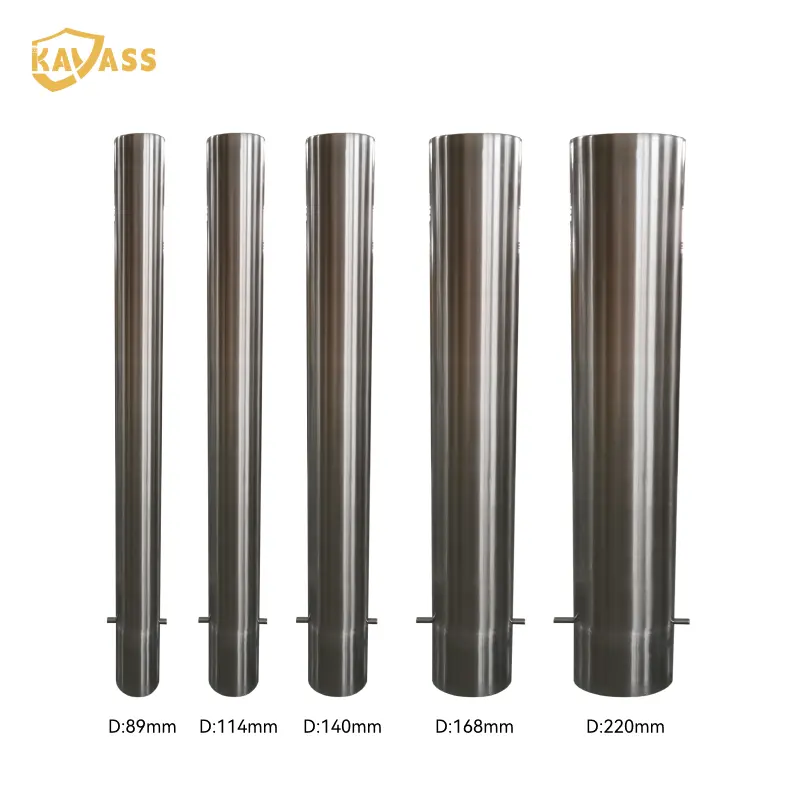

Model Material Diameter Height Thickness Accessories
KVS-FB(I)-89.1200.3-6 304SS/316SS 89 900+300 3 A fix bar in the bottom
KVS-FB(I)-114.1200.3-6 304SS/316SS 114 900+300 3 A fix bar in the bottom
KVS-FB(I)-140.1200.3-6 304SS/316SS 140 900+300 3 A fix bar in the bottom
KVS-FB(I)-168.1200.3-6 304SS/316SS 168 900+300 3 A fix bar in the bottom
KVS-FB(I)-220.1200.3-6 304SS/316SS 220 900+300 3 A fix bar in the bottom

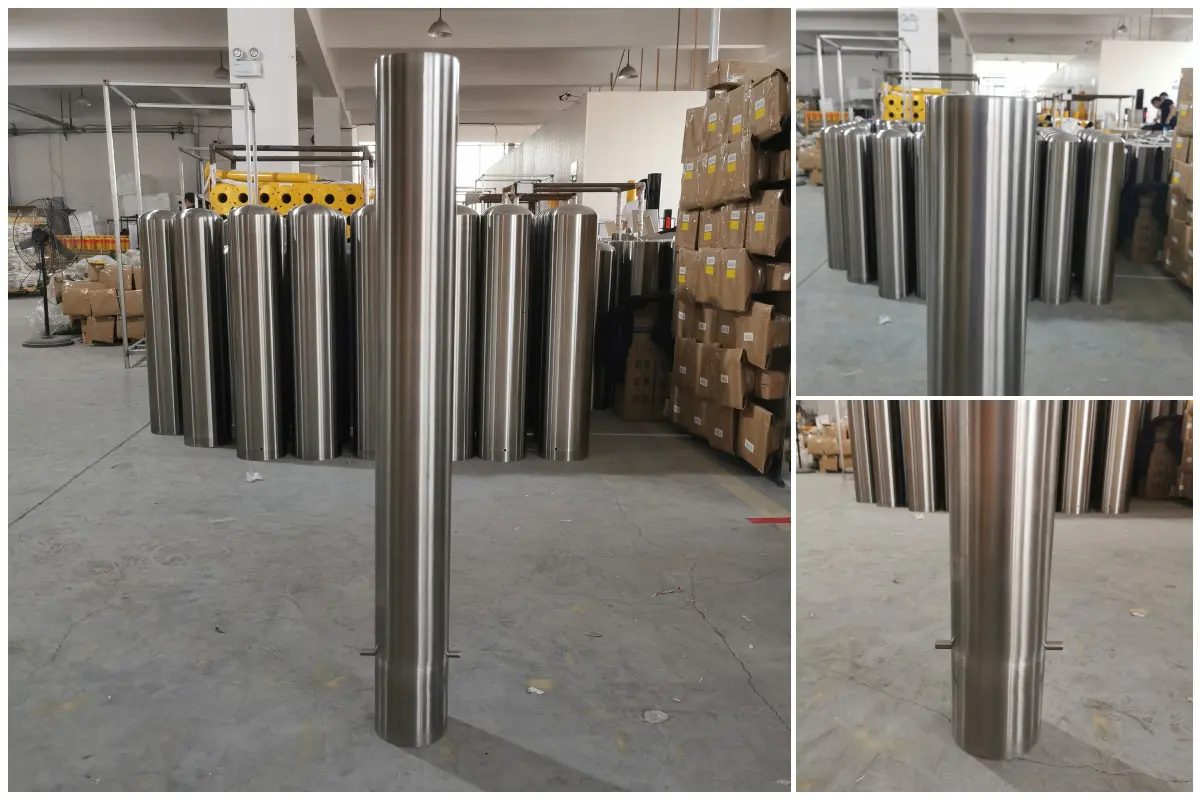

Detail Pictures

Detail Pictures

Total Parameter

Parameters of other In-ground fixed bollard

Diameter Height above ground Depth under ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized / E-coated and powder coated
Stainless steel: Satin polish
89mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 900mm 300mm 5mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat/Dome/Bevel
219mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Other Products

other product

Frequently Asked Questions

  • Q What materials are available for the in-ground fixed bollards?
    The in-ground fixed bollards are available in Carbon steel (Q235), 304 stainless steel, and 316 stainless steel. Carbon steel models are typically finished with hot-dip galvanizing or E-coating plus powder coating, while stainless steel models feature a satin polish finish.
  • Q What diameter sizes are available for these bollards?
    The bollards are available in a wide range of diameters including 89mm, 114mm, 140mm, 165mm, 168mm, 219mm, and 220mm, catering to various installation requirements and load demands.
  • Q What is the standard installation depth for in-ground fixed bollards?
    The standard depth under ground for all listed models is 300mm. The above-ground height options are typically 900mm or 1200mm, providing a combined total installation height of 1200mm or 1500mm respectively.
  • Q What head styles are available for these bollards?
    Three head styles are available: Flat, Dome, and Bevel. Each style offers a different aesthetic finish and can be selected based on the design requirements of your project.
  • Q What wall thickness options are offered?
    Wall thickness options of 3mm and 5mm are available depending on the model and diameter selected. Thicker walls (5mm) provide enhanced strength and durability for high-traffic or heavy-duty applications.
  • Q What accessories come with the KVS-FB(I) series bollards?
    All KVS-FB(I) series models come with a fix bar in the bottom as a standard accessory. This fix bar ensures secure and stable in-ground installation, preventing movement or displacement once embedded.
