Custom KAVASS In-Ground Fixed Bollard with Conical Top Cap | China Suppliers & Factory Direct OEM Available Suppliers, Products

1 / 4

Custom KAVASS In-Ground Fixed Bollard with Conical Top Cap | China Suppliers & Factory Direct OEM Available Suppliers, Products

Discover high-quality in-ground fixed bollards manufactured in-house by KAVASS, a leading factory and supplier in China specializing in bollard production since 2010. This robust bollard features a stylish conical top cap that facilitates optimal drainage and minimizes dust buildup. Constructed with Q235 carbon steel, it is designed for maximum impact resistance and durability. The E-coating plus powder coating finish guarantees long-lasting performance, making it ideal for various applications, including parking lots, industrial sites, and municipal security zones.

Available in multiple diameters: Ø89 / 114 / 140 / 165 / 220mm
Standard height: 900mm above ground + 300mm below ground (total height 1200mm)
Material: High-strength Q235 carbon steel for superior impact resistance
Surface treatment: E-coated and powder coated, backed by a 2-year warranty
Top design: Conical top cap for improved water runoff and easy maintenance
Installation: Features a fixing bar at the base for concrete pour, ensuring permanent and secure placement
Factory direct supply: As a reliable supplier in China, we cut out the middlemen, offering OEM/ODM support and competitive bulk pricing

Send Inquiry

Product Description

Specification

Model	Material	Diameter	Height	Thickness	Accessories
KVS-FB(I)-89.1200.3-0EP	Q235 Steel	89	900+300	3	A fix bar in the bottom
KVS-FB(I)-114.1200.3-0EP	Q235 Steel	114	900+300	3	A fix bar in the bottom
KVS-FB(I)-140.1200.3-0EP	Q235 Steel	140	900+300	3	A fix bar in the bottom
KVS-FB(I)-165.1200.3-0EP	Q235 Steel	165	900+300	3	A fix bar in the bottom
KVS-FB(I)-220.1200.3-0EP	Q235 Steel	220	900+300	3	A fix bar in the bottom

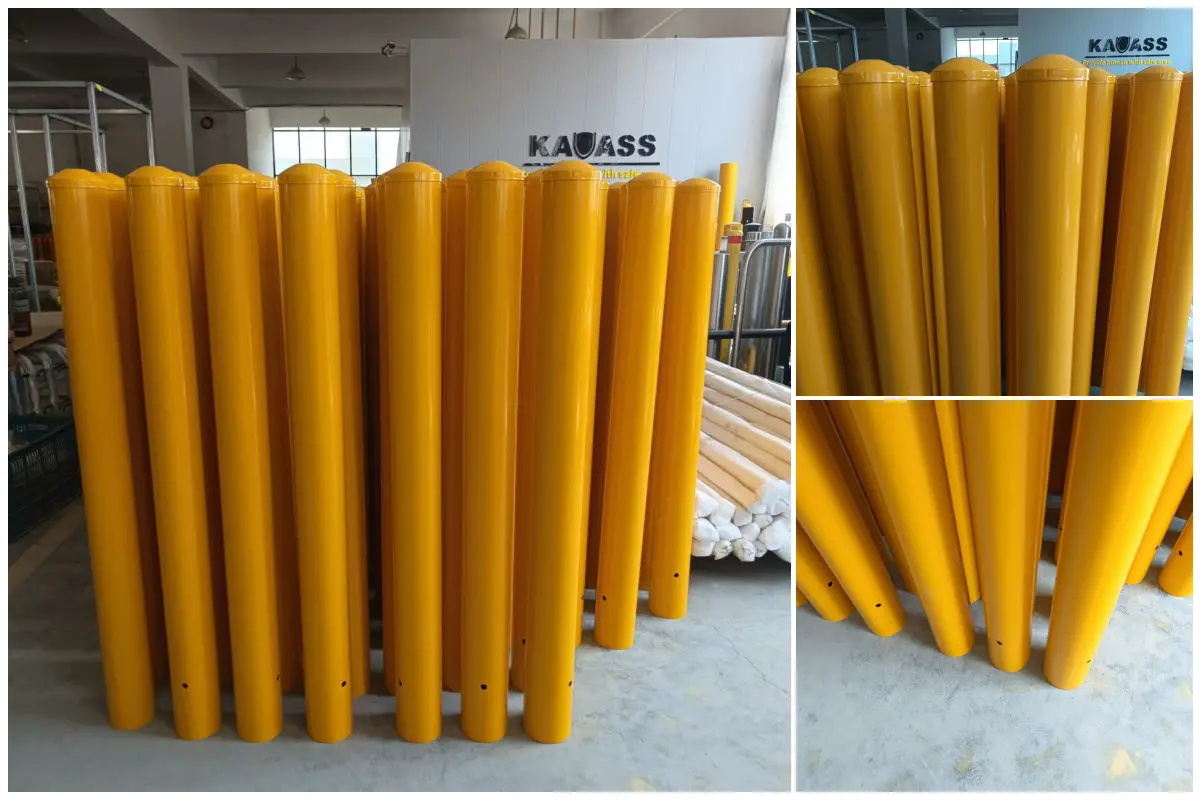

Detail Pictures

Total Parameter

Parameters of other In-ground fixed bollard

Diameter	Height Above Ground	Depth Under Ground	Wall Thickness	Material	Head	Finish
89mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel	Carbon steel: Hot dip galvanized / E-coated and powder coated Stainless steel: Satin polish
89mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
165mm	900mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	900mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
219mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel

Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Other Products

Frequently Asked Questions

Q What diameter sizes are available for the in-ground fixed bollard?

A The in-ground fixed bollard is available in a wide range of diameters including 89mm, 114mm, 140mm, 165mm, 168mm, 219mm, and 220mm, allowing you to choose the most suitable size for your specific application and site requirements.

Q What materials are the bollards made from?

A The bollards are available in Carbon Steel (defaulted to Q235 Steel), 304 Stainless Steel, and 316 Stainless Steel. The material choice depends on the environmental conditions and durability requirements of your installation site.

Q What finish options are available for the bollards?

A For carbon steel bollards, the default finish is hot-dip galvanizing or E-coated plus powder coating, which provides excellent corrosion resistance. For stainless steel bollards, the default finish is satin polishing, offering a clean and professional appearance.

Q What are the standard height and underground depth dimensions?

A The bollards are available in two standard above-ground heights: 900mm and 1200mm. The underground depth is standardized at 300mm across all models, ensuring a stable and secure in-ground installation.

Q What head styles are available for the bollards?

A Three head styles are available: Flat, Dome, and Bevel. Each style offers a different aesthetic profile and can be selected based on your design preferences or specific safety and functional requirements.

Q What wall thickness options are available, and how does it affect performance?

A The bollards are available in 3mm and 5mm wall thicknesses. A thicker 5mm wall provides greater structural strength and impact resistance, making it suitable for high-traffic or higher-security applications, while the 3mm option is ideal for standard pedestrian and light-duty use.
