Custom KAVASS Removable Bollard - Flat Top Handle | Surface Mounted Bollard from China Suppliers & Factory, No Concrete Needed Suppliers, Products

,

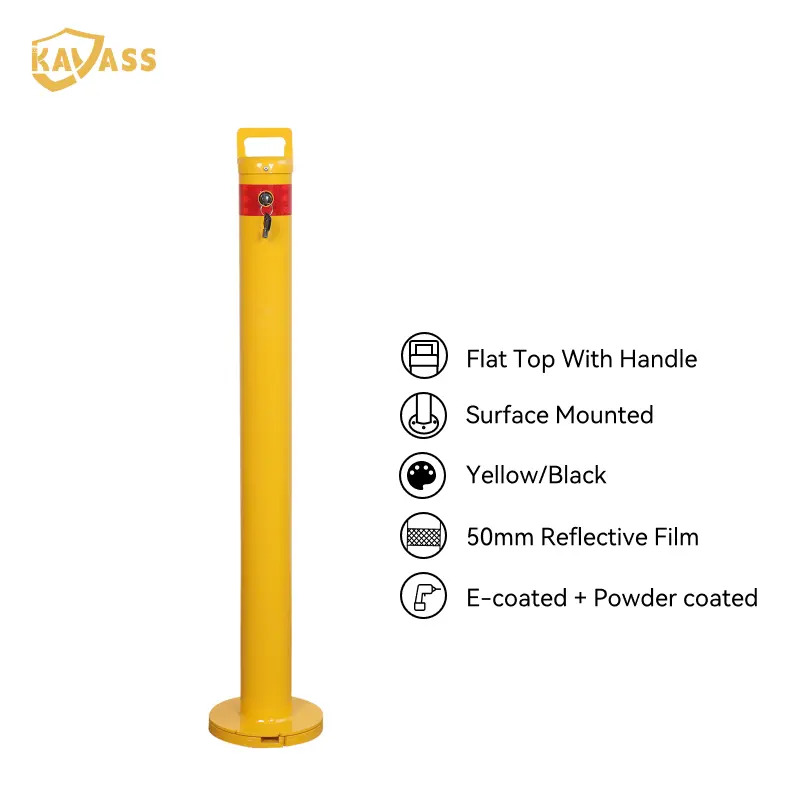

Introducing the KAVASS removable bollard, a top choice among China suppliers for effective and flexible access control in areas requiring temporary restrictions. Crafted from high-strength Q235 carbon steel, this bollard offers unmatched durability, suitable for both indoor and outdoor applications.

,

The innovative lift-out design, featuring an integrated top handle, allows for swift removal and repositioning, ensuring quick access when needed. Its surface-mounted base plate simplifies installation using expansion bolts, eliminating the need for excavation or permanent ground modifications—perfect for busy environments.

,

With a dual-layer protective finish that combines E-coating and powder coating, this bollard is engineered for long-lasting outdoor use, providing excellent corrosion resistance. KAVASS, a trusted factory in China, ensures high-quality manufacturing standards for all its products.

,

Key Features

,
    ,
  • Removable Design– Effortless lift-out function for temporary access control
  • ,
  • Integrated Handle– Designed for easy carrying and repositioning
  • ,
  • Surface Mount Installation– No digging required; secure with expansion bolts
  • ,
  • Q235 Carbon Steel Construction– Robust and impact-resistant for long-term use
  • ,
  • Double Coating Protection– E-coating plus powder coating for heightened durability
  • ,
  • Reflective Strip– 50 mm wide for enhanced visibility in low-light conditions
  • ,
,

Product Description

📐

Specification

Model

Material

Diameter

Height

Thickness

Size of Base Plate

KVS-REB(SM)-89.1020.3-0EP

Q235 Steel

89

1020

3

∅220

KVS-REB(SM)-140.1020.3-0EP

Q235 Steel

140

1020

3

∅220

🖼️

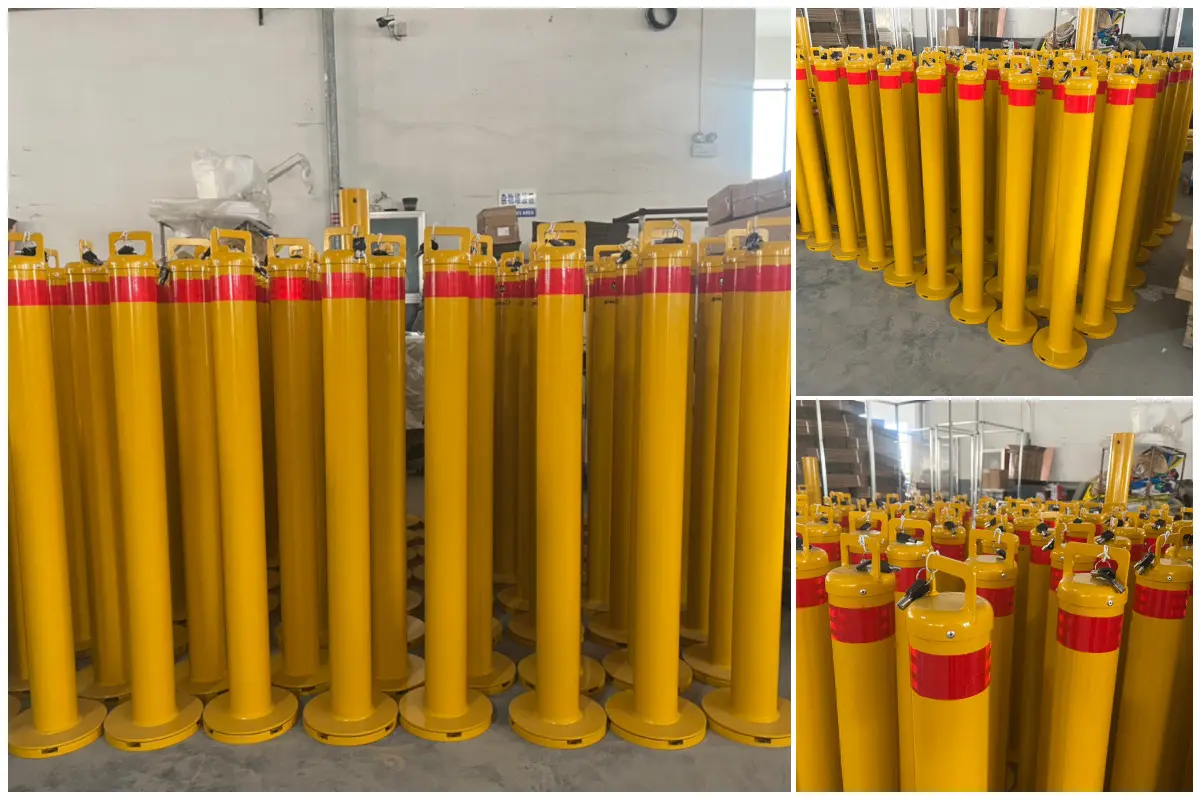

Detail Pictures

Detail Pictures
📊

Total Parameter

Parameters of other Surface Mounted Removable Bollard

Diameter

Height

Wall Thickness

Material

Lock

Type

Finish

89mm

960mm

3mm

Carbon steel/304SS/316SS

Keylock

Rotate

Carbon steel: E-coated and powder coated
Stainless steel: Satin polish

89mm

1140mm

3mm

Carbon steel/304SS/316SS

Keylock

Rotate

140mm

960mm

3mm

Carbon steel/304SS/316SS

Keylock

Rotate

140mm

1140mm

3mm

Carbon steel/304SS/316SS

Keylock

Rotate

89mm

960mm

3mm

Carbon steel/304SS/316SS

Pad/Keylock

Slide

89mm

1140mm

3mm

Carbon steel/304SS/316SS

Pad/Keylock

Slide

140mm

960mm

3mm

Carbon steel/304SS/316SS

Pad/Keylock

Slide

140mm

1140mm

3mm

Carbon steel/304SS/319SS

Pad/Keylock

Slide

⚠️ Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

🔩

Other Products

Other Products

Frequently Asked Questions

Q What materials are available for the surface mounted removable bollard?
The bollard is available in Carbon Steel (Q235), 304 Stainless Steel, and 316 Stainless Steel, catering to different environments and durability requirements.
Q What diameter and height options are available?
The bollard is offered in two diameter options — 89mm and 140mm — and two height options — 960mm and 1140mm. The standard wall thickness is 3mm across all configurations.
Q What lock types are available for this bollard?
Two lock types are available: Keylock and Pad/Keylock. The Keylock type supports a Rotate removal mechanism, while the Pad/Keylock type supports a Slide removal mechanism.
Q What surface finish options are provided?
For carbon steel bollards, the standard finish is E-coated and powder coated (or hot-dip galvanizing). For stainless steel bollards, the standard finish is satin polishing, providing a clean and corrosion-resistant appearance.
Q What is the size of the base plate for the KVS-REB(SM) models?
Both the KVS-REB(SM)-89.1020.3-0EP and KVS-REB(SM)-140.1020.3-0EP models use a circular base plate with a diameter of ∅220mm, suitable for surface mounting applications.
Q Can the bollard be customized for specific project requirements?
Yes. The bollard supports multiple combinations of diameter, height, material, lock type, and finish. Custom configurations can be arranged based on project specifications.
