ODM KAVASS China Factory Carbon Steel Yellow Surface Mount Bollard - Durable Suppliers for Commercial Protection Manufacturer, Factory

KAVASS surface-mounted bollards are expertly designed to provide permanent protection in commercial and industrial settings. Crafted from high-quality Q235 carbon steel and finished with a robust powder coating, these bollards ensure long-lasting resistance to corrosion and daily impacts, making them ideal for various environments.

Available in a diverse range of diameters from Ø89 mm to Ø273 mm, KAVASS bollards cater to different protection needs—from serving as visual guidance to offering basic vehicle restriction. Their base plate design facilitates straightforward surface installation using anchor bolts, allowing for quick deployment without the need for extensive groundwork.

As a leading manufacturer and one of the top suppliers in China, KAVASS guarantees consistent product quality, flexible customization options, and competitive pricing for bulk projects. Our factory-direct production model ensures that we can meet your specific requirements efficiently.

Key Features

Multiple Size Options– Available in diameters of Ø89 / 114 / 140 / 168 / 219 / 273 mm to address various protection needs
Q235 Steel Construction– Provides strong structural performance for everyday impact resistance
Powder-Coated Finish– Designed for outdoor durability and effective corrosion protection
Surface Mounted Design– Allows for easy installation with anchor bolts; no deep embedding is required
Project-Friendly Supply– Stable production capacity for fulfilling bulk orders efficiently
OEM Customization– Tailored options for diameter, height, color, and branding available

Send Inquiry

Product Description

Specification

Model	Material	Diameter	Height	Thickness	Size of Base Plate
KVS-FB(S)-89.900.3-0EP	Carbon steel	89	900	3	∅225*T8
KVS-FB(S)-114.1200.3-0EP	Carbon steel	114	1200	3	∅225*T8
KVS-FB(S)-140.1200.3-0EP	Carbon steel	140	1200	3	∅250*T8
KVS-FB(S)-140.1300.3-0EP	Carbon steel	140	1300	3	∅250*T8
KVS-FB(S)-165.1200.3-0EP	Carbon steel	165	1200	3	∅300*T10
KVS-FB(S)-220.1200.3-0EP	Carbon steel	220	1200	3	∅320*T8

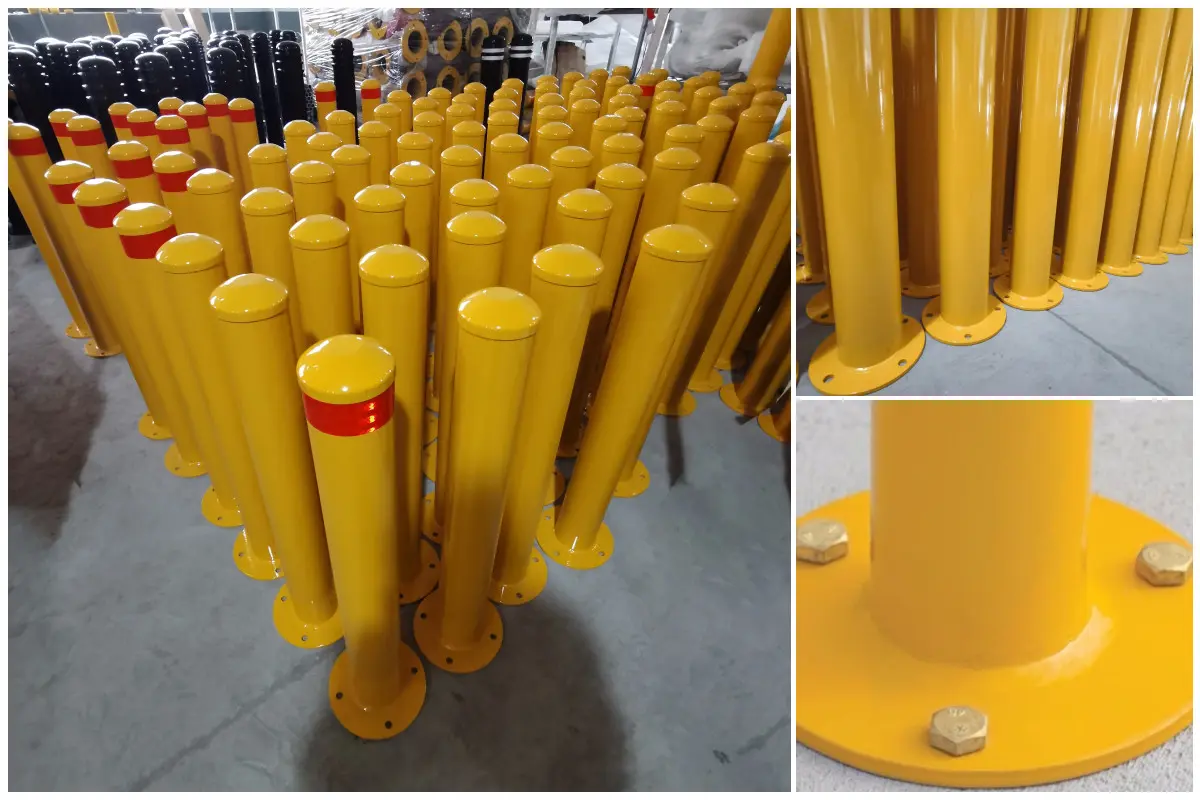

Detail Pictures

Total Parameter

Parameters of Other Surface Mounted Fixed Bollards

Diameter	Height	Wall Thickness	Base Plate Size	Mounting Hole	Material	Head	Finish
89mm	900mm	3mm	Φ170*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel	Carbon steel: Hot dip galvanized / E-coated and powder coated Stainless steel: Satin polish
89mm	1200mm	3mm	Φ170*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	900mm	3mm	Φ200*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	1200mm	3mm	Φ200*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	3mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	3mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	5mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	5mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
165mm	900mm	3mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	3mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	900mm	5mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	5mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
219mm	900mm	3mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	3mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	900mm	5mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	5mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
168mm	900mm	3mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	3mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	900mm	5mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	5mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel

Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Other Products

Frequently Asked Questions

Q What materials are available for the surface mounted fixed bollard?

The bollards are available in Carbon Steel (Q235), 304 Stainless Steel, and 316 Stainless Steel. Carbon steel models are suitable for standard outdoor environments, while 304SS and 316SS options offer superior corrosion resistance for coastal or high-humidity applications.

Q What finish options are available for these bollards?

For carbon steel bollards, the standard finish is hot-dip galvanizing or E-coated plus powder coating. For stainless steel bollards, the default finish is satin polishing. Custom finishes may be available upon request.

Q What diameter and height combinations are available?

Bollards are offered in diameters ranging from 89mm to 219mm, with heights of 900mm or 1200mm (some models also at 1300mm). Wall thickness options include 3mm and 5mm depending on the model. Please refer to the Total Parameter table for the full range of configurations.

Q What head styles are available for the bollards?

Three head styles are available: Flat, Dome, and Bevel. Each style offers a different aesthetic and functional profile to suit various architectural and security requirements.

Q How are the bollards installed — what is the base plate and mounting hole specification?

All models use a surface-mounted base plate design with 4×Φ16mm mounting holes. Base plate sizes vary by bollard diameter, ranging from Φ170*8mm for the 89mm diameter models up to Φ300*8mm for the 219mm diameter models, ensuring a secure and stable installation on concrete or paved surfaces.

Q Can custom sizes or specifications be ordered?

Yes. In addition to the standard models listed in the specification and parameter tables, custom diameters, heights, wall thicknesses, materials, and finishes can typically be accommodated. Please submit your specific requirements for a tailored quotation.
