| Model | Material | Bike Capacity | Diameter | Height | Thickness | Flange |
|---|---|---|---|---|---|---|
| KVS-FB(BS)-114-1066.8.3-4 | 304SS/316SS | 2 | 114 | 1066.8 | 3 | 304.8*9.52 |
The model number is KVS-FB(BS)-114-1066.8.3-4. This designation covers key dimensional and configuration details including diameter, height, thickness, and flange size.

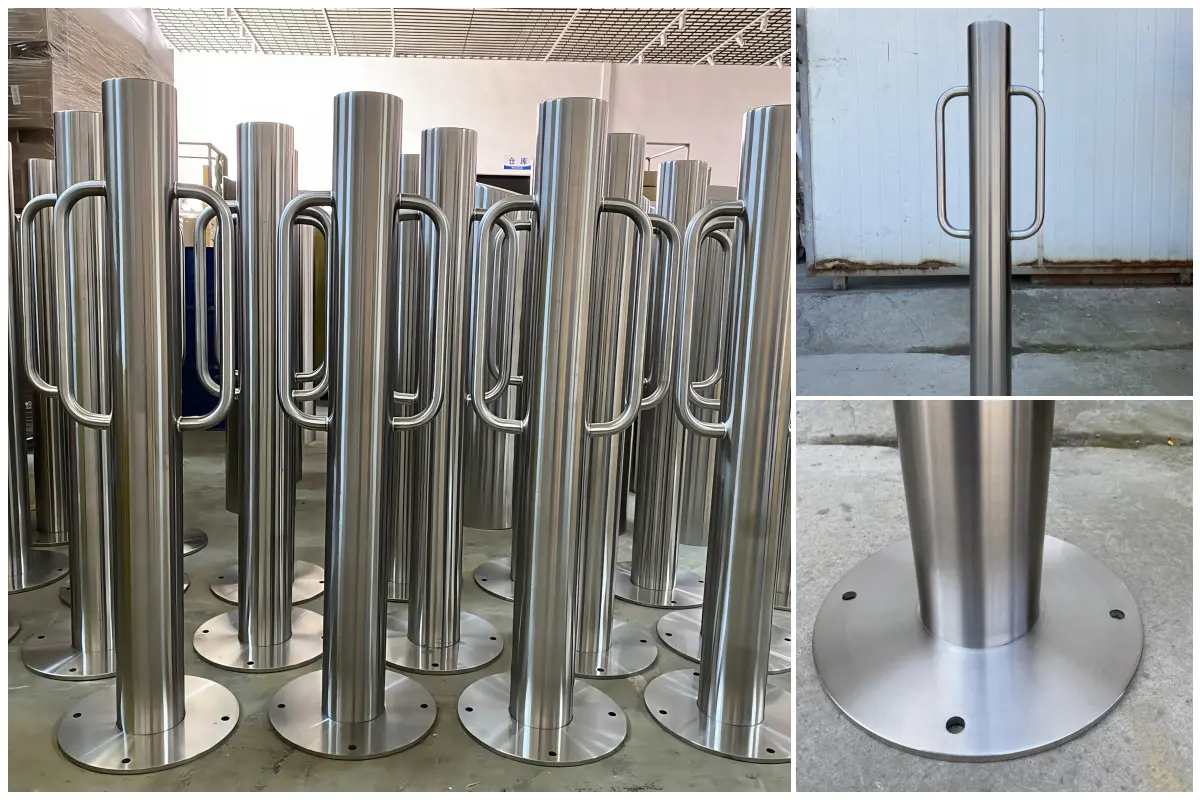

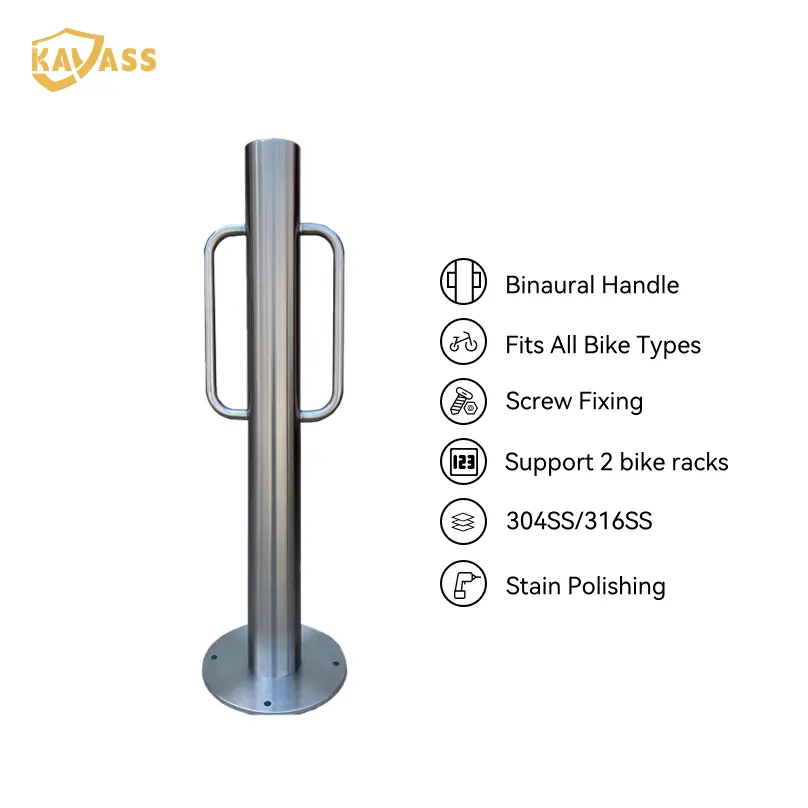

This bike rack post is available in both 304 Stainless Steel (304SS) and 316 Stainless Steel (316SS), offering excellent corrosion resistance and durability for both indoor and outdoor environments.
This model has a bike capacity of 2 bikes, making it suitable for compact urban installations, building entrances, or small commercial spaces.

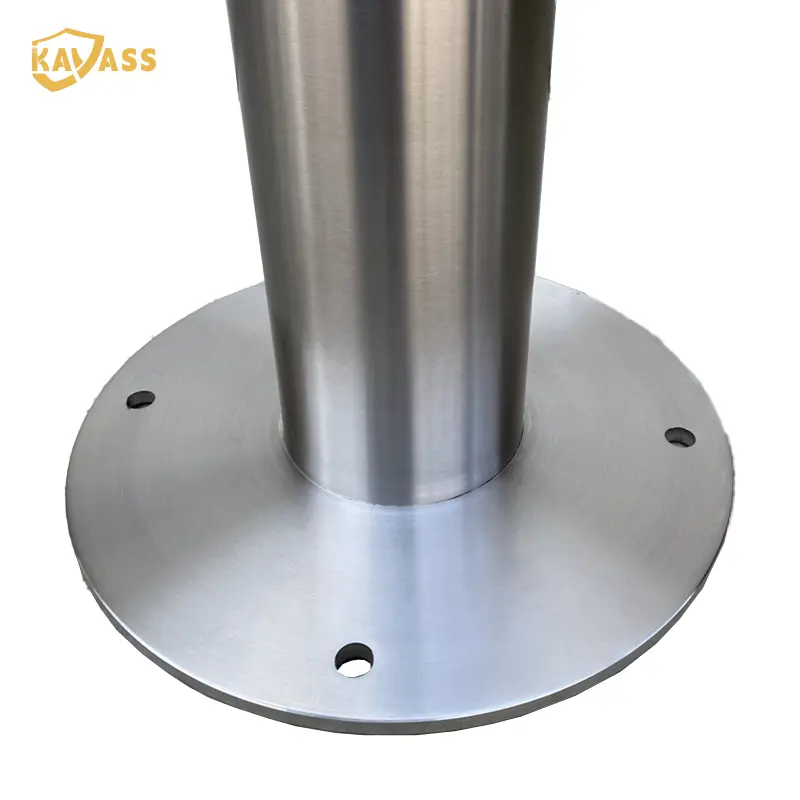

The post has a diameter of 114mm, a height of 1066.8mm, and a wall thickness of 3mm. The flange dimensions are 304.8 × 9.52mm, designed for secure surface mounting.
304SS is a standard stainless steel grade ideal for general outdoor use. 316SS contains molybdenum, offering superior resistance to chloride corrosion, making it the preferred choice for coastal or high-humidity environments.
Yes, custom specifications and bulk orders are typically available. Please contact the supplier directly with your project requirements, including preferred material grade, quantity, and any dimensional adjustments needed.
