ODM KAVASS Stainless Steel Sleeve Bollard - Customizable Heights, Ø200/Ø300, Factory Direct Suppliers from China Manufacturer, Supplier

Introducing the heavy-duty stainless steel sleeve bollard from KAVASS, a leading manufacturer in China. Crafted from high-quality 304 or 316 stainless steel with a sleek brushed finish, this bollard is designed to meet the highest security requirements. It is available in two diameters—Ø200mm and Ø300mm—with fully customizable heights to suit various applications, Key features include:, - **Material**: Constructed from 304 or 316 stainless steel, ensuring excellent corrosion resistance, - **Diameter Options**: Choose between Ø200mm or Ø300mm to fit your specific needs, - **Customizable Height**: Tailor the height to match your security requirements, - **Flat Top Design**: The minimalistic flat cap prevents water pooling and enhances aesthetic appeal, - **Innovative Structure**: Utilizing a sleeve system, this product features a pre-installed base with a removable post for quick installation and effortless replacement, As a trusted supplier and factory in China, we also offer logo and finish customization to meet your branding needs. Elevate your security solutions with our premium stainless steel sleeve bollard today!

Send Inquiry

Product Description

Specification

Model	Material	Diameter	Height	Thickness	Accessories
Sleeve-200.1050.3	304SS/316SS	200	1050	3	Three screws at the bottom
Sleeve-300.1050.3	304SS/316SS	300	1050	3	Three screws at the bottom

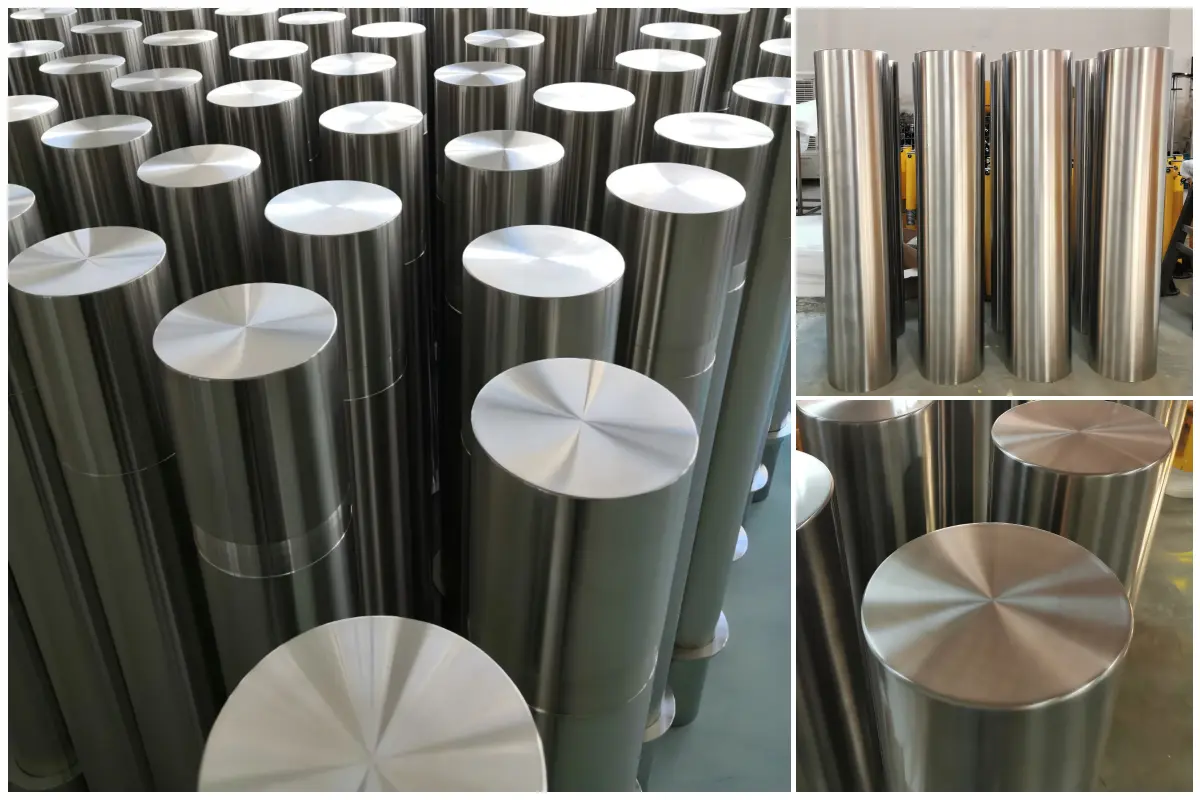

Detail Pictures

Total Parameter

Parameters of other In-ground fixed bollard

Diameter	Height above ground	Depth under ground	Wall Thickness	Material	Head	Finish
89mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel	Carbon steel: Hot dip galvanized / E-coated and powder coated Stainless steel: Satin polish
89mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
165mm	900mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	3mm	Carbon steel	Flat/Dome/Bevel
165mm	900mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	300mm	5mm	Carbon steel	Flat/Dome/Bevel
219mm	900mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	3mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	900mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	300mm	5mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	3mm	304SS/316SS	Flat/Dome/Bevel
168mm	900mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	300mm	5mm	304SS/316SS	Flat/Dome/Bevel

Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Other Products

Frequently Asked Questions

Q What materials are available for the in-ground fixed bollard sleeve?

The bollard sleeve is available in both 304 stainless steel (304SS) and 316 stainless steel (316SS), offering excellent corrosion resistance for a wide range of indoor and outdoor environments. Carbon steel is also available for other bollard models in the range.

Q What are the standard dimensions of the bollard sleeve models?

Two standard sleeve models are available: Sleeve-200.1050.3 with a diameter of 200mm and height of 1050mm, and Sleeve-300.1050.3 with a diameter of 300mm and height of 1050mm. Both have a wall thickness of 3mm and come with three screws at the bottom for secure installation.

Q What finish options are available for the bollards?

For carbon steel bollards, the standard finish is hot-dip galvanizing or E-coated combined with powder coating for enhanced durability. For stainless steel bollards (304SS/316SS), the default finish is satin polishing, which provides a clean and professional appearance.

Q What head styles are available for the in-ground fixed bollards?

The bollards are available with three head style options: Flat, Dome, and Bevel. Each style offers a different aesthetic and can be selected based on your project's design requirements and safety considerations.

Q What is the standard depth below ground for in-ground fixed bollard installation?

All in-ground fixed bollard models in the total parameter table have a standard underground depth of 300mm. This ensures a stable and secure installation suitable for pedestrian and vehicle access control applications.

Q Can custom sizes or specifications be arranged for the bollards?

Yes, in addition to the standard models listed in the specification and total parameter tables, custom diameters, heights, wall thicknesses, materials, and finishes can be discussed based on your specific project requirements for a tailored solution.
