KAVASS Surface Mounted Fixed Bollards (Ø89 / Ø114 / Ø140 / Ø165 / Ø220mm) provide exceptional protection for restricted areas, traffic zones, and facility perimeters. Manufactured from high-strength carbon steel and finished with a durable powder coating, these bollards are corrosion-resistant, ensuring longevity even in harsh conditions. As a reliable supplier from China, KAVASS offers factory-direct products with full customization options, **Key Features:**, - Available in multiple diameters to meet varying security requirements, - Surface-mount design allows for quick and stable installation, - Optional reflective strips enhance visibility, improving safety, - Weatherproof coating guarantees long-lasting durability, Perfect for applications such as parking lots, warehouses, and pedestrian zones, KAVASS bollards are the ideal solution for your security needs

Send Inquiry

Product Description

Description

Designed for projects that require a permanent and low-maintenance barrier, surface mounted fixed bollards provide a practical solution for defining boundaries and managing vehicle movement. Their solid steel construction ensures reliable structural performance in daily use, while the clean cylindrical profile allows them to integrate easily into both industrial and commercial environments.

The availability of multiple diameters makes it easier to match different application needs. Smaller sizes are suitable for visual guidance and light-duty separation, while larger diameters offer increased resistance for areas requiring stronger physical protection. This flexibility allows planners and contractors to select the appropriate specification without overengineering the project.

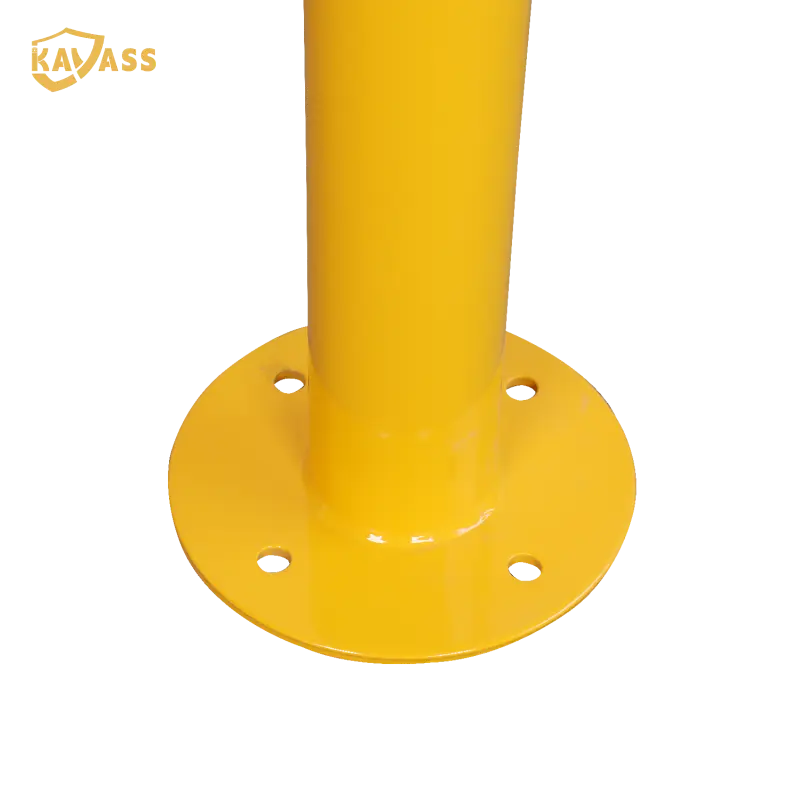

Installation is straightforward thanks to the base plate design, which can be securely fixed onto concrete surfaces using anchor bolts. This method reduces installation time compared to embedded systems and is well-suited for retrofit projects or sites where ground excavation is not preferred.

To improve safety in low-light conditions, reflective strips can be added, enhancing visibility for both drivers and pedestrians. With stable production capacity and customization support, consistent supply is ensured for projects of different scales.

🏗️

Solid Steel Construction Reliable structural performance for daily industrial & commercial use.

📐

Multiple Diameters Available Flexible sizing to match light-duty guidance or heavy-duty protection needs.

⚙️

Easy Base Plate Installation Anchor bolt fixing onto concrete — no excavation required.

🔆

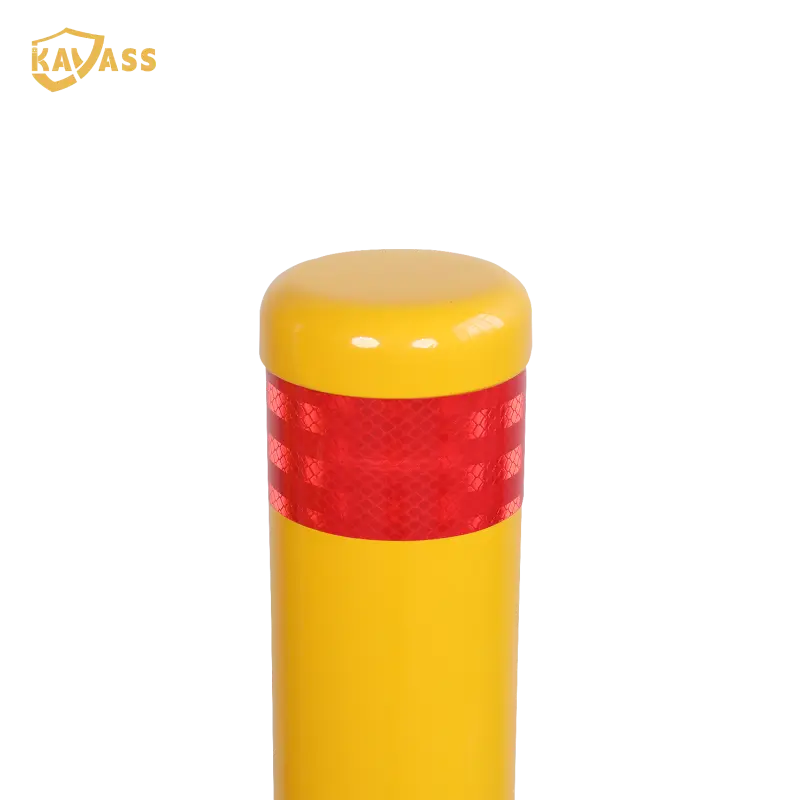

Optional Reflective Strips Enhances visibility for drivers and pedestrians in low-light conditions.

Specification

Model	Material	Diameter	Height	Thickness	Size of Base Plate
FB(SM)-89.900.3	Carbon steel	89	900	3	∅225*T8
FB(SM)-114.1200.3	Carbon steel	114	1200	3	∅225*T8
FB(SM)-140.1300.3	Carbon steel	140	1300	3	∅250*T8
FB(SM)-165.1300.3	Carbon steel	165	1300	3	∅300*T10
FB(S)-220.1200.5	Carbon steel	220	1200	5	∅320*T8

Detail Pictures

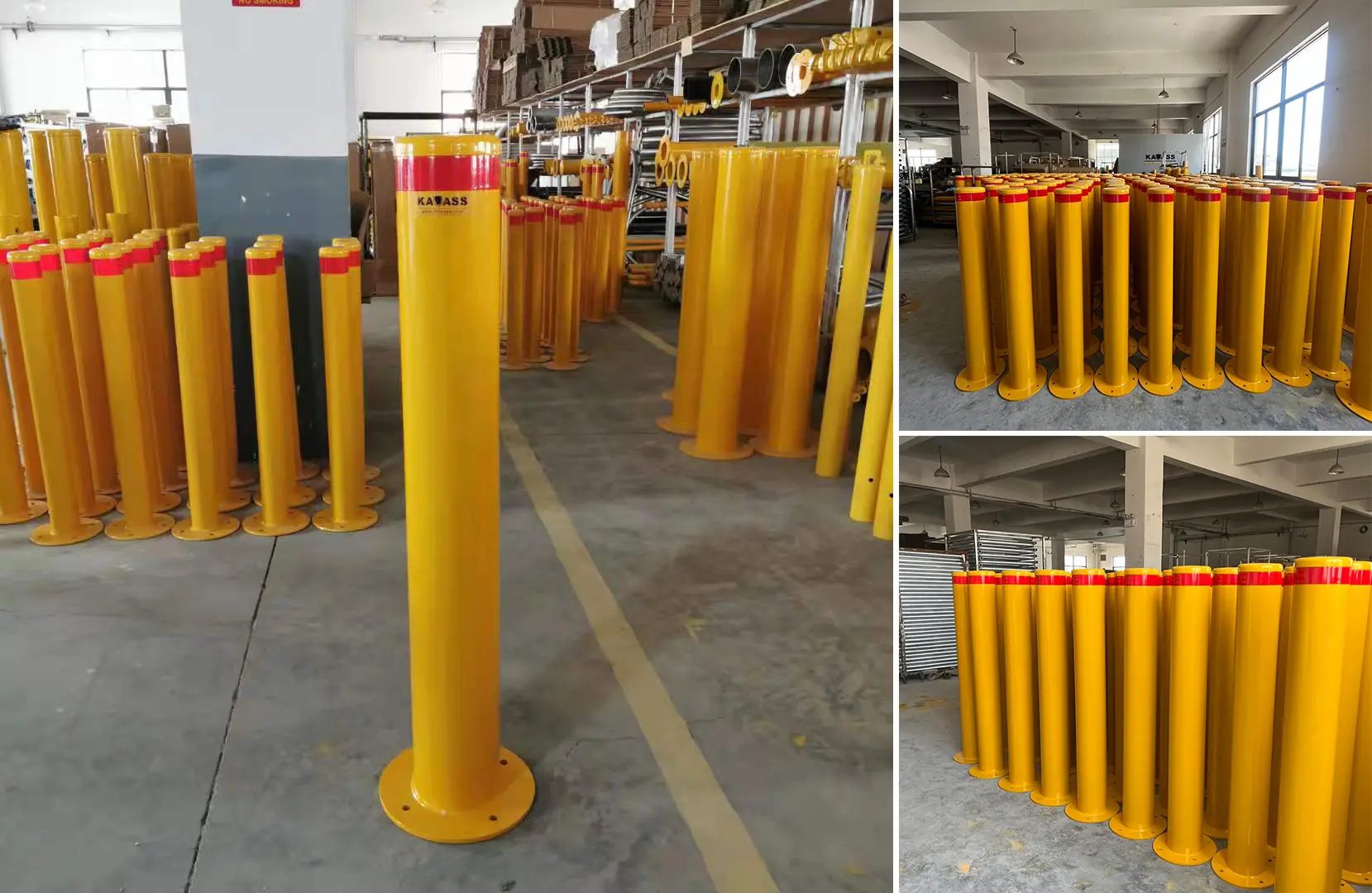

Detail view of surface mounted fixed bollard

Total Parameter

Parameters of other Surface Mounted Fixed Bollards

Diameter	Height	Wall Thickness	Base Plate Size	Mounting Hole	Material	Head	Finish
89mm	900mm	3mm	Φ170*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel	Carbon steel: Hot dip galvanized / E-coated and powder coated Stainless steel: Satin polish
89mm	1200mm	3mm	Φ170*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	900mm	3mm	Φ200*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
114mm	1200mm	3mm	Φ200*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	3mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	3mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	900mm	5mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
140mm	1200mm	5mm	Φ220*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
165mm	900mm	3mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	3mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	900mm	5mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
165mm	1200mm	5mm	Φ250*8mm	4*Φ16mm	Carbon steel	Flat/Dome/Bevel
219mm	900mm	3mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	3mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	900mm	5mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
219mm	1200mm	5mm	Φ300*8mm	4*Φ16mm	Carbon steel/304SS/316SS	Flat/Dome/Bevel
168mm	900mm	3mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	3mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	900mm	5mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel
168mm	1200mm	5mm	Φ250*8mm	4*Φ16mm	304SS/316SS	Flat/Dome/Bevel

⚠️ Remarks: Carbon steel is defaulted to Q235 Steel. For finish, carbon steel is defaulted to hot-dip galvanizing or E-coated + powder coating; stainless steel is defaulted to satin polishing.

Other Products

Frequently Asked Questions

Q What material are the surface mounted fixed bollards made from?

These surface mounted fixed bollards are made from solid carbon steel (defaulted to Q235 steel). Stainless steel options including 304SS and 316SS are also available for specific models, offering enhanced corrosion resistance for more demanding environments.

Q How are surface mounted fixed bollards installed?

Installation is done using a base plate design that is fixed onto concrete surfaces with anchor bolts. This method eliminates the need for ground excavation, making it faster and ideal for retrofit projects or locations where underground work is not practical.

Q What diameter and height options are available?

Available diameters range from 89mm to 219mm (and 220mm for specific models), with heights of 900mm or 1200mm for most configurations, and 1300mm for select sizes. This range allows selection based on the level of physical protection required for your project.

Q What finish options are available for these bollards?

For carbon steel bollards, the standard finish is hot-dip galvanizing or E-coating combined with powder coating. For stainless steel bollards, the default finish is satin polishing. Both finishes provide long-term protection and a professional appearance.

Q Can reflective strips be added to the bollards?

Yes, reflective strips can be added to the surface mounted fixed bollards. This optional feature improves visibility for both drivers and pedestrians in low-light or nighttime conditions, enhancing overall site safety.

Q Are customization options available for large-scale projects?

Yes. Customization is supported to meet specific project requirements, including different diameters, heights, wall thicknesses, head styles (Flat, Dome, or Bevel), and finish types. With stable production capacity, consistent supply can be ensured for projects of varying scales.
