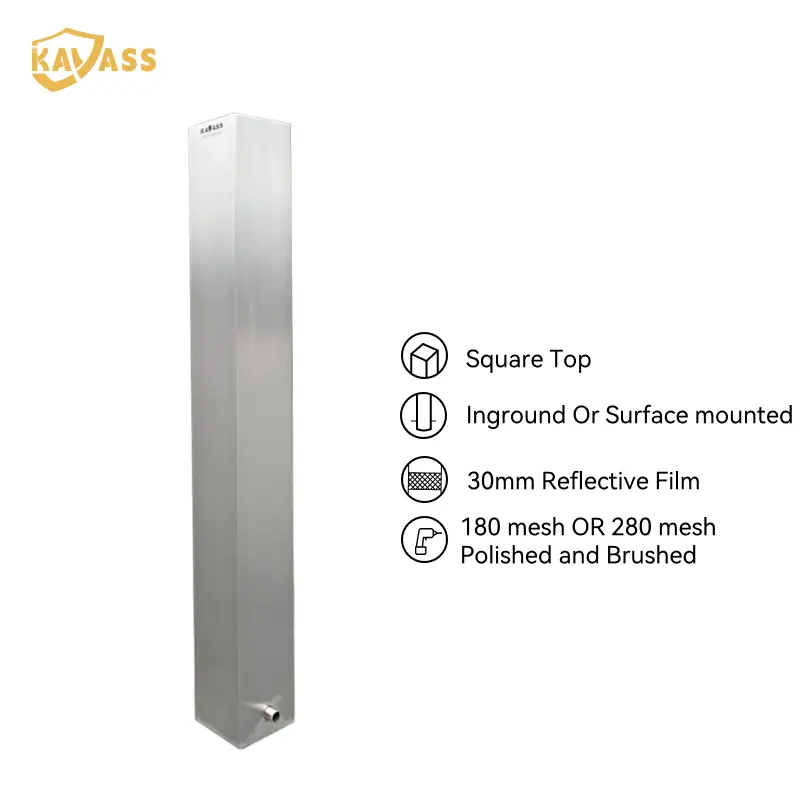

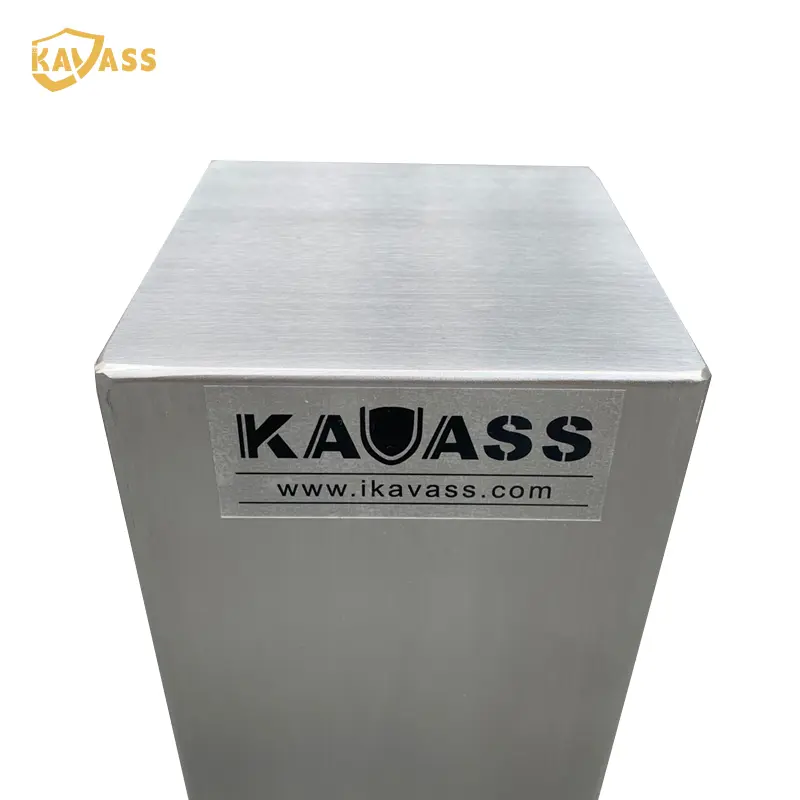

OEM KAVASS Stainless Steel Square Bollard - Durable Outdoor Solution by China Suppliers & Factory, In-Ground or Surface Mount Manufacturer, Factory

,

Introducing the KAVASS square stainless steel bollard, a product of fine craftsmanship from a leading manufacturer in China. This bollard combines contemporary aesthetics with robust structural integrity, crafted from high-grade 304 or 316 stainless steel. Its superior resistance to rust and environmental degradation ensures it is perfect for long-term outdoor use in a variety of settings.

,

Designed with a sleek square profile, this bollard enhances modern architectural landscapes such as shopping malls, commercial buildings, and glass façade entrances. As one of the premier suppliers of stainless steel solutions, we ensure that our bollards can be installed using surface fixing or embedded methods, making them versatile for different project needs.

,
    ,
  • Material: High-quality 304 / 316 stainless steel for exceptional durability
  • ,
  • Design: Minimalist square design for a stylish urban look
  • ,
  • Installation Options: Suitable for both surface and in-ground mounting installations
  • ,
  • Finish: Available in smooth brushed or polished surface for a chic finish
  • ,
  • Mounting Base: Features a flange plate with options for M12 expansion bolts
  • ,
  • Customization: Tailored dimensions and specifications can be provided upon request
  • ,
,

Product Description

📐

Specification

Model Material Diameter Height Thickness Flange
KVS-FB(I)-100.1100.3-6 304SS / 316SS 100 900+200 3 /
KVS-FB(SM)-100.900.3-6 304SS / 316SS 100 900 3 160×160×T8mm
🖼️

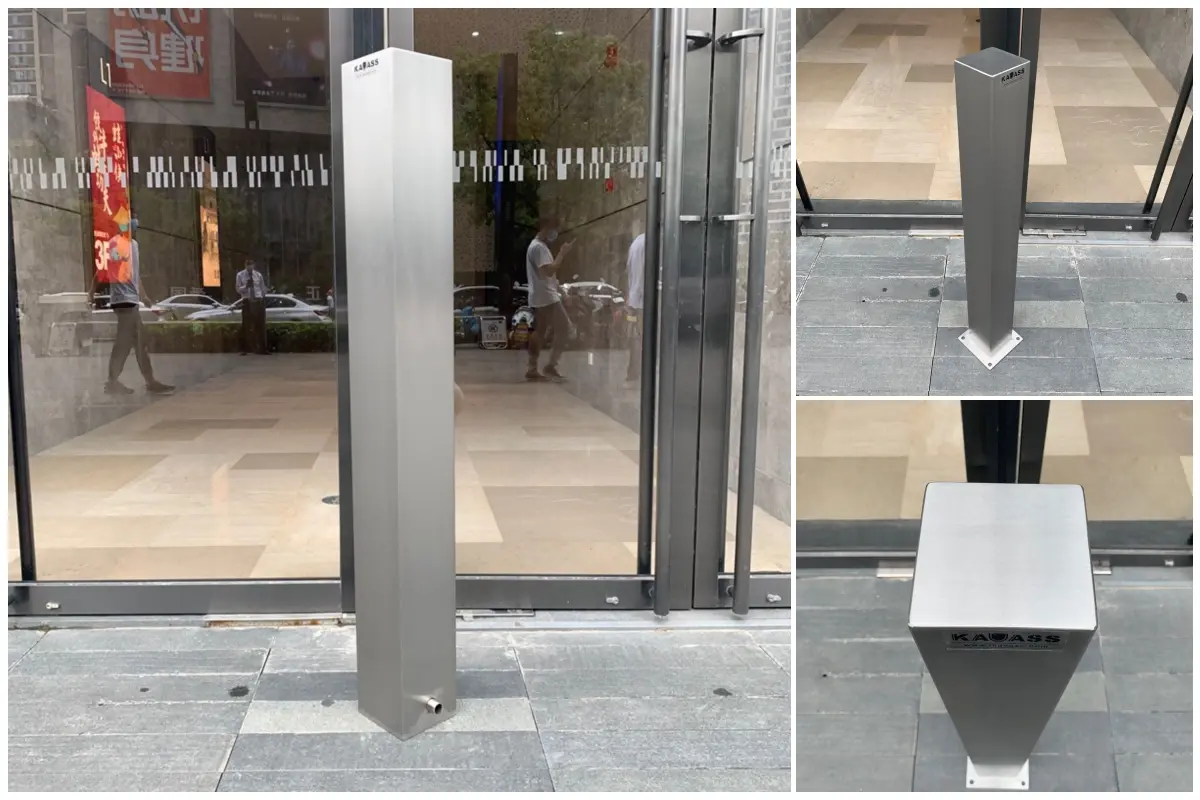

Detail Pictures

Detail Pictures
📊

Total Parameter

Parameters of Other In-Ground Fixed Bollard
Diameter Height Above Ground Depth Under Ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel Carbon steel:
Hot dip galvanized / E-coated and powder coated

Stainless steel:
Satin polish
89mm 1200mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
114mm 900mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
114mm 1200mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
140mm 900mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
140mm 1200mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
140mm 900mm 300mm 5mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
140mm 1200mm 300mm 5mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
165mm 900mm 300mm 3mm Carbon steel Flat / Dome / Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat / Dome / Bevel
165mm 900mm 300mm 5mm Carbon steel Flat / Dome / Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat / Dome / Bevel
219mm 900mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
219mm 1200mm 300mm 3mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
219mm 900mm 300mm 5mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
219mm 1200mm 300mm 5mm Carbon steel / 304SS / 316SS Flat / Dome / Bevel
168mm 900mm 300mm 3mm 304SS / 316SS Flat / Dome / Bevel
168mm 1200mm 300mm 3mm 304SS / 316SS Flat / Dome / Bevel
168mm 900mm 300mm 5mm 304SS / 316SS Flat / Dome / Bevel
168mm 1200mm 300mm 5mm 304SS / 316SS Flat / Dome / Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.
🏷️

Other Products

Other Products

Frequently Asked Questions

Q
What materials are available for the in-ground fixed bollards?
The in-ground fixed bollards are available in Carbon Steel (Q235), 304 Stainless Steel, and 316 Stainless Steel. Each material option is suited for different environments and corrosion resistance requirements.
Q
What diameter and height options are offered for these bollards?
Bollards are available in diameters ranging from 89mm to 219mm (including 89mm, 114mm, 140mm, 165mm, 168mm, and 219mm). Standard heights above ground are 900mm and 1200mm, with a standard underground depth of 300mm.
Q
What wall thickness options are available?
Wall thickness options are 3mm and 5mm. The 5mm thickness provides greater structural strength and is recommended for high-impact or heavy-duty applications.
Q
What head styles are available for the bollards?
Three head styles are available: Flat, Dome, and Bevel. These options allow you to select the most suitable aesthetic and functional design for your project.
Q
What surface finish options are provided for carbon steel and stainless steel bollards?
For carbon steel bollards, the default finish is hot-dip galvanizing or E-coating combined with powder coating, offering excellent corrosion protection. For stainless steel bollards, the default finish is satin polishing, providing a clean and modern appearance.
Q
Is a flange base option available, and what are the flange dimensions?
Yes, a surface-mount flange base option is available. For example, the model KVS-FB(SM)-100.900.3-6 features a flange plate measuring 160×160mm with a thickness of 8mm (T8mm), allowing for secure surface mounting without the need for in-ground installation.
