OEM KAVASS Stainless Steel Sleeve Bollard - Beveled Top, Removable Design from China Suppliers, Factory Direct Manufacturers, Products

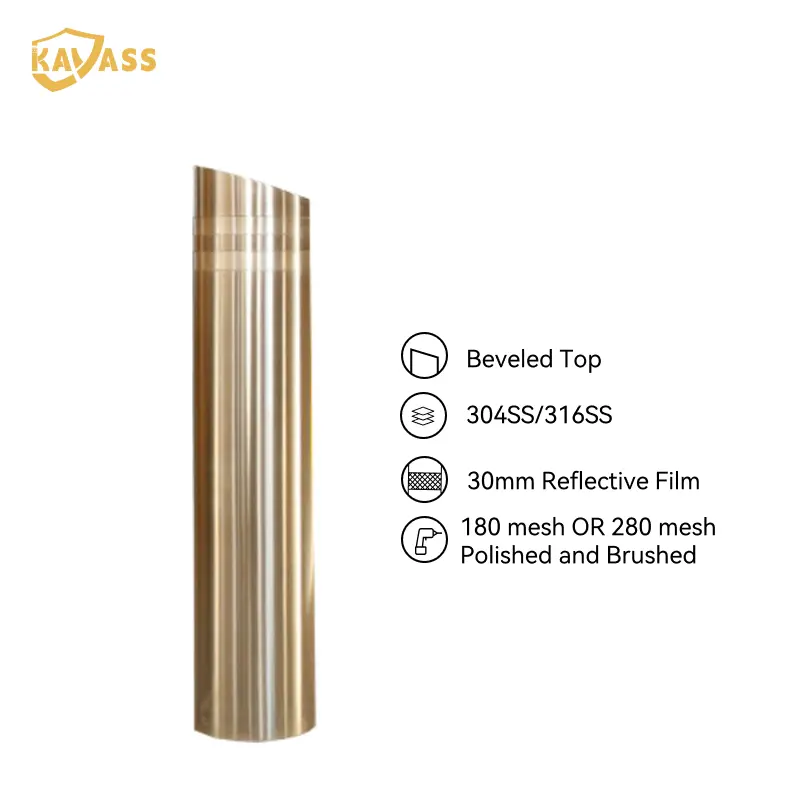

Manufactured by KAVASS, this high-quality stainless steel sleeve bollard is designed for durability and ease of use. Crafted from premium 304 or 316 stainless steel with a brushed finish, it is ideal for various applications in parking lots, commercial buildings, and urban infrastructure. As a trusted supplier in China, KAVASS offers this bollard with a unique removable sleeve structure that simplifies installation and maintenance, Key Features:, - **Material**: Available in corrosion-resistant 304 or 316 stainless steel, - **Structure**: Innovative sleeve design allows for easy transportation and installation, - **Top Design**: Featuring a beveled cap that enhances water drainage, ensuring longevity and functionality, - **Surface Finish**: Choose between a brushed or polished surface for a premium appearance that fits any environment, - **Installation**: Comes with a fixing bar at the base, designed for secure concrete pouring, Choose KAVASS, a leading factory in China, for reliable and stylish bollards that meet your urban infrastructure needs

Product Description

Specification
304SS / 316SS Stainless Steel
Model Material Diameter Height Thickness Accessories

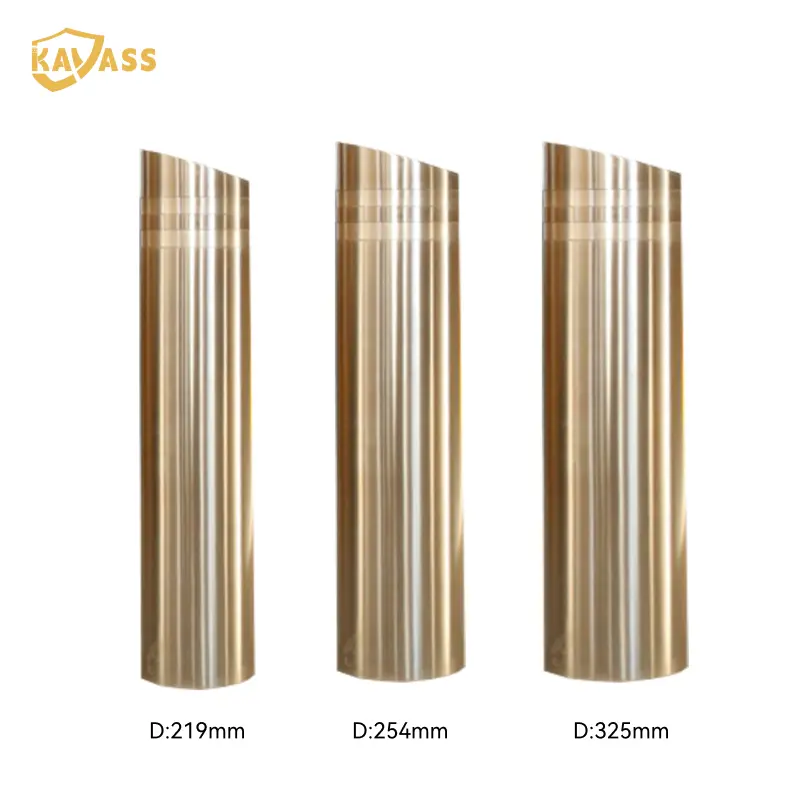

Sleeve-219.1050.3 304SS/316SS 219 1050 3 Three screws at the bottom
Sleeve-254.1050.3(950.900) 304SS/316SS 254 1050 3 Three screws at the bottom
Sleeve-325.1050.3 304SS/316SS 325 1050 3 Three screws at the bottom
Detail Pictures

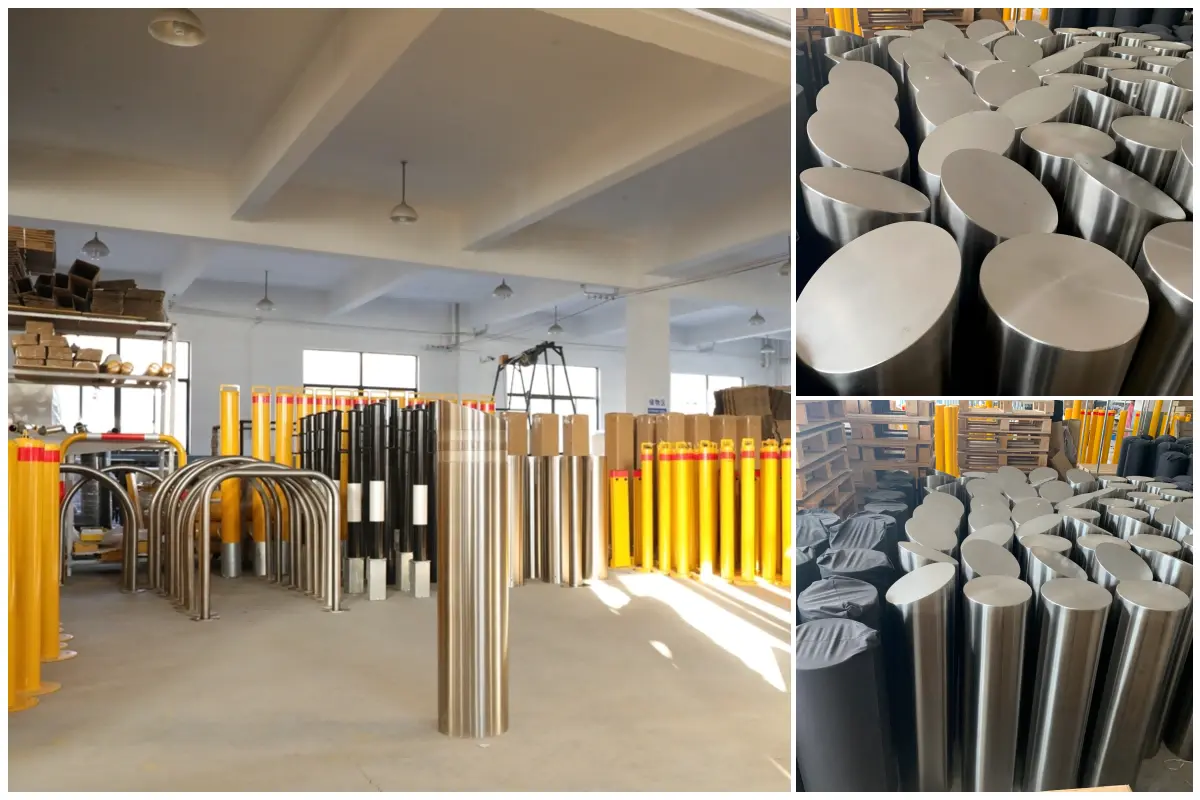

Detail Pictures of Bollard Sleeve
Total Parameter

Parameters of other In-ground fixed bollard

Diameter Height above ground Depth under ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel:
Hot dip galvanized / E-coated and powder coated

Stainless steel:
Satin polish
89mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 900mm 300mm 5mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat/Dome/Bevel
219mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.
Other Products

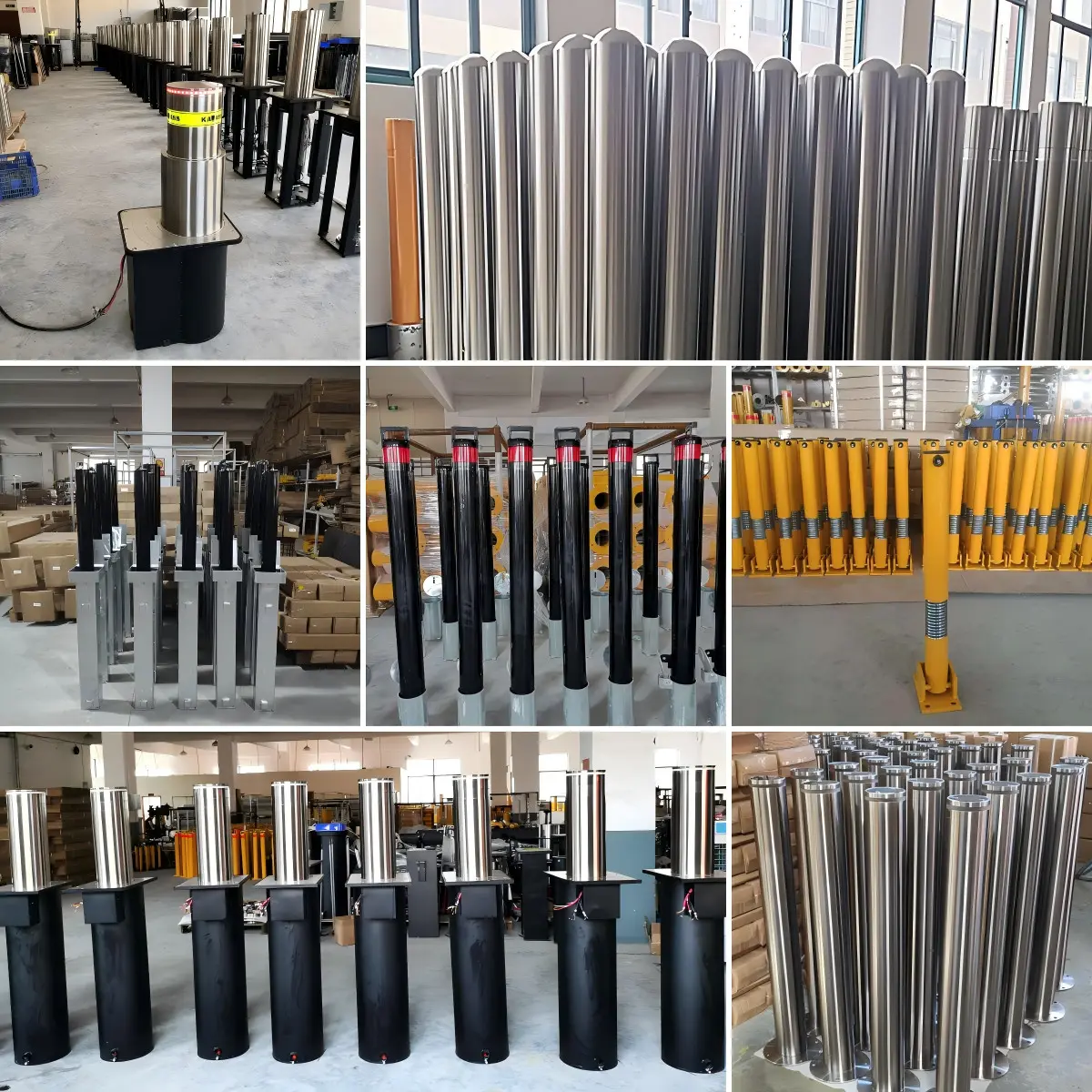

Related Bollards and Security Products
Frequently Asked Questions
  • Q
    What materials are the in-ground fixed bollard sleeves made from?
    The sleeves are available in 304 stainless steel (304SS) and 316 stainless steel (316SS), offering excellent corrosion resistance for both indoor and outdoor environments.
  • Q
    What diameter and height options are available for the bollard sleeves?
    The sleeves come in diameters of 219mm, 254mm, and 325mm, all with a standard height of 1050mm and a wall thickness of 3mm. Bollards themselves are available in a wide range of diameters from 89mm to 219mm and heights of 900mm or 1200mm above ground.
  • Q
    How are the bollard sleeves secured in the ground?
    All three sleeve models are secured with three screws at the bottom, ensuring a stable and reliable installation in the ground.
  • Q
    What wall thickness options are available for the bollards?
    Bollards are available in two wall thickness options: 3mm and 5mm. The 5mm option provides enhanced structural strength and is suitable for higher-impact or heavy-duty applications.
  • Q
    What surface finish options are available for the bollards?
    For carbon steel bollards, the standard finishes are hot-dip galvanizing or E-coating combined with powder coating. For stainless steel bollards (304SS/316SS), the default finish is satin polishing, which provides a clean, brushed appearance.
  • Q
    What head styles are available for the in-ground fixed bollards?
    Three head styles are available: Flat, Dome, and Bevel, allowing you to choose a design that suits your aesthetic preference and functional requirements.
