An Industrial Guide to Regulatory Compliance, Metallurgical Superiority, and Risk Abatement
In modern industrial safety, storing combustible and flammable liquids demands structural integrity, heat isolation, and adherence to strict international regulations. As a premier manufacturer specializing in overall infrastructure and facility risk control solutions, we design, engineer, and manufacture Custom 45 Gallon Fire Cabinets. These units are built to defend hazardous substances against thermal propagation and ignition points, ensuring the safety of your personnel and facility assets.
For chemical labs, industrial production plants, processing facilities, and warehouses, the 45-gallon (170-liter) safety cabinet is an industry-standard capacity. It provides the ideal storage volume for holding up to nine standard 5-gallon containers, fitting seamlessly under work surfaces or along major thoroughfares without blocking egress pathways. Selecting a customized option from a dedicated manufacturer guarantees that thickness tolerances, lock configurations, ventilation systems, and corrosion linings are precision-aligned to your specific risk assessment profiles.
The standard custom 45-gallon fire cabinet features double-walled construction using 18-gauge (1.2mm) cold-rolled steel. This creates a 1.5-inch (38mm) insulating air gap that slows temperature transfer during external fires, giving personnel time to escape and activating automated fire suppression systems. The cabinet walls are welded to provide rigidity, reducing the risk of structural collapse when subjected to high heat.
Our custom manufacturing process utilizes CNC laser cutting and automated press brakes to produce precision-angled panels. They are coated with a chemically inert, electrostatic powder finish that resists acid, alkaline, and organic solvents. The door hinges feature continuous-piano type construction made from stainless steel, ensuring smooth operation even in harsh marine or chemical environments.
Under OSHA 1910.106 and NFPA 30 codes, containment control is critical. A key design feature of our 45-gallon fire cabinet is the liquid-tight sump. Located at the bottom of the cabinet, this 2-inch (51mm) deep leak-proof zone collects accidental spills and drips, preventing hazardous materials from escaping onto the factory floor.
To control vapors, each cabinet is equipped with dual exhaust vents containing built-in flame arresters. These vents are positioned strategically to manage both light and heavy vapors. If local safety codes require external venting, the dual ports feature threaded connections to easily attach grounding cables and spark-proof duct systems, maintaining a safe working environment.
Integrated anchor brackets allow secure floor and wall mounting, keeping the cabinet stable during seismic activity.
Self-closing doors feature fusible links that melt at 165°F (74°C), automatically closing and sealing the cabinet in a fire.
A heavy-duty bullet latching system provides positive door engagement, maintaining structural integrity under heat stress.
18+ Years of Manufacturing Integrity & Global Facility Protection
KAVASS Security Tech Limited is a professional manufacturer focused on traffic safety and perimeter protection solutions, with more than 18 years of industry experience. We specialize in the design, production, and supply of a wide range of products, including parking locks, bollards, bike racks, and other urban infrastructure equipment. By integrating product development, manufacturing, and after-sales support, we provide efficient one-stop solutions tailored to the needs of global clients.

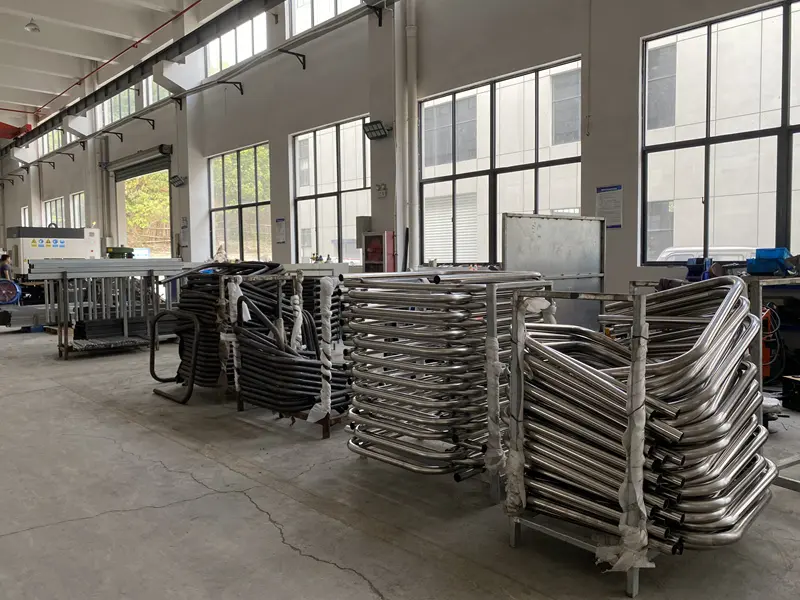

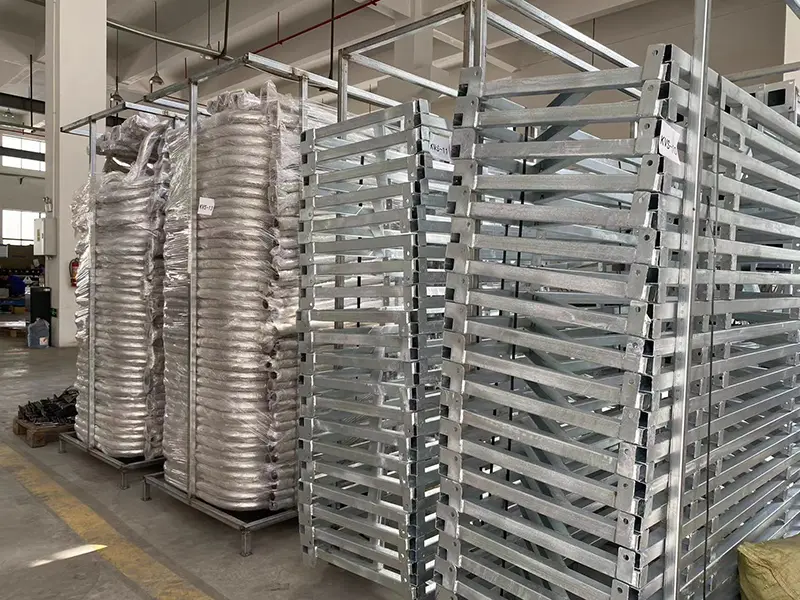

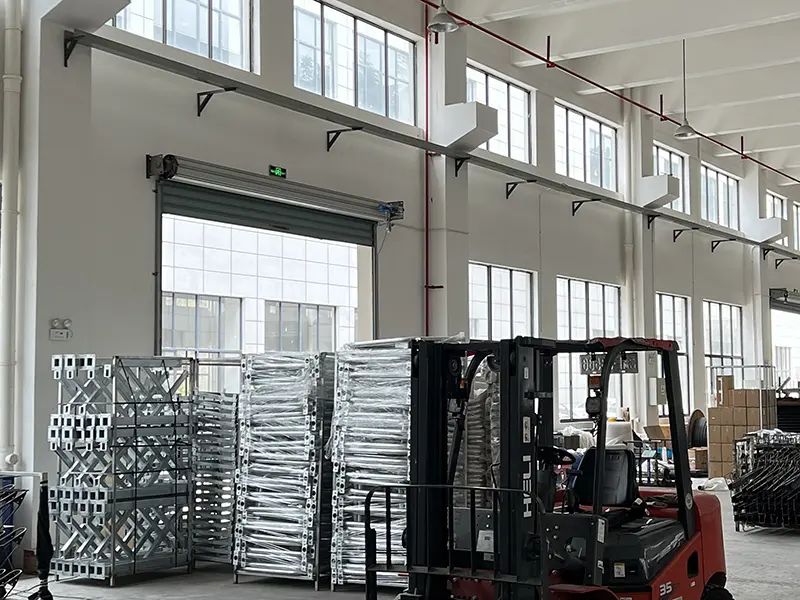

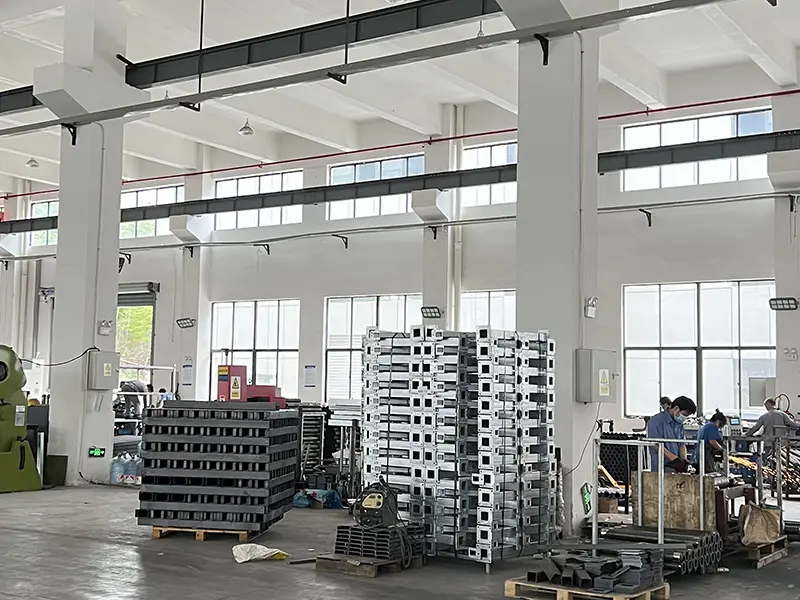

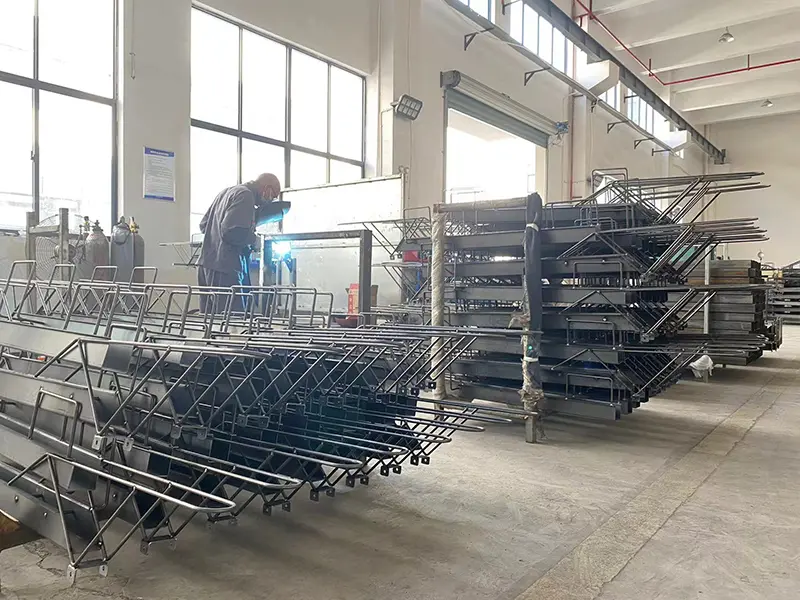

Our production base is equipped with advanced machinery and modern manufacturing processes, supported by a skilled engineering and quality control team. From raw material selection to final inspection, every step is carefully managed to ensure consistent product performance and long-term reliability. This enables us to meet the demands of various applications, from standard products to customized project requirements.
Comprehensive protection solutions engineered for municipal, commercial, and industrial facilities.
Fixed, fold-down, telescopic, removable, automatic, and lighting bollards for perimeter security and access control.

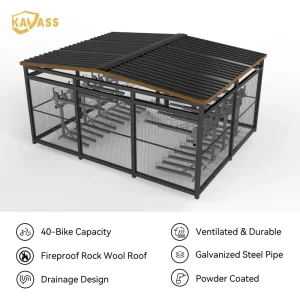

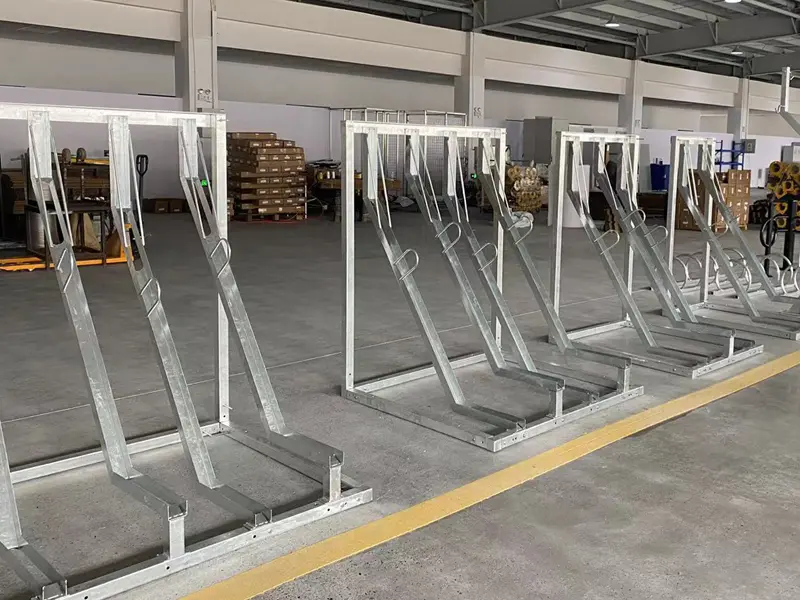

Durable and space-saving bicycle parking systems for commercial and residential areas.
Safety barriers, guardrails, and protective equipment for industrial and construction environments.
Benches, bins, and other customized outdoor furniture solutions for public spaces.
Manual, remote-controlled, solar, and IoT smart parking locks for modern parking management.
Navigating the complex requirements of industrial chemical storage
In hazardous material storage, compliance is a safety requirement. Under the National Fire Protection Association (NFPA) Code 30 and the Occupational Safety and Health Administration (OSHA) 1910.106 regulations, storage cabinets are required to meet specific design and testing criteria to hold flammable liquids. Our custom-designed safety cabinets are built to meet these rigorous standards.
Key requirements include a continuous door lock mechanism, a liquid-tight containment sump, and proper grounding points to prevent static electricity build-up. Additionally, the cabinet's internal temperature must remain below 325°F (162.7°C) during a standard 10-minute fire test. Our cabinets feature a double-walled steel design with an insulating air space to meet these requirements.
For operations in European jurisdictions or facilities following global environmental health and safety (EHS) guidelines, safety cabinets must meet the European standard EN 14470-1. This standard classifies cabinets based on their fire resistance duration: Type 30 (30 minutes of protection) and Type 90 (90 minutes of protection).
To meet these requirements, we offer custom-configured hybrid safety cabinets. These units combine the structural strength of our standard steel designs with high-performance insulation layers, offering the protection levels required for international projects.
Every facility has unique layouts, workflow patterns, and chemical footprints. As a direct manufacturer, we offer a range of customization options to tailor our 45-gallon fire cabinets to your needs:

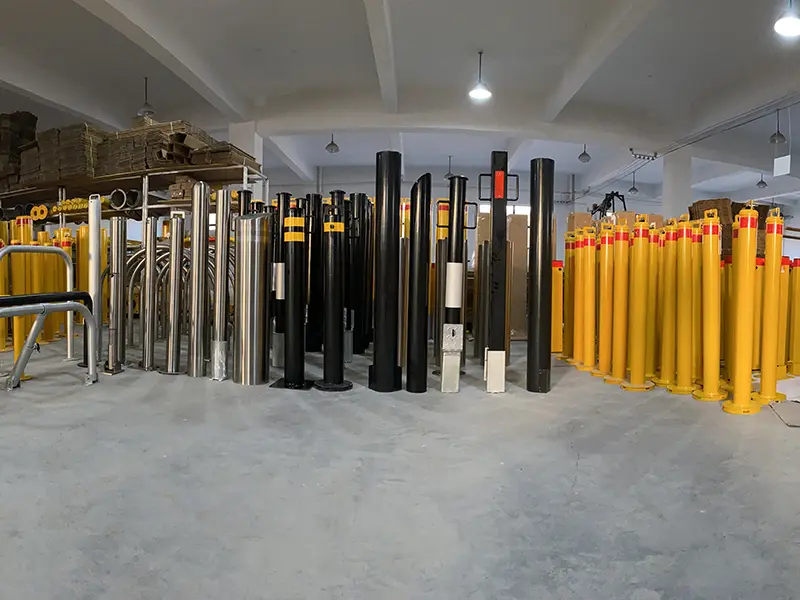

With an 18-year manufacturing track record, our dual-facility setup ensures consistent production and quality control.
With an established export network, KAVASS has built long-term partnerships with customers in more than 80 countries and regions, including Europe, the Middle East, Southeast Asia, and North and South America. Our experience in international markets allows us to understand local standards, project requirements, and customer expectations.
Driven by a commitment to quality, utility, and continuous improvement, KAVASS aims to deliver products that combine functionality with long-term value. We support our partners with reliable solutions that enhance safety, optimize space management, and contribute to efficient urban and industrial environments.
Preventing physical damage to critical chemical storage areas
In busy industrial environments, physical hazards are a constant consideration. Forklifts, pallet jacks, and heavy machinery operating near chemical storage cabinets present a collision risk. If a forklift impacts a cabinet containing 45 gallons of flammable liquids, it could breach the double-walled steel, compromise the seals, or cause chemical spills.
To address this risk, we design integrated physical protection layouts. Our heavy-duty carbon steel and stainless steel fixed bollards, guardrails, and U-type shelf protectors are installed around chemical storage zones. These barriers absorb impact energy, protecting the safety cabinets and maintaining facility integrity.
Our safety barriers are manufactured using high-tensile Q235 and Q345 steel tubes, hot-dip galvanized to prevent corrosion. When installed around chemical storage cabinets, they create a physical perimeter that prevents heavy equipment from colliding with safety systems.
For facilities requiring flexible layouts, we offer removable and telescopic bollards. These barriers can be lowered or removed when chemical deliveries are being loaded, and secured back in place to maintain a protective barrier.
KAVASS Security Tech Limited is a professional manufacturer specializing in traffic safety and security solutions, with over 18 years of industry experience.
Critical engineering and regulatory information for procurement professionals
Heavy-duty access control, bike parking systems, and protective barriers for commercial facilities.
If you are interested in our industrial safety and storage solutions, please contact our sales team. We can assist with engineering drawings, technical specifications, and project quotations.
