ODM KAVASS In-Ground Oval-Lock Removable Bollard – Secure & Tool-Operated, Hidden Installation, Modern Design Manufacturers, Manufacturer

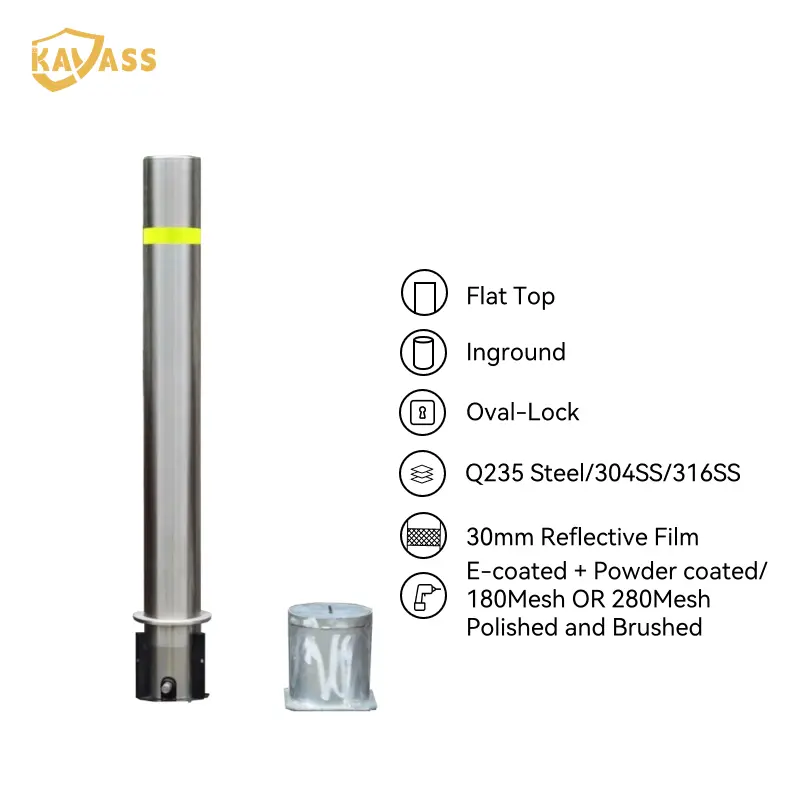

Manufactured by KAVASS, this in-ground removable bollard features a unique Oval-Lock mechanism — an oval-shaped slot on top that allows secure removal using a dedicated tool, without keys or padlocks. Available in carbon steel (Q235) or stainless steel (304/316) with durable surface treatment.

Material: Q235 / 304SS / 316SS, high strength
Surface:

Q235: Galvanized + powder coated

SS: Polished & brushed (180/280 mesh)

Lock system: Oval-Lock design, tool-operated for security and ease
Installation: Embedded sleeve in ground, concealed when not in use
Reflective film: 30mm 3M tape, 1 piece
Customizable size, 30-day lead time

Send Inquiry

Product Description

📋 Product Specifications

Model	Material	Diameter	Height	Thickness	Size of embedded part
KVS-REB(AIK)-114.900.3	Q235 Steel/ 304SS/316SS	114	900	3	∅180H190T4

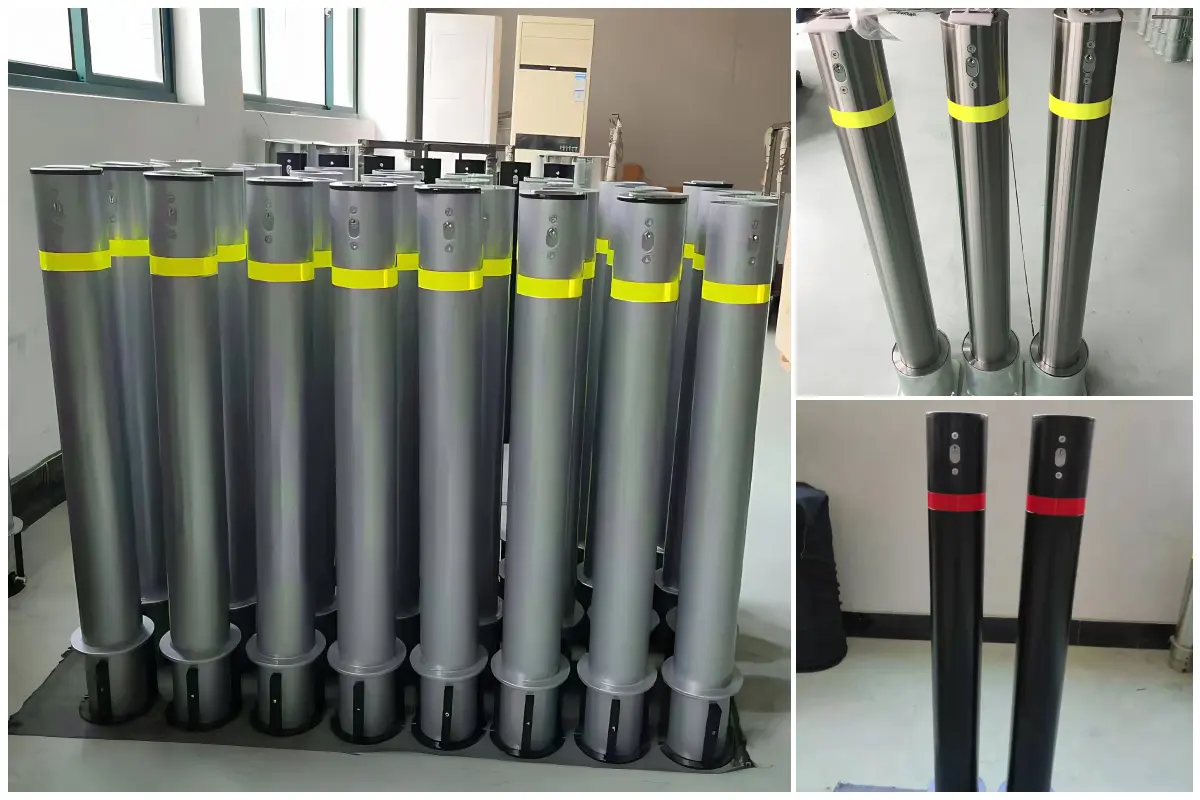

📸 Detail Pictures

⚙️ Related Products Specifications

Parameters of other Surface mounted removable bollard

Diameter	Height	Wall Thickness	Material	Lock	Type	Finish
89mm	960mm	3mm	Carbon steel/304SS/316SS	Keylock	Rotate	Carbon steel: E-coated and powder coated Stainless steel: Satin polish
89mm	1140mm	3mm	Carbon steel/304SS/316SS	Keylock	Rotate
140mm	960mm	3mm	Carbon steel/304SS/316SS	Keylock	Rotate
140mm	1140mm	3mm	Carbon steel/304SS/316SS	Keylock	Rotate
89mm	960mm	3mm	Carbon steel/304SS/316SS	Pad/Keylock	Slide
89mm	1140mm	3mm	Carbon steel/304SS/316SS	Pad/Keylock	Slide
140mm	960mm	3mm	Carbon steel/304SS/316SS	Pad/Keylock	Slide
140mm	1140mm	3mm	Carbon steel/304SS/319SS	Pad/Keylock	Slide

💡 Remarks

Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

🔗 Related Products

❓ Frequently Asked Questions (FAQ)

1. What materials are used for the removable bollards?

Our removable bollards are manufactured using high-quality materials including Q235 Carbon Steel, 304 Stainless Steel (304SS), and 316 Stainless Steel (316SS) to ensure exceptional strength and durability.

2. What are the standard finishing options available?

Carbon steel bollards default to hot-dip galvanizing or E-coating combined with a powder-coated finish for optimal weather protection. Stainless steel bollards come standard with a premium satin polished finish.

3. What types of locking mechanisms are available?

Depending on the specific model and your security requirements, we offer both built-in Keylock options (typical for Rotate type bollards) and Padlock/Keylock options (typical for Slide type bollards).

4. Can I get custom diameters and heights for these bollards?

Our standard range includes diameters of 89mm, 114mm, and 140mm, with heights of 900mm, 960mm, and 1140mm. For specific custom sizing requests, please contact our engineering team.

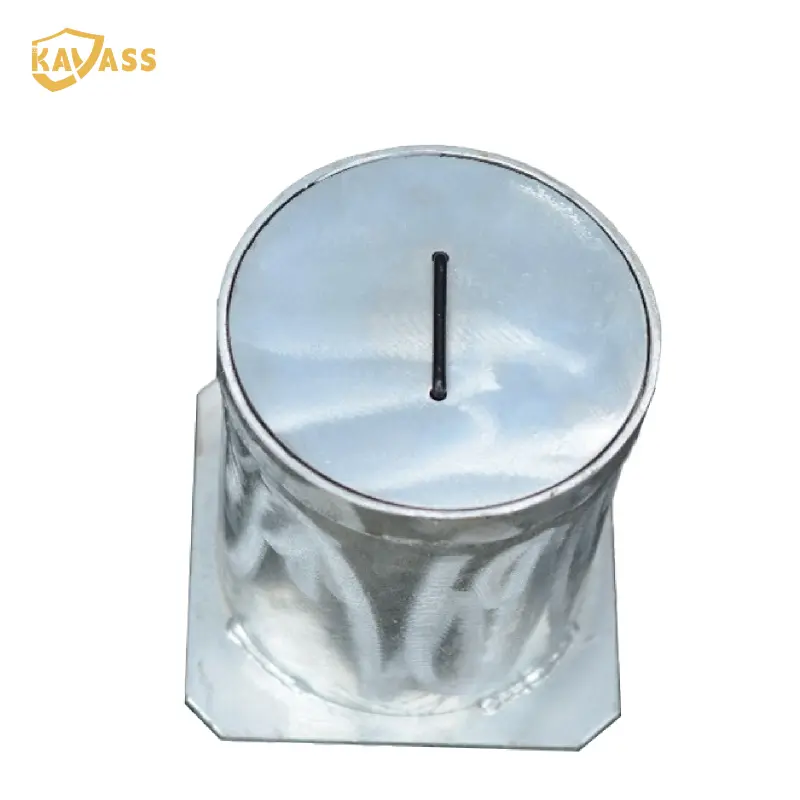

5. What is the size of the embedded base part?

For our standard KVS-REB(AIK)-114.900.3 model, the embedded sleeve base dimension is ∅180mm * H190mm with a thickness of 4mm, providing robust ground stabilization.

6. Are these bollards suitable for outdoor traffic control?

Yes, these surface-mounted and in-ground removable bollards are specifically designed for reliable outdoor traffic control, parking protection, and restricted access management.
