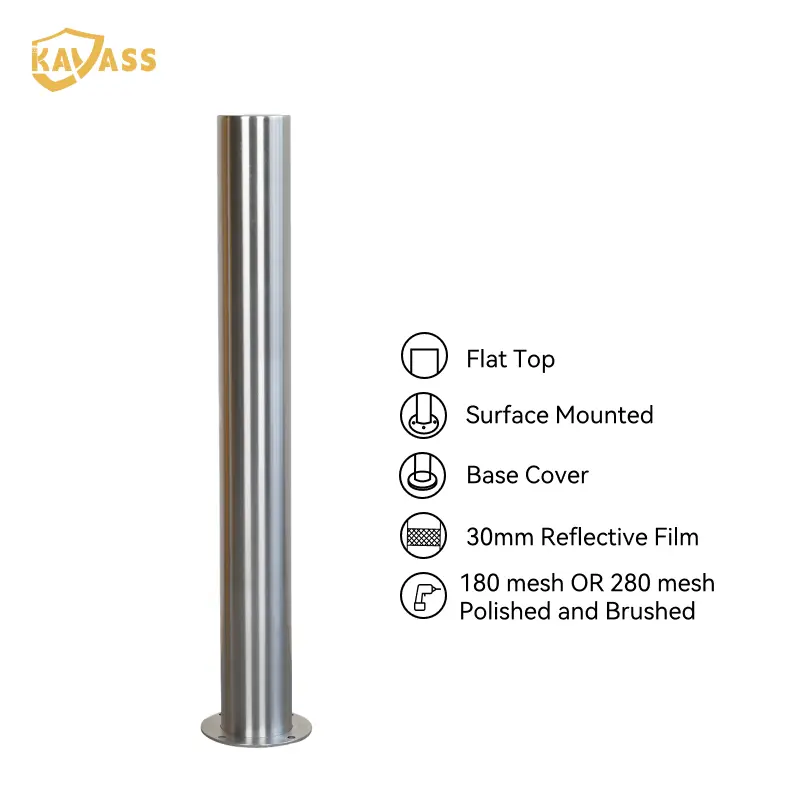

China KAVASS Surface Mounted Stainless Steel Fixed Bollard – 304/316 SS | Polished & Brushed Finish Manufacturers, Factory

KAVASS stainless steel bollards are developed for projects where both visual quality and corrosion resistance are essential. Using 304 or 316 stainless steel, these posts are suitable for environments that demand a clean appearance alongside long-term durability.

Different surface finishes are available, including brushed and polished textures (180 / 280 mesh), allowing the bollards to match various architectural styles. Compared to coated steel alternatives, stainless steel provides a more refined look while maintaining resistance to moisture and environmental exposure.

The flange-mounted structure enables straightforward installation on finished surfaces using anchor bolts. Optional accessories such as base covers and reflective elements can be added depending on functional or aesthetic requirements.

Key Features

  • 304 / 316 Stainless Steel Options– Suitable for standard or high-corrosion environments
  • Multiple Surface Finishes– Brushed or polished (180 / 280 mesh) for different visual effects
  • Architectural Appearance– Designed to complement modern commercial spaces
  • Surface Mount Installation– Fixed with anchor bolts on concrete or paved ground
  • Optional Add-Ons– Reflective strip, groove, and decorative base cover available
  • Fast Availability– Standard models ready for quick dispatch

Product Description

Product Specification

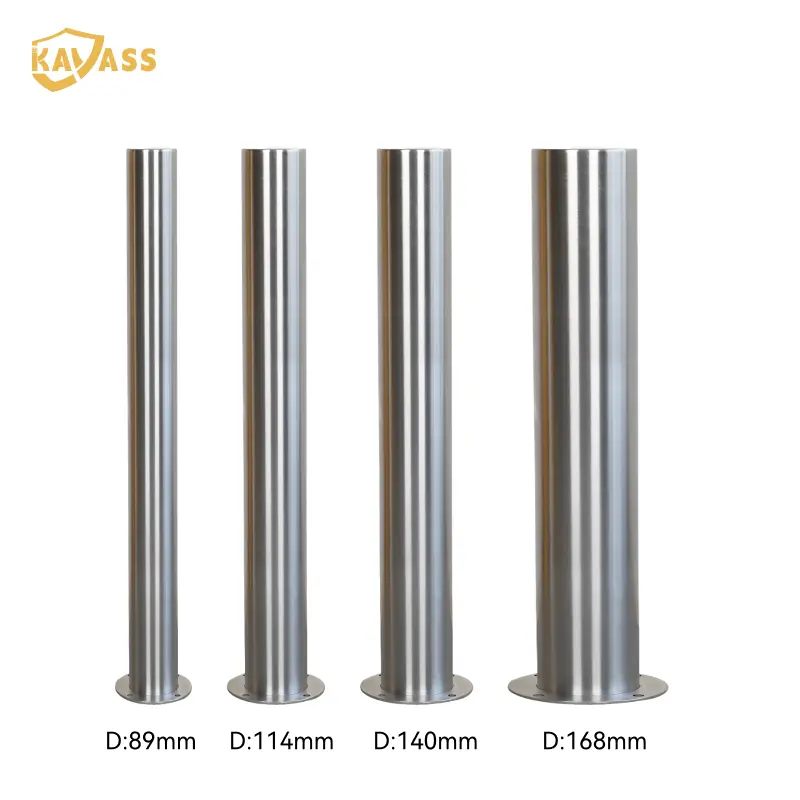

Model Material Diameter (mm) Height (mm) Thickness (mm) Size of Base Plate Base Cover
KVS-FB(SM)- 89.900.3-6 304SS/316SS 89 900 3 ∅170*T7 D:180,d:92
KVS-FB(SM)- 114.900.3-6 304SS/316SS 114 900 3 ∅200*T7 D:253,d:116
KVS-FB(SM)- 140.900.3-6 304SS/316SS 140 900 3 ∅220*T7 D:253,d:142
KVS-FB(SM)- 165.900.3-6 304SS/316SS 165 900 3 ∅250*T7 D:273,d:168
KVS-FB(SM)- 219.900.3-6 304SS/316SS 219 1000 3 ∅300*T7 /

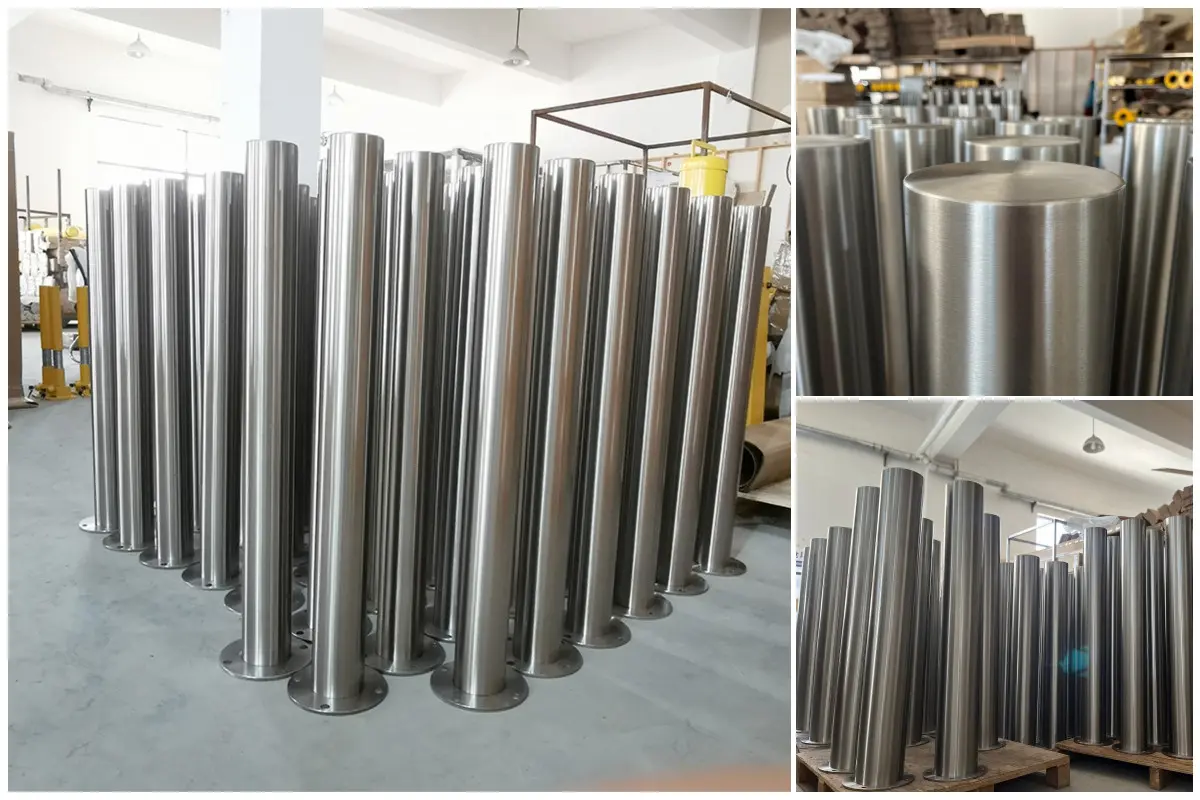

Detail Pictures

Related Products Specifications

Diameter Height Wall Thickness Base Plate Size Mounting Hole Material Head Finish
89mm 900mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized / E-coated and powder coated

Stainless steel: Satin polish
89mm 1200mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 900mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
219mm 900mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, carbon steel defaults to hot-dip galvanizing or E-coated + powder coating; stainless steel defaults to a satin polished finish.

Related Products

Frequently Asked Questions

What materials are used for these surface-mounted fixed bollards?
The bollards are available in high-quality Stainless Steel (304SS and 316SS) as well as Carbon Steel (defaulted to Q235 Steel) to ensure robust durability and performance.
What finishes are available for Carbon Steel vs. Stainless Steel bollards?
Carbon Steel bollards default to either hot-dip galvanizing or an E-coated + powder-coated finish for optimal corrosion resistance. Stainless Steel bollards feature a premium satin polished finish.
Can I choose the top head style of the bollards?
Yes. We offer Flat, Dome, and Bevel head configurations depending on your specific architectural and aesthetic requirements.
What are the standard base plate and mounting hole sizes?
Base plates range from Φ170mm to Φ300mm in diameter with a thickness of 7mm to 8mm, utilizing a standard layout of 4 mounting holes of Φ16mm.
What dimensions and heights are available?
Standard diameters range from 89mm up to 219mm, with standard heights of 900mm, 1000mm, or 1200mm, and wall thicknesses of 3mm or 5mm.
