Manufactured by KAVASS, these heavy-duty surface-mounted bollards are made from Q235 steel with a 6mm wall thickness for maximum impact resistance. Powder-coated finish ensures long-term durability and corrosion protection (E-coating + powder coating available as an option). Ideal for high-traffic areas, parking entrances, industrial sites, and perimeter security zones.

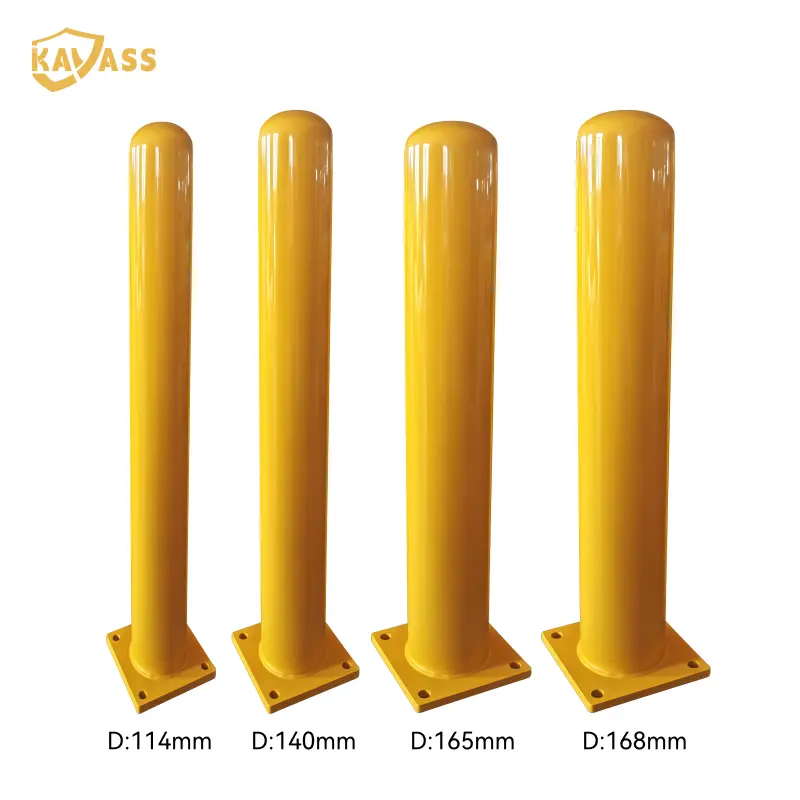

  • Multiple diameters: Ø114 / 165 / 140 / 168mm
  • Q235 steel construction with 6mm thickness for superior strength
  • Powder-coated surface (E-coated + powder coated optional), 1-year warranty
  • Includes M12×100mm expansion screws (4 pcs), compatible with 16mm flange holes
  • In-stock models ship in 3 days; customization available
  • Domed top design reduces damage during impacts
Send Inquiry

Product Description

Products Specification

Model Material Diameter (mm) Height (mm) Thickness (mm) Size of Base Plate (mm)
KVS-FB(SM)-114.1050.6-0P Carbon steel 114 1050 6 250*250*T12
KVS-FB(SM)-114.915.6-0P Carbon steel 114 915 3 or 6 200*200*T9.5
KVS-FB(SM)-114.1067.6-0P Carbon steel 114 1067 3 or 6 200*200*T9.5
KVS-FB(SM)-140.915.6-0P Carbon steel 140 915 3 or 6 254*254*T9.5
KVS-FB(SM)-140.1067.6-0P Carbon steel 140 1067 3 or 6 254*254*T9.5
KVS-FB(SM)-165.1050.6-0P Carbon steel 165 1050 6 254*254*T16
KVS-FB(SM)-168.915.6-0P Carbon steel 168 915 3 or 6 254*254*T9.5
KVS-FB(SM)-168.1067.6-0P Carbon steel 168 1067 3 or 6 254*254*T9.5

Detail Pictures & Related Products

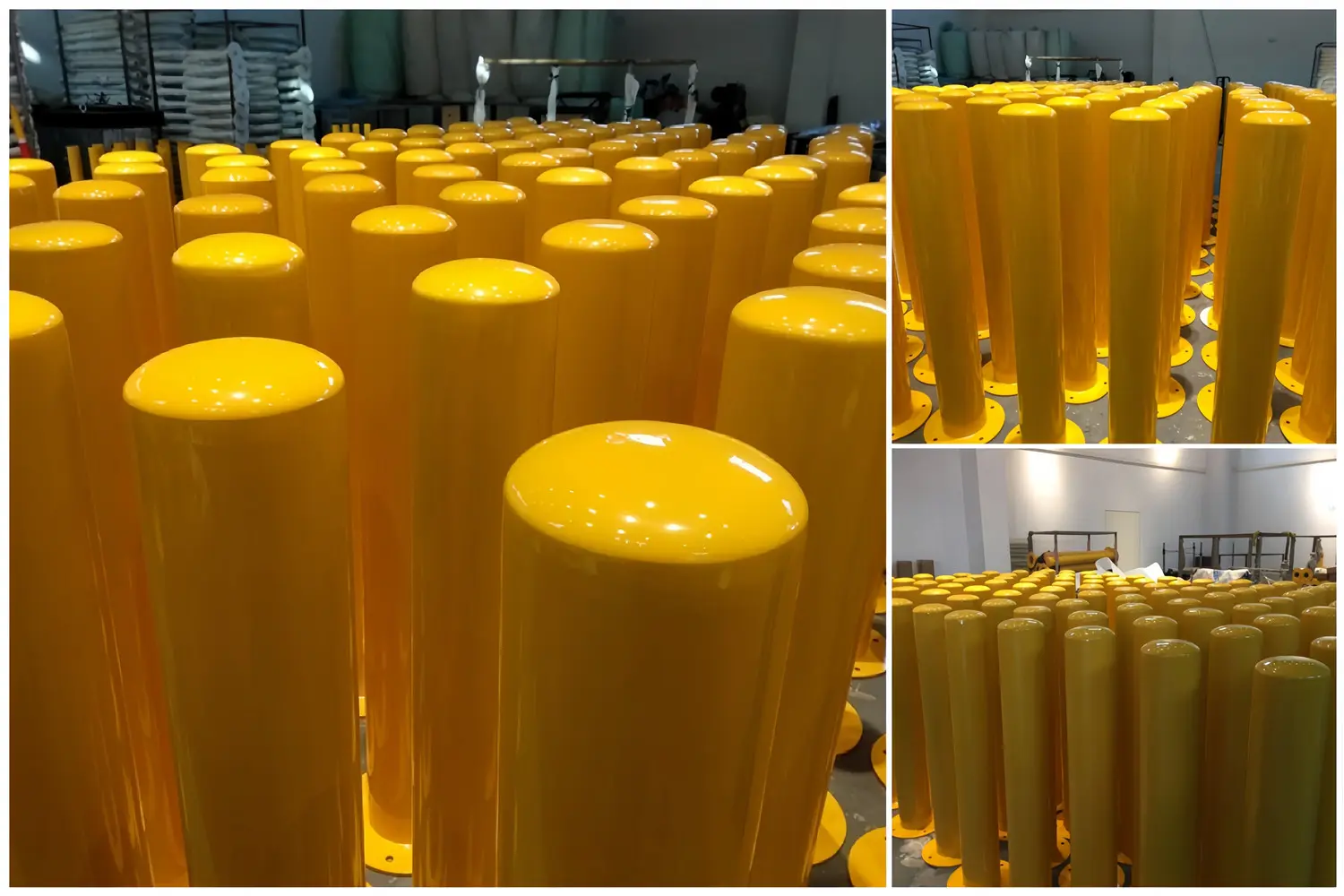

Detail Pictures

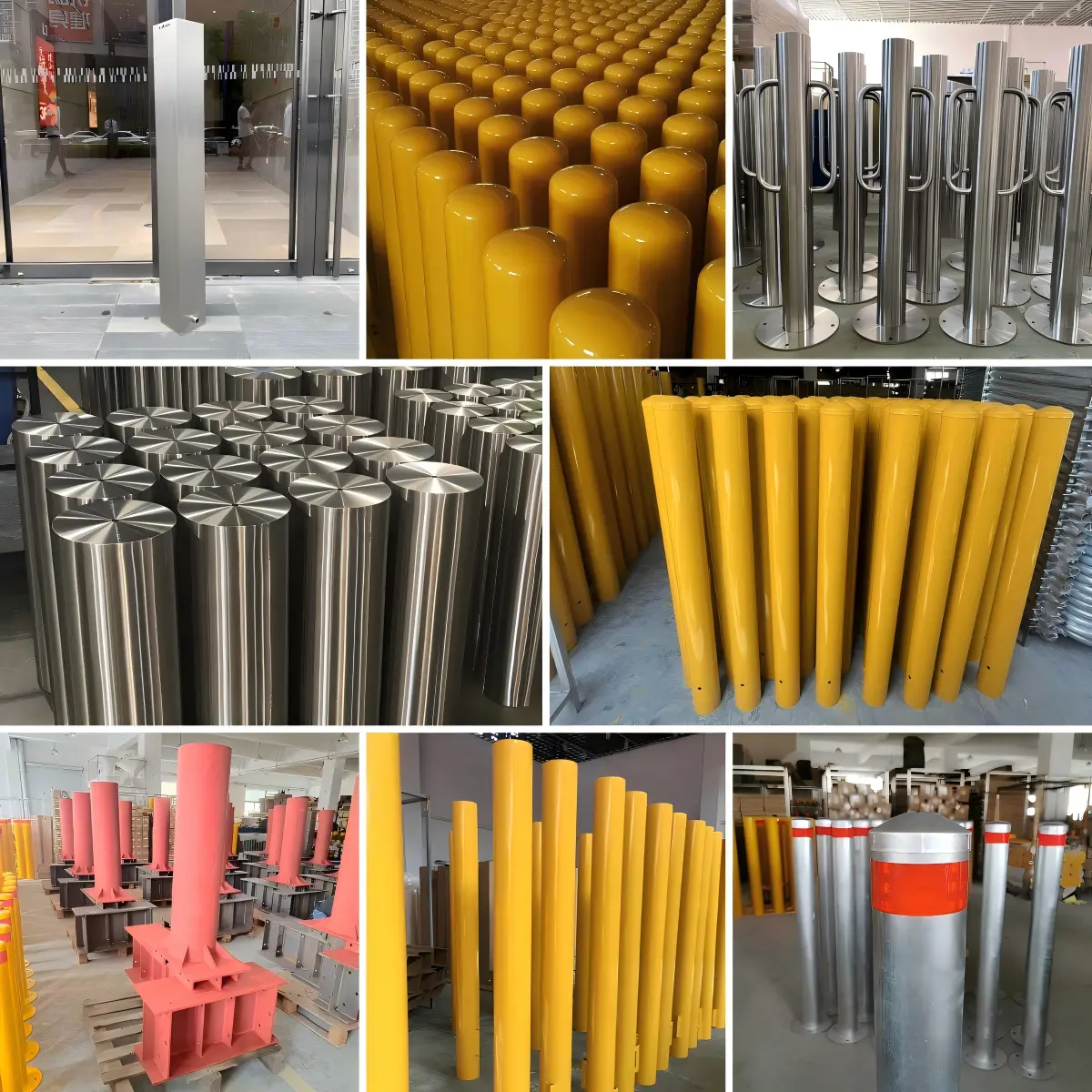

Related Products

Parameters of other Surface Mounted Fixed Bollards

Diameter Height Wall Thickness Base Plate Size Mounting Hole Material Head Finish
89mm 900mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel:
Hot dip galvanized / E-coated and powder coated

Stainless steel:
Satin polish
89mm 1200mm 3mm Φ170*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 3mm Φ200*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 3mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 5mm Φ220*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 3mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 900mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 5mm Φ250*8mm 4*Φ16mm Carbon steel Flat/Dome/Bevel
219mm 900mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 3mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 5mm Φ300*8mm 4*Φ16mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 3mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 5mm Φ250*8mm 4*Φ16mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, carbon steel defaults to hot-dip galvanizing or E-coated + powder coating; stainless steel defaults to satin polishing.

Frequently Asked Questions (FAQ)

What standard grade is used for carbon steel bollards?
The carbon steel used for our surface mounted fixed bollards defaults to standard Q235 Steel grade, ensuring reliable structural durability and strength.
What surface finish treatments are applied to the bollards?
For Carbon steel bollards, the finish is defaulted to hot-dip galvanizing or E-coated + powder coating for enhanced corrosion protection. For Stainless steel bollards, it is defaulted to a clean, modern satin polishing.
What options are available for the bollard head design?
We offer three primary styles for the bollard head: Flat, Dome, and Bevel. This allows you to match the aesthetic and functional needs of your project.
What stainless steel materials can be selected?
Depending on your environmental exposure and requirements, you can select either 304 Stainless Steel (304SS) or marine-grade 316 Stainless Steel (316SS) for maximum rust resistance.
How are these surface mounted bollards secured to the ground?

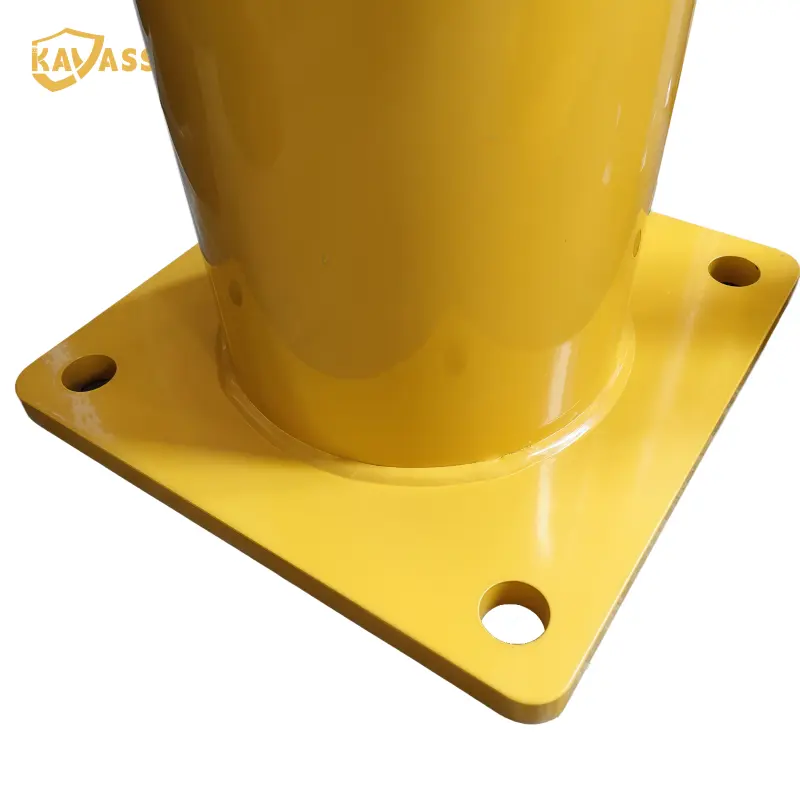

These bollards are designed with integrated heavy-duty base plates (ranging from Φ170mm up to 254x254mm or Φ300mm depending on size) that feature pre-drilled mounting holes (typically 4*Φ16mm) for secure anchoring.
