China KAVASS Fold-Down Bollard – 180° Tilt | Keylock Operation | 3-Day Delivery Product, Factories

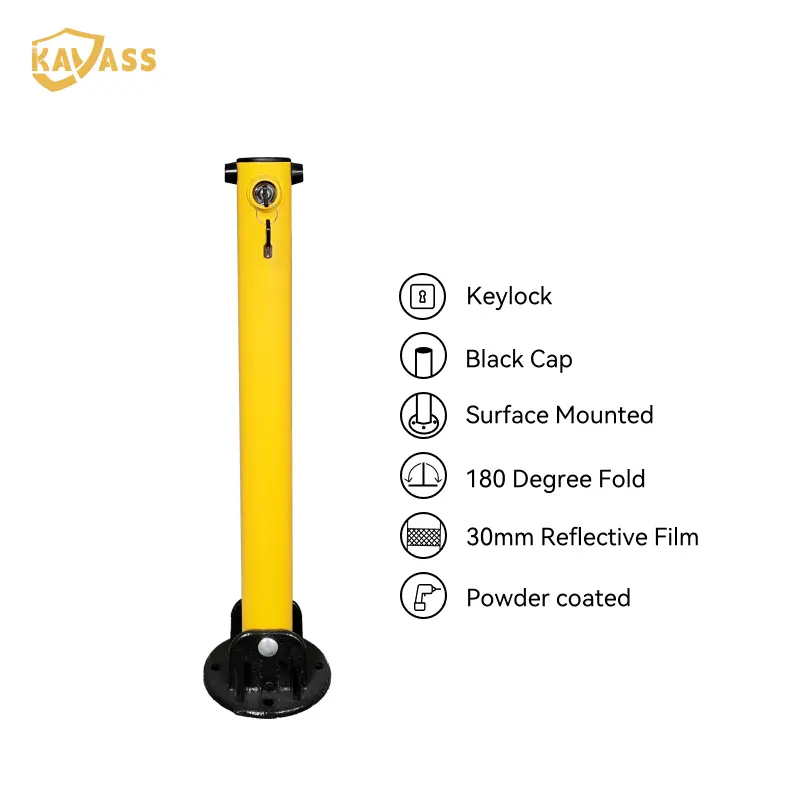

The KAVASS fold-down bollard is designed for controlled access in areas where occasional vehicle entry is required. Built from Q235 carbon steel with a protective powder-coated finish, it offers a balance between durability and ease of operation.

Its 180° folding mechanism allows the post to be fully lowered to ground level, minimizing obstruction when not in use. This space-saving design makes it especially suitable for locations with frequent access changes.

The bollard is operated באמצעות a keylock system, ensuring that only authorized users can raise or lower the post. Compared to heavy-duty fixed barriers, the 3 mm wall thickness provides a lighter yet practical solution for everyday parking management.

Key Features

  • 180° Fold-Down Design– Can be laid completely flat for unobstructed access
  • Key Lock Operation– Controlled use with secure locking mechanism
  • Space-Saving Structure– Ideal for areas with limited clearance
  • Q235 Carbon Steel Body– Strong and reliable for daily use
  • Powder-Coated Surface– Basic corrosion protection for outdoor environments
  • Flexible Installation– Flange base with optional expansion bolts

Product Description

Product Specifications

Model Material Diameter (mm) Height (mm) Thickness (mm)
KVS-FDB-60.610.3-0P Q235 Steel 60 610 3

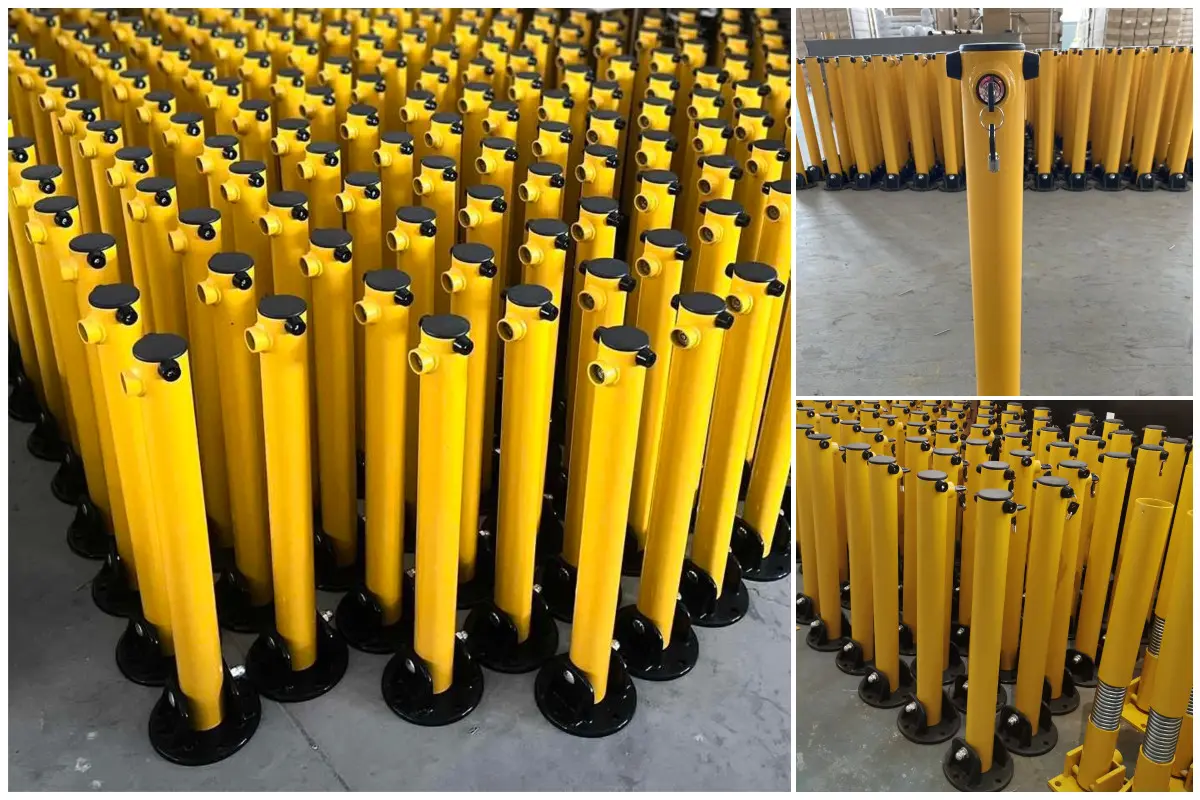

Detail Pictures

Detail Pictures

Related Products Specifications

Model Material Diameter (mm) Height (mm) Thickness (mm) Size of base plate
KVS-FB(S)-89.900.3-0H Carbon steel 89 900 3 ∅225*T8
KVS-FB(S)-114.1200.3-0H Carbon steel 114 1200 3 ∅225*T8
KVS-FB(S)-140.1200.3-0H Carbon steel 140 1200 3 ∅250*T8
KVS-FB(S)-140.1300.3-0H Carbon steel 140 1300 3 ∅250*T8
KVS-FB(S)-165.1200.3-0H Carbon steel 165 1200 3 ∅300*T10
KVS-FB(S)-220.1200.3-0H Carbon steel 220 1200 3 ∅320*T8

Related Products

Related Products
Frequently Asked Questions
What materials are used for these security bollards?
The security bollards are constructed using high-quality Q235 Steel and Carbon Steel, providing excellent structural strength, durability, and resistance against impact.
What are the available dimensions for these models?
We offer various standard sizes. Heights range from 610mm up to 1300mm, diameters range from 60mm to 220mm, and the wall thickness is standard at 3mm to ensure optimal durability.
What is the significance of the base plate?
The base plate allows for secure surface mounting. Depending on the model's dimensions, the base plates range in size from ∅225*T8 to ∅320*T8, ensuring a solid foundation when bolted to concrete.
Are these bollards suitable for outdoor use?
Yes, both the Q235 Steel and Carbon Steel bollards are designed for harsh outdoor environments, providing long-term reliability and resistance to weathering.
Can I install these products on asphalt surfaces?
For maximum stability and security, it is highly recommended to mount these bollards onto a solid concrete foundation using appropriate expansion anchors through the pre-drilled base plate.
