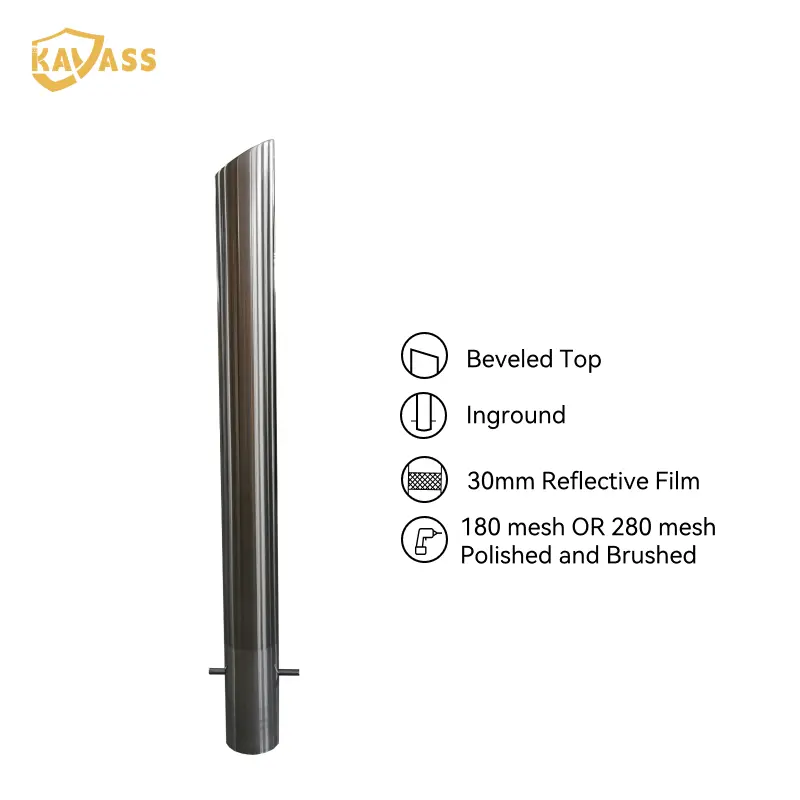

Manufactured by KAVASS, this in-ground fixed bollard features a sleek beveled top design and is made from 304 or 316 stainless steel with brushed or polished finish. Ideal for commercial buildings, airports, and urban infrastructure where durability and aesthetics matter.

  • Material: 304 / 316 SS, corrosion-resistant
  • Surface: Brushed or polished, premium appearance
  • Top: Beveled cap – modern look, prevents water accumulation
  • Installation: Fixing bar at base for concrete pouring
  • 30-day lead time
Send Inquiry

Product Description

Product Specifications

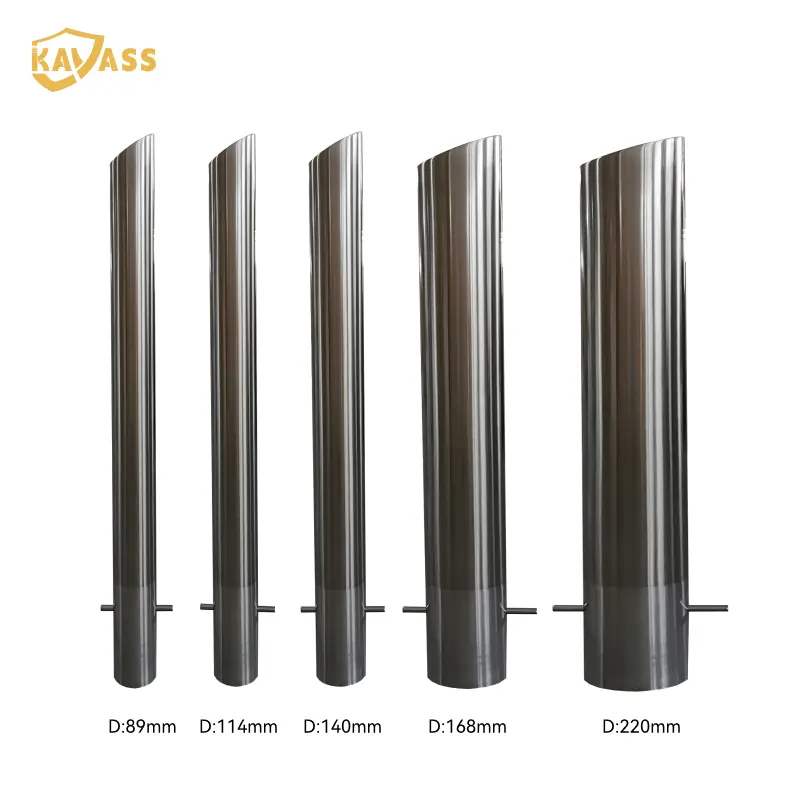

Model Material Diameter (mm) Height (mm) Thickness (mm) Accessories
KVS-FB(I)-89.1200.3-6-B 304SS/316SS 89 900+300 3 A fix bar in the bottom
KVS-FB(I)-114.1200.3-6-B 304SS/316SS 114 900+300 3 A fix bar in the bottom
KVS-FB(I)-140.1200.3-6-B 304SS/316SS 140 900+300 3 A fix bar in the bottom
KVS-FB(I)-168.1200.3-6-B 304SS/316SS 168 900+300 3 A fix bar in the bottom
KVS-FB(I)-220.1200.3-6-B 304SS/316SS 220 900+300 3 A fix bar in the bottom

Detail Pictures

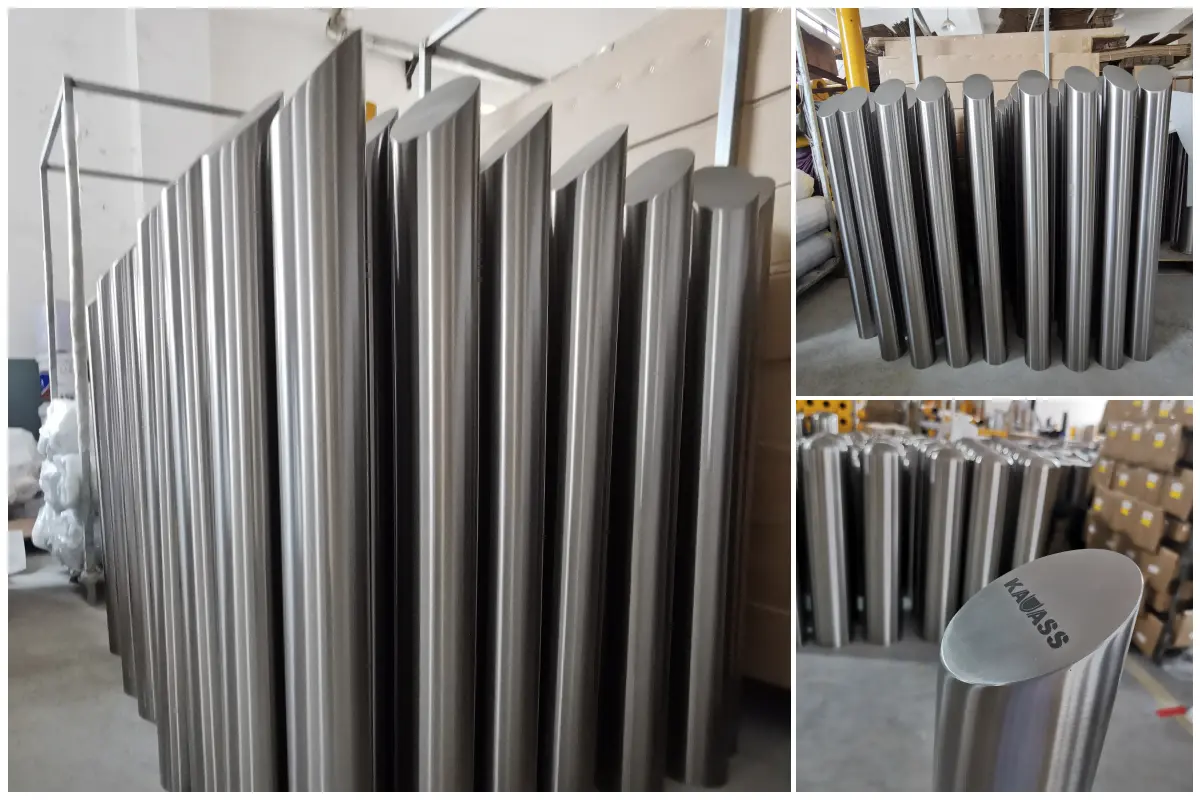

Detail Pictures of Fixed Bollard

Related Products Specifications

Parameters of other In-ground fixed bollard

Diameter Height above ground Depth under ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized / E-coated and powder coated

Stainless steel: Satin polish
89mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 900mm 300mm 5mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat/Dome/Bevel
219mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot-dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.

Related Products

Related Security Bollards

Frequently Asked Questions

Q: What materials are used for these fixed bollards?
A: The bollards are manufactured using high-quality 304 Stainless Steel (304SS), 316 Stainless Steel (316SS), or Q235 Carbon Steel, depending on your performance and environmental requirements.
Q: What are the default surface finishes for the carbon steel and stainless steel bollards?
A: Carbon steel bollards are finished with hot-dip galvanizing or E-coated + powder coating for superior corrosion resistance. Stainless steel bollards feature a premium satin polished finish.
Q: Can I customize the dimensions and wall thickness?
A: Yes, we offer standard diameters from 89mm up to 219mm, with wall thicknesses of 3mm or 5mm. Height specs typically range from 900mm to 1200mm above ground with a 300mm depth under ground.
Q: What head shapes are available for the bollards?
A: We offer three standard head profiles to fit your architectural aesthetic: Flat, Dome, and Bevel.
Q: Do the in-ground fixed bollards come with anchoring accessories?
A: Yes, the bollards come equipped with a fixed bar at the bottom to ensure stable, secure anchoring into the concrete foundation.
