When security must be invisible until it’s needed, this in-ground telescopic bollard delivers silent authority without compromising design. Fully recessed into the pavement when not in use, it leaves only a seamless stainless steel cover at surface level—ideal for high-end plazas, government entrances, and private estates where clean lines and controlled access go hand in hand.

  • Vanishes into the ground – When lowered, only a flush stainless steel cover remains, preserving clean pavement lines and pedestrian safety.
  • Rises on command – A single key turn lifts the post to full height; no power, no noise, just reliable mechanical action.
  • Built for decades, not seasons – Seamless 304/316 stainless steel with brushed finish resists salt, rain, and urban grime without rust or fading.

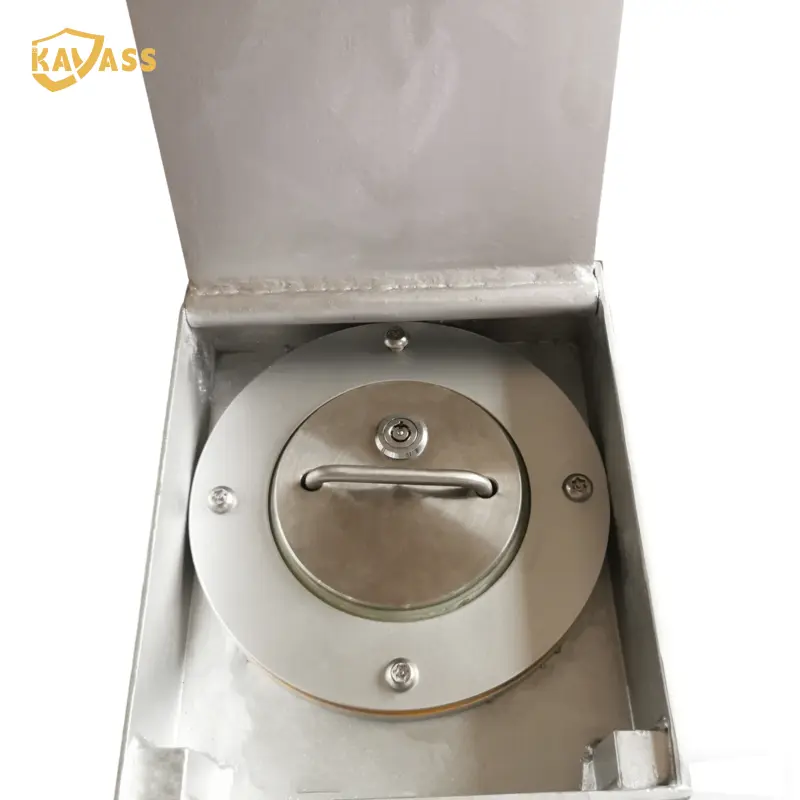

  • No exposed parts, no weak points – The lock and mechanism are fully enclosed, shielded from tampering, vandalism, and weather.
  • Architect-friendly design – Zero above-ground hardware when retracted—ideal for plazas, lobbies, and heritage sites where aesthetics matter.
  • Made for your project, not just your specs – Customize height (600–1200mm), add laser-etched logos, or match existing finishes via OEM/ODM.
  • Factory-direct quality & timeline – As the original manufacturer, we deliver fully tested units in 30 days, anywhere in the world.

Product Description

Product Specifications
Model Material Diameter (mm) Height (mm) Thickness (mm)
KVS-RCB(K)-76.500.3 304SS/316SS 76 500 3
KVS-RCB(K)-89.600.3 304SS/316SS 89 600 3
KVS-RCB(K)-114.670.3 304SS/316SS 114 670 3
Detail Pictures

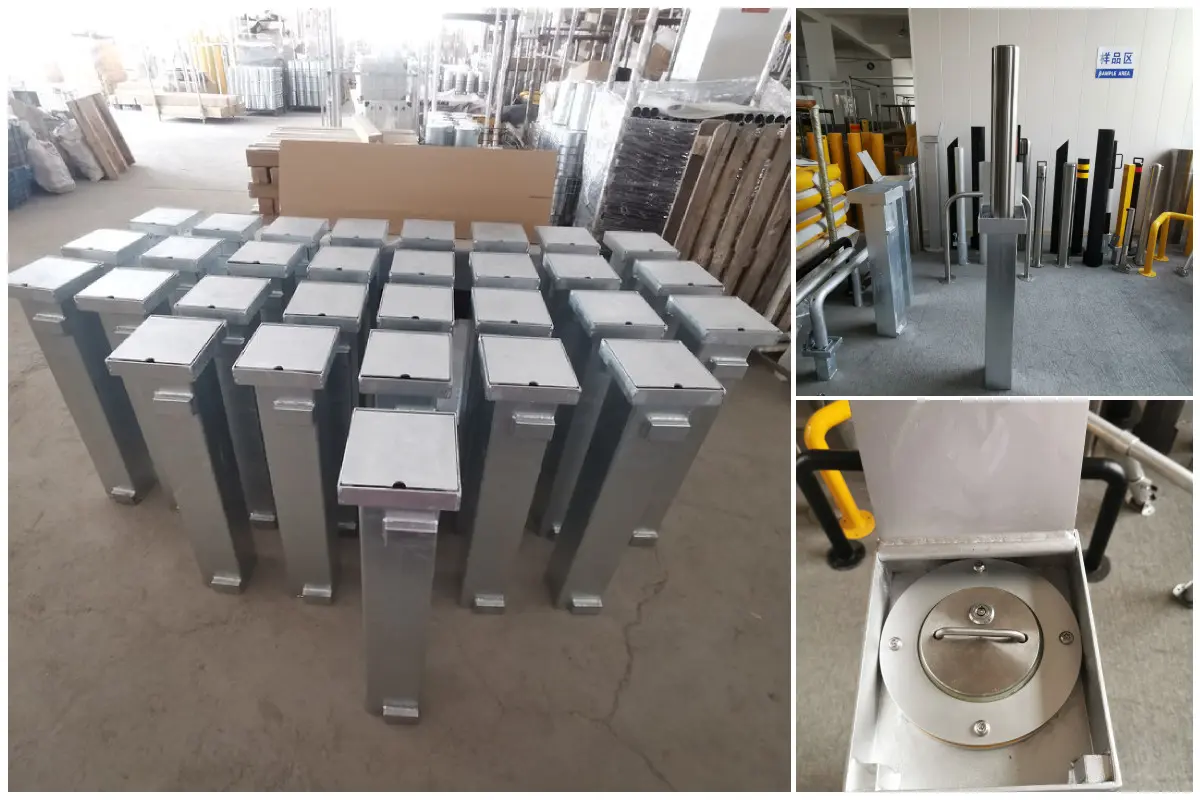

Detail Pictures of Manual Telescopic Bollard
Related Products Specifications
Parameters of other Manual telescopic bollards
Diameter Height Depth Under Ground Wall Thickness Material Lock Type Finish
76mm 500mm 705mm 3mm Carbon steel / 304SS / 316SS Key lock Carbon steel: E-coated & powder coated
Stainless steel: Satin polish
89mm 600mm 845mm 3mm Carbon steel / 304SS / 316SS Key lock
114mm 900mm 1128mm 3mm Carbon steel / 304SS / 316SS Key lock
114mm 900mm 1082mm 3mm Carbon steel / 304SS / 316SS Oval lock
Remarks: Carbon steel is defaulted to Q235 Steel. For the finish, carbon steel defaults to hot-dip galvanizing or E-coated + powder coating; stainless steel defaults to a clean satin polishing.
Related Products

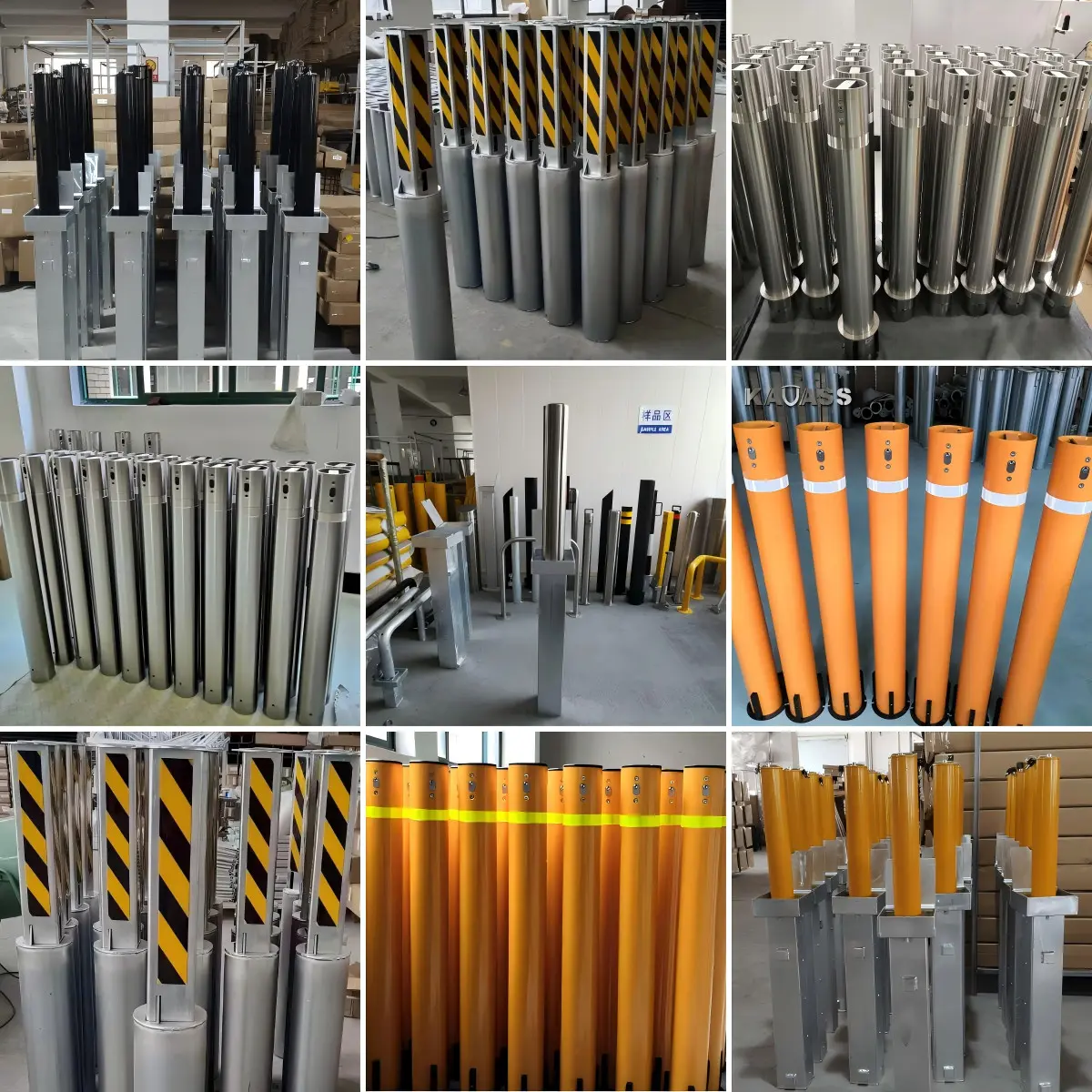

Related Manual Telescopic Bollard Models
Frequently Asked Questions (FAQ)
Q What are the primary materials used for these manual telescopic bollards?
These manual telescopic bollards are manufactured using high-grade Stainless Steel (available in 304SS and 316SS grade options) or heavy-duty Carbon Steel (defaulted to premium Q235 steel) to ensure long-lasting durability and impact resistance.
Q What finishes are applied to the carbon steel and stainless steel options?
For carbon steel bollards, the standard finish is hot-dip galvanizing or E-coated combined with a tough powder coating. Stainless steel bollards feature a sleek, modern satin polished finish for maximum corrosion resistance.
Q What types of locking systems are available?
Depending on the chosen model and your security requirements, we offer telescopic bollards with integrated security Key Locks or Oval Locks for convenient manual operation.
Q How deep underground do these manual telescopic bollards need to be installed?
The required depth underground varies based on the height of the bollard. Underground depths range from 705mm (for a 500mm high bollard) up to 1128mm (for a 900mm high bollard) to guarantee stable, solid foundation support.
Q What wall thickness options do you offer?
Our standard manual telescopic bollard models feature a robust wall thickness of 3mm, providing an optimal balance of structural strength and ease of manual lifting.
