| Model | Material | Diameter (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|---|
| KVS-RCB(O)-114.600.3-6 | 304SS/316SS | 114 | 600 | 3 |
| KVS-RCB(O)-114.900.3-6 | 304SS/316SS | 114 | 900 | 3 |
Parameters of other Manual telescopic bollards:
| Diameter | Height | Depth Under Ground | Wall Thickness | Material | Lock Type | Finish Type |
|---|---|---|---|---|---|---|
| 76mm | 500mm | 705mm | 3mm | Carbon steel / 304SS / 316SS | Key lock | Carbon steel: E-coated and powder coated Stainless steel: Satin polish |
| 89mm | 600mm | 845mm | 3mm | Carbon steel / 304SS / 316SS | Key lock | |
| 114mm | 900mm | 1128mm | 3mm | Carbon steel / 304SS / 316SS | Key lock | |
| 114mm | 900mm | 1082mm | 3mm | Carbon steel / 304SS / 316SS | Oval lock |
They are available in Carbon Steel (defaulted to high-quality Q235 Steel), 304 Stainless Steel (304SS), and 316 Stainless Steel (316SS).

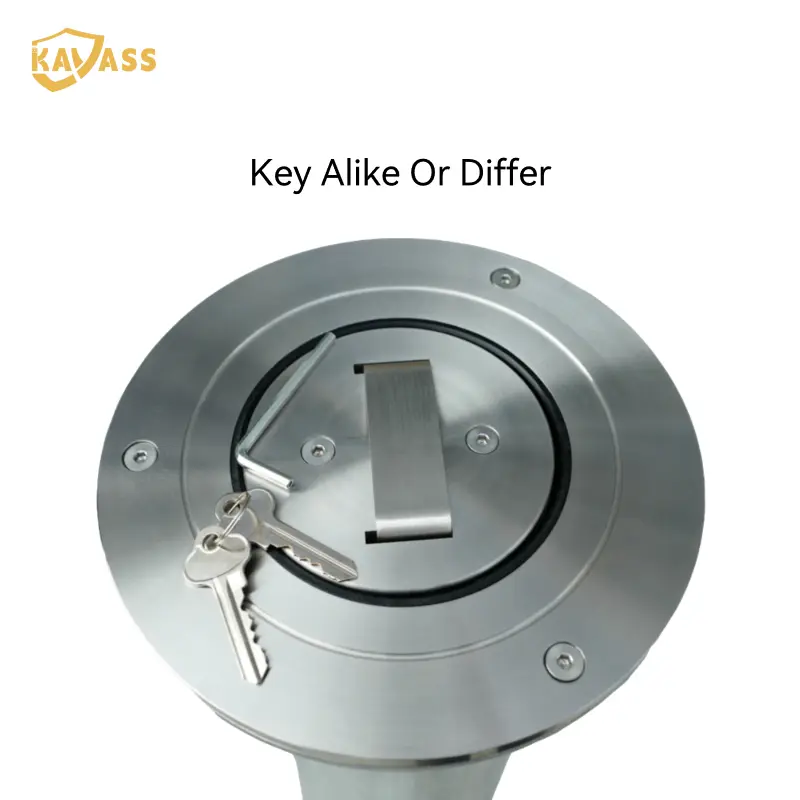

The manual telescopic bollards support either standard Key locks or Oval locks, depending on the specific model requirements.
Carbon steel bollards feature hot-dip galvanizing or E-coating + powder coating finishes. Stainless steel bollards are finished with standard satin polishing.
The standard default wall thickness for the listed manual telescopic bollard models is 3mm.
The underground foundation depths range from 705mm to 1128mm depending on the selected height (500mm, 600mm, or 900mm) of the bollard.
