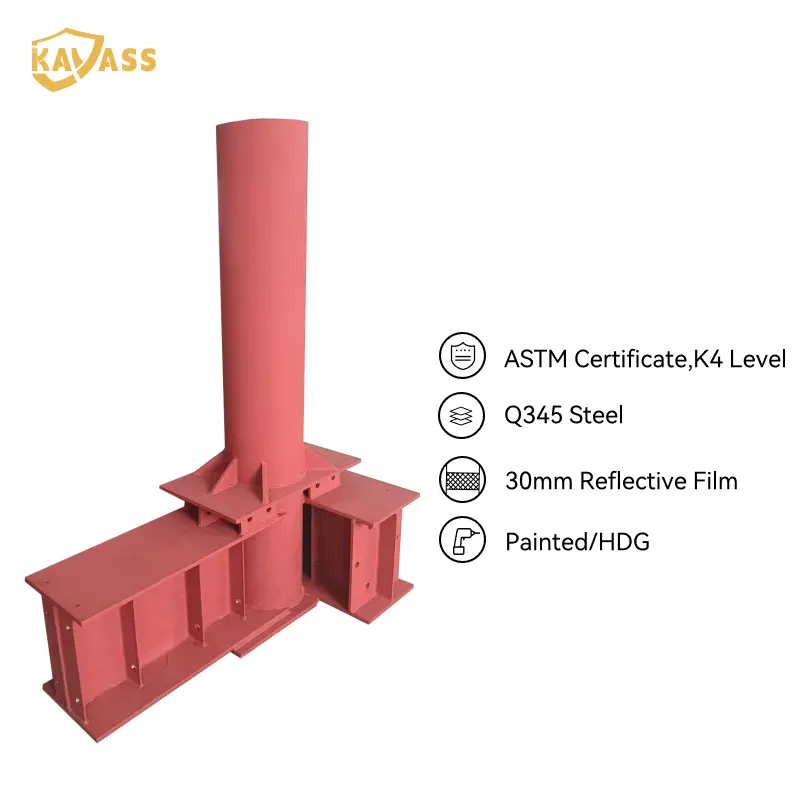

Manufactured by KAVASS, this M30 fixed bollard is ASTM K4 certified, offering high-level impact resistance for highways, bridges, and government facilities. Made from Q345 steel with painted or hot-dip galvanized finish, it features an integrated steel base for quick installation without concrete pouring.

  • Certification: ASTM K4 Level – international safety standard
  • Material: Q345 high-strength steel, superior impact resistance

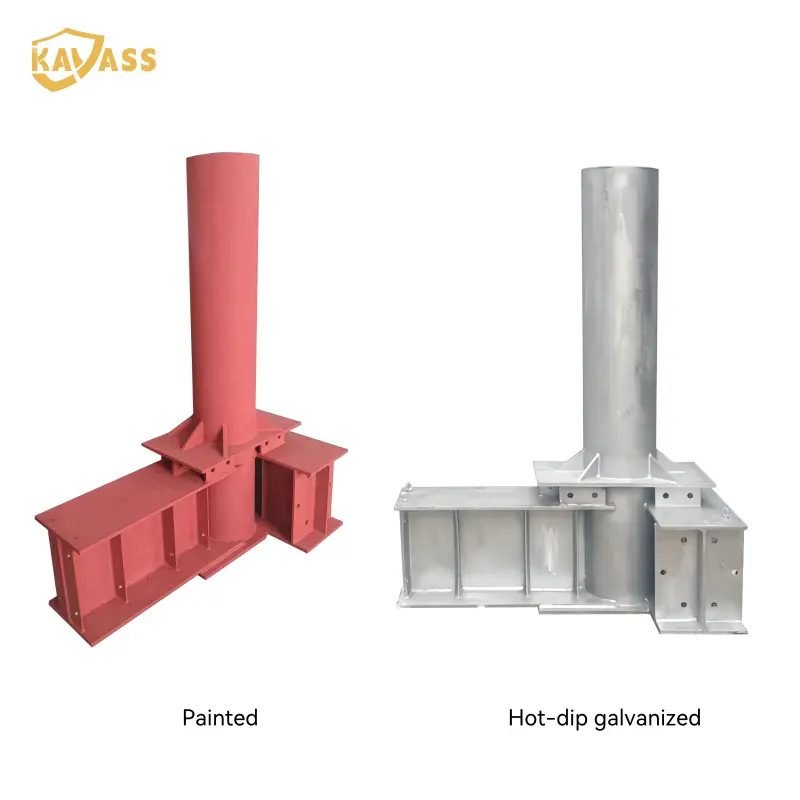

  • Surface: Painted or hot-dip galvanized, corrosion-resistant

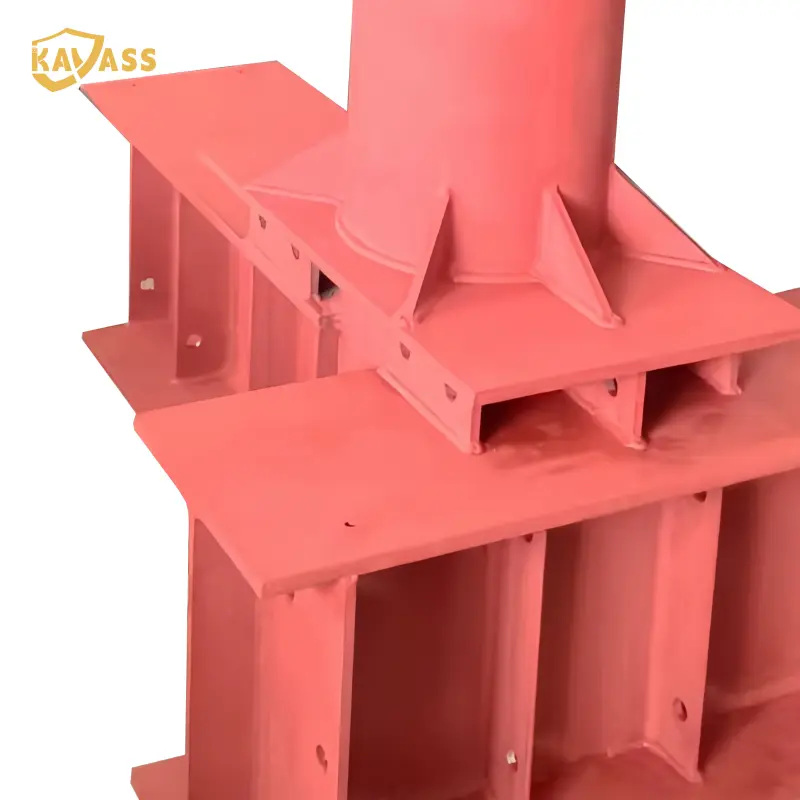

  • Installation: Integrated steel base – no excavation required
  • Top: Flat cap, optional 30mm reflective film
Send Inquiry

Product Description

Product Specifications
Model Material Diameter Height Thickness Anti-collision class
KVS-M30-FB Q345 Steel 273 1000+600 20 K4

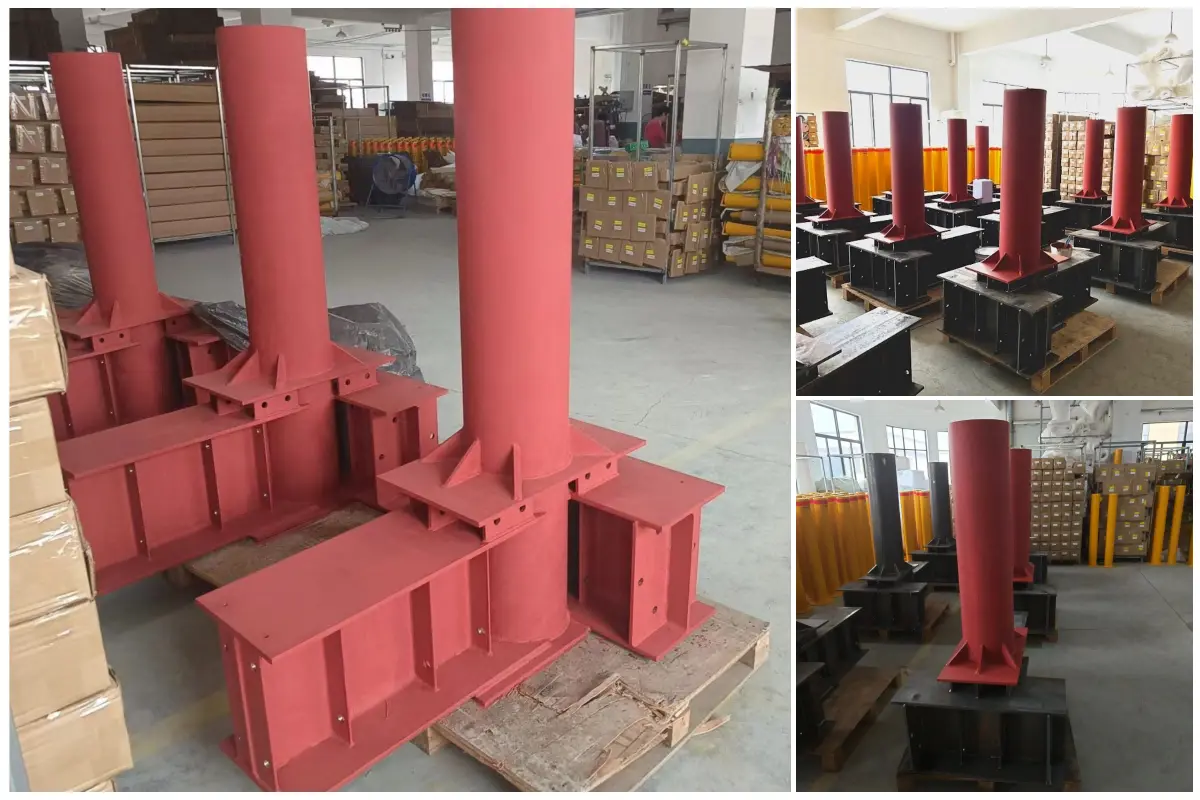

Detail Pictures
Detail Pictures
Related Products Specifications
Parameters of other In-ground fixed bollard
Diameter Height above ground Depth under ground Wall Thickness Material Head Finish
89mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel Carbon steel: Hot dip galvanized/E-coated and powder coated

Stainless steel: Satin polish
89mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
114mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
140mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
165mm 900mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 3mm Carbon steel Flat/Dome/Bevel
165mm 900mm 300mm 5mm Carbon steel Flat/Dome/Bevel
165mm 1200mm 300mm 5mm Carbon steel Flat/Dome/Bevel
219mm 900mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 3mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 900mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
219mm 1200mm 300mm 5mm Carbon steel/304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 3mm 304SS/316SS Flat/Dome/Bevel
168mm 900mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
168mm 1200mm 300mm 5mm 304SS/316SS Flat/Dome/Bevel
Remarks: Carbon steel is defaulted to Q235 Steel. For finish, for carbon steel, it is defaulted to hot - dip galvanizing or E-coated + powder coating; for stainless steel, it is defaulted to satin polishing.
Related Products
other product
Frequently Asked Questions (FAQ)
What is the standard material used for these fixed bollards?
Our heavy-duty model (KVS-M30-FB) is constructed from high-strength Q345 steel. Other related fixed bollards are manufactured using standard Q235 carbon steel, 304 stainless steel (304SS), or 316 stainless steel (316SS) based on your installation requirements.
What anti-collision rating do these fixed bollards offer?
The KVS-M30-FB model features a certified K4 anti-collision class rating. With a wall thickness of 20mm, a diameter of 273mm, and an inground depth structure, it provides high-impact resistance for security-sensitive sites.
What surface finishes are available for carbon steel and stainless steel bollards?
For carbon steel bollards, the default finish options are hot-dip galvanizing or E-coating combined with a durable powder coating. Stainless steel bollards are finished with a clean, modern satin polishing.
What choices do I have for the top head design of the bollards?
Our in-ground fixed bollards come with three primary head styling options: Flat head, Dome head, or Beveled head, allowing you to match the visual aesthetic of your surrounding architecture.
Can these bollards be installed in environments with high moisture?
Yes. Due to the high-grade materials like 304SS/316SS and the protective hot-dip galvanized finish on carbon steel variants, these bollards offer exceptional corrosion and rust resistance, making them ideal for outdoor and wet climates.
